Home
>>
Chevrolet
>>
1987
>>
Corsica L4-121 2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Idle Speed Control & Vehicle Data Sensors
Idle Speed Control & Vehicle Data Sensors

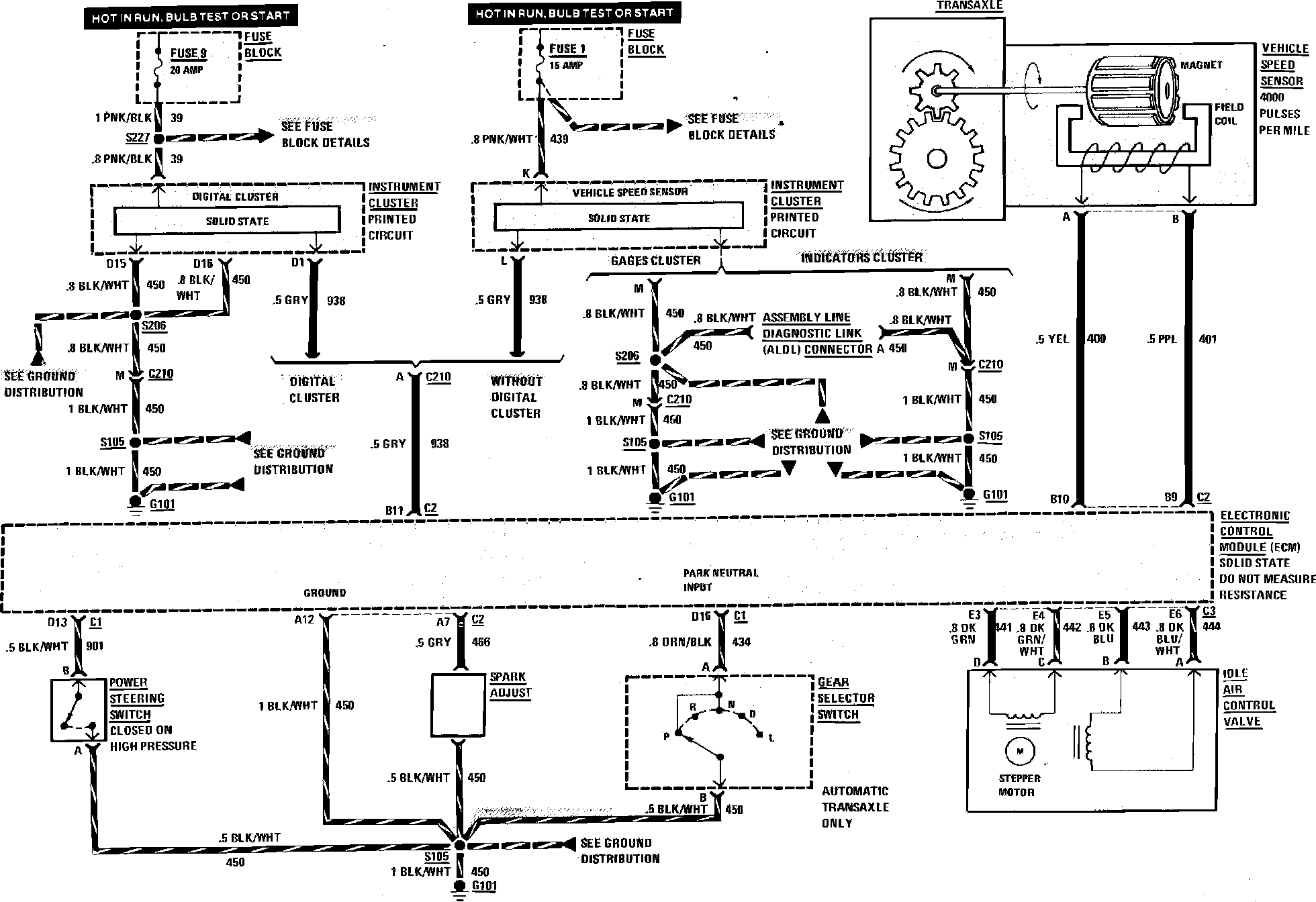

Electronic Fuel Injection Wiring Circuit Idle Speed Control & Vehicle Data Sensors:
