Direct Ignition System
Direct Ignition System
LH Front Of Engine.:

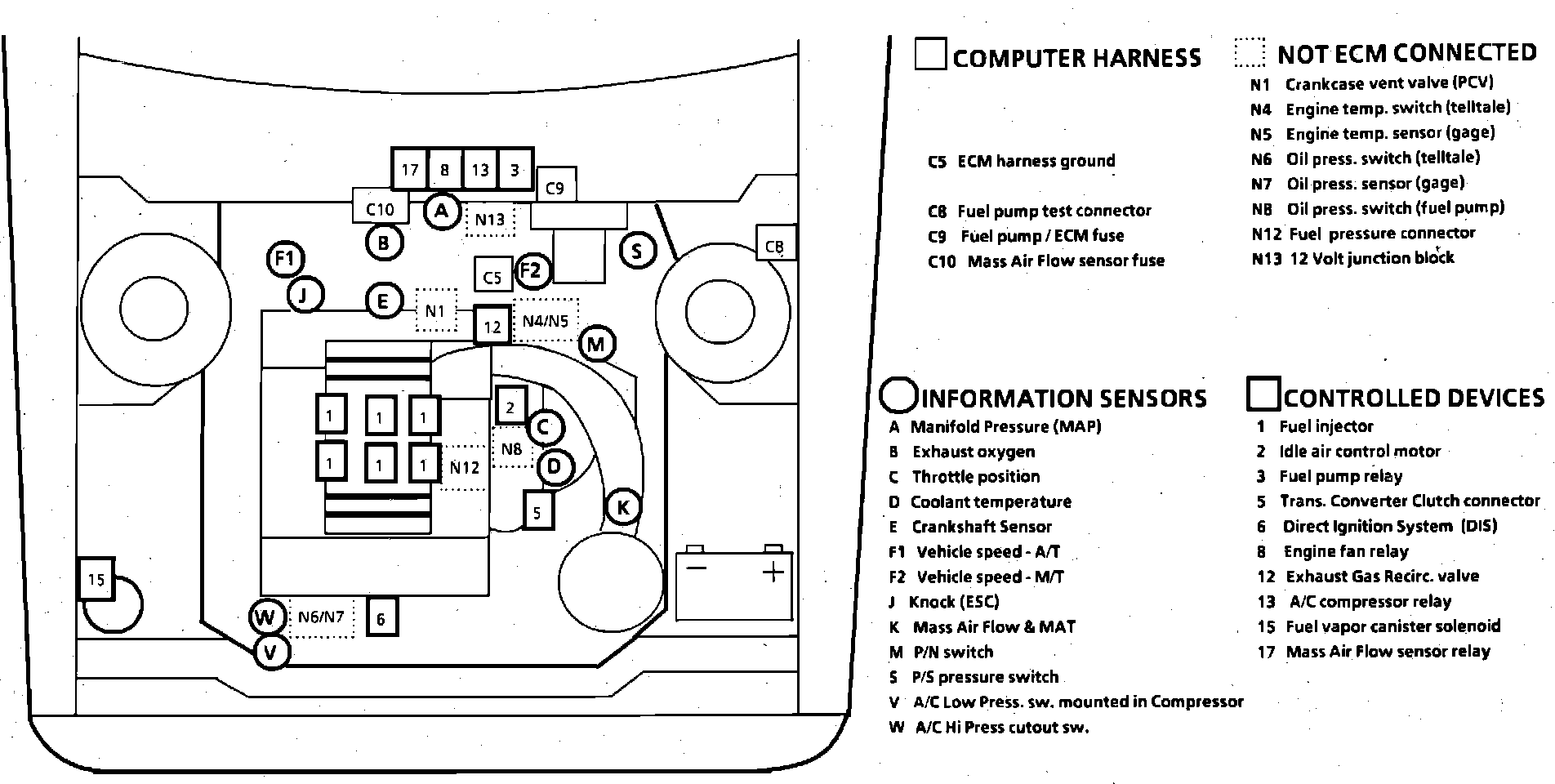

Engine & Underdash Components.:

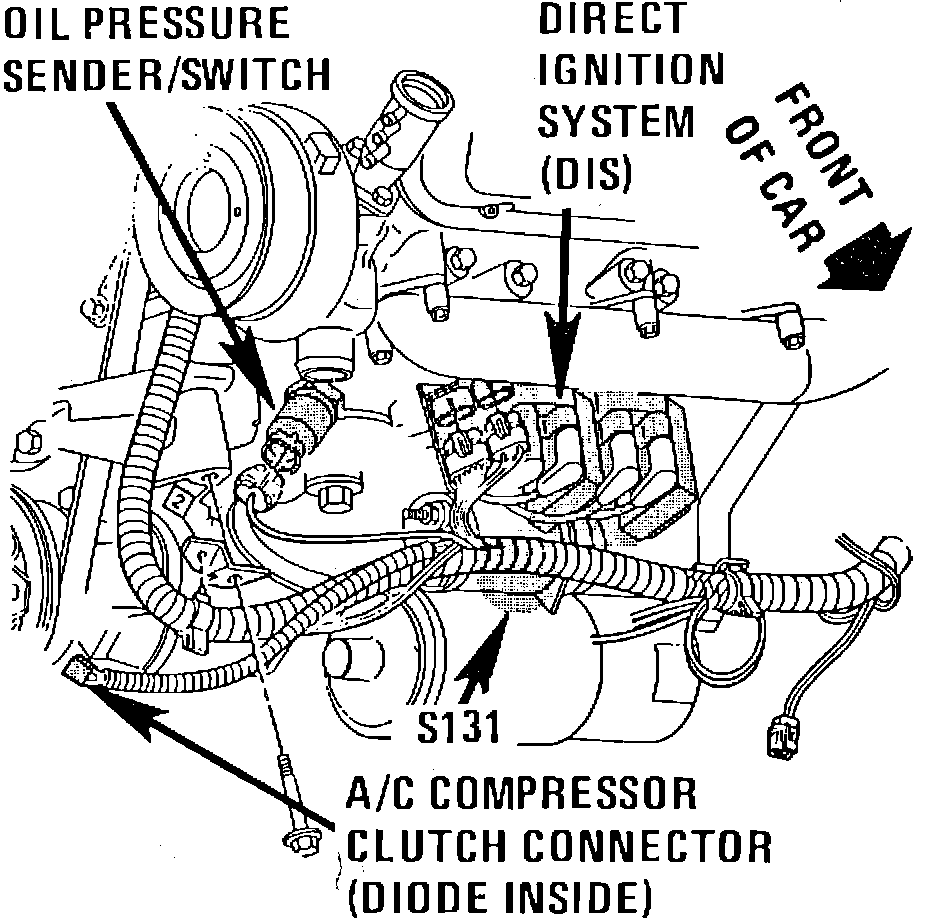

LH Front Of Engine
Applicable to: V6-173/2.8L
