Emission Control, Engine Data Sensors & Torque Converter Clutch
Emission Control, Engine Data Sensors & Torque Converter Clutch

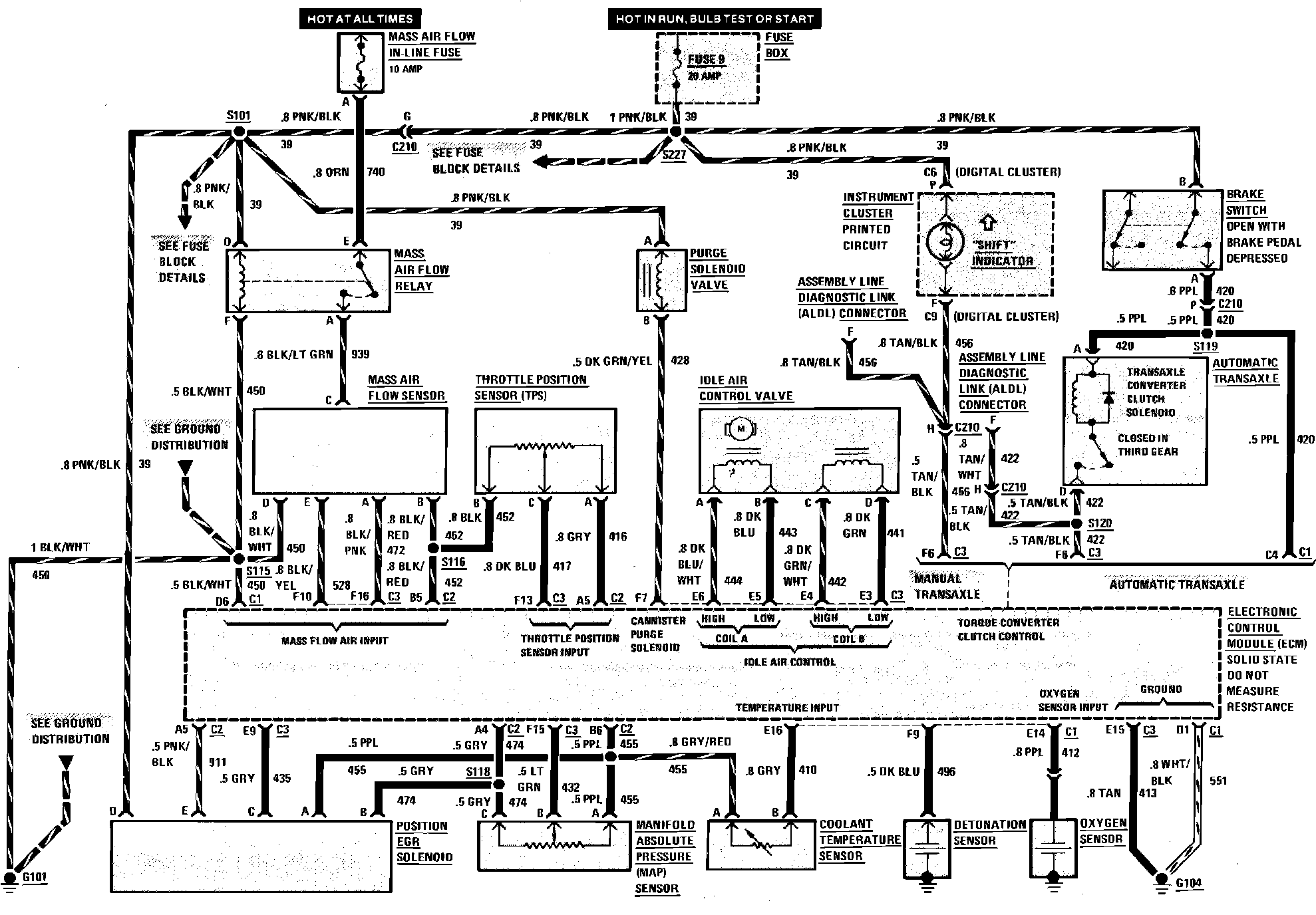

Multi-Port Fuel Injection Wiring Circuit Engine Data Sensors, Emission Control, Idle Air Control & Transaxle Converter Clutch:
