Ignition System & Service Engine Soon (SES) Indicator

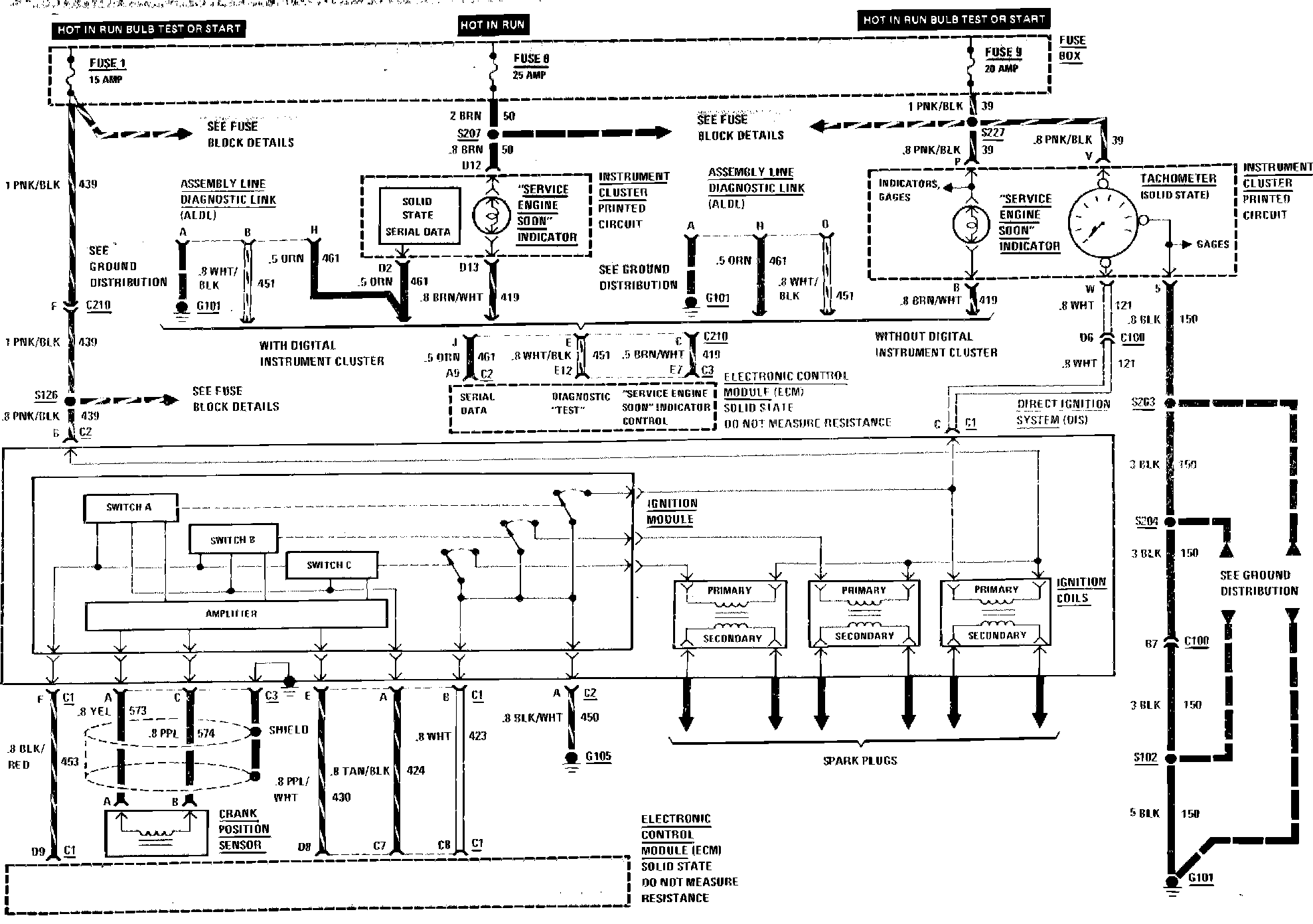

Multi-Port Fuel Injection Wiring Circuit Igniton & Service Engine Soon Indicator:
