Home >> Chevrolet >> 1987 >> Corsica V6-173 2.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

Dimension Specifications:

Continued Engine Specifications:

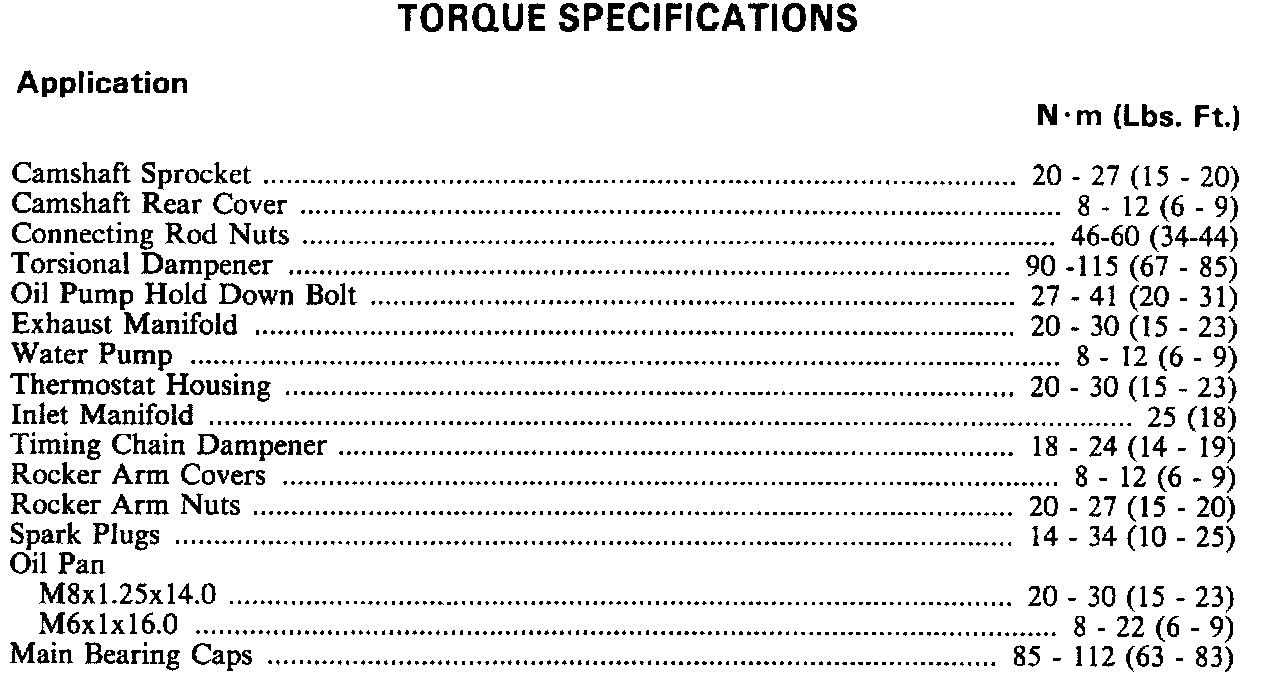

Torque Specifications:

Cylinder Head Sequence:
