Jump Start Junction Block

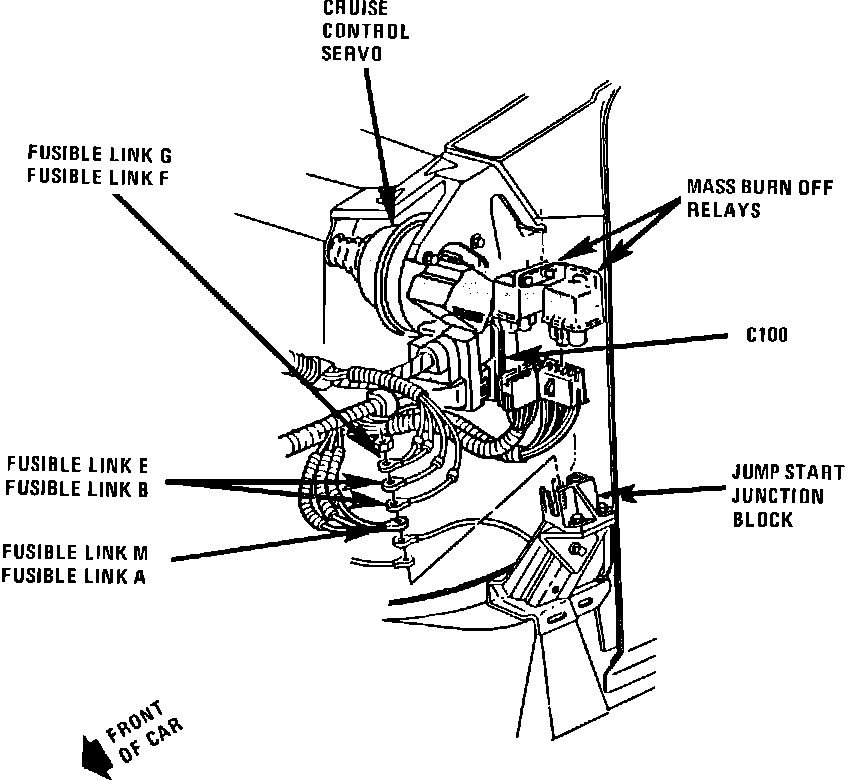

LH Rear Of Engine Compartment:




LH Rear Of Engine Compartment, Below Cruise Control Servo
