Detonation Sensor
Detonation Sensor
On ``B'' Pillar Above Driver's Seat:

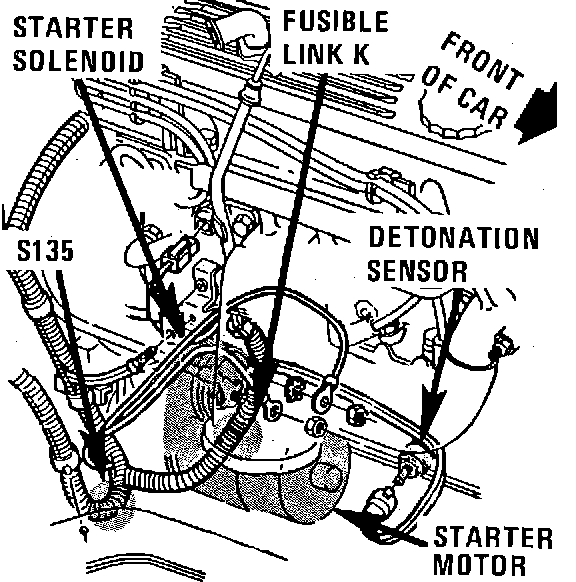

RH Side Of Engine, Ahead Of Starter
