Turn Signals

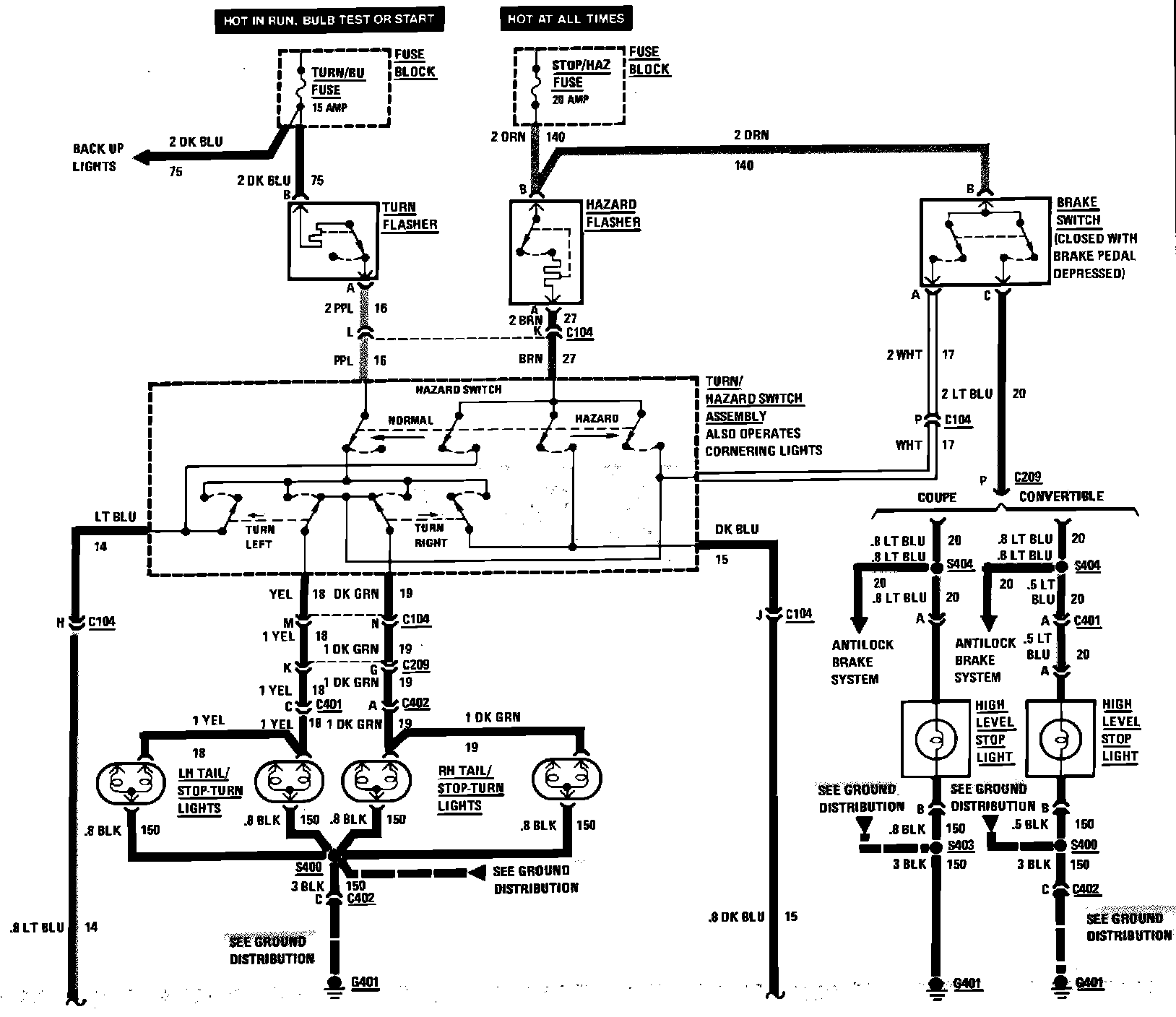

Hazard, Front Marker, Park, Stop & Turn Lamp Wiring Circuit:

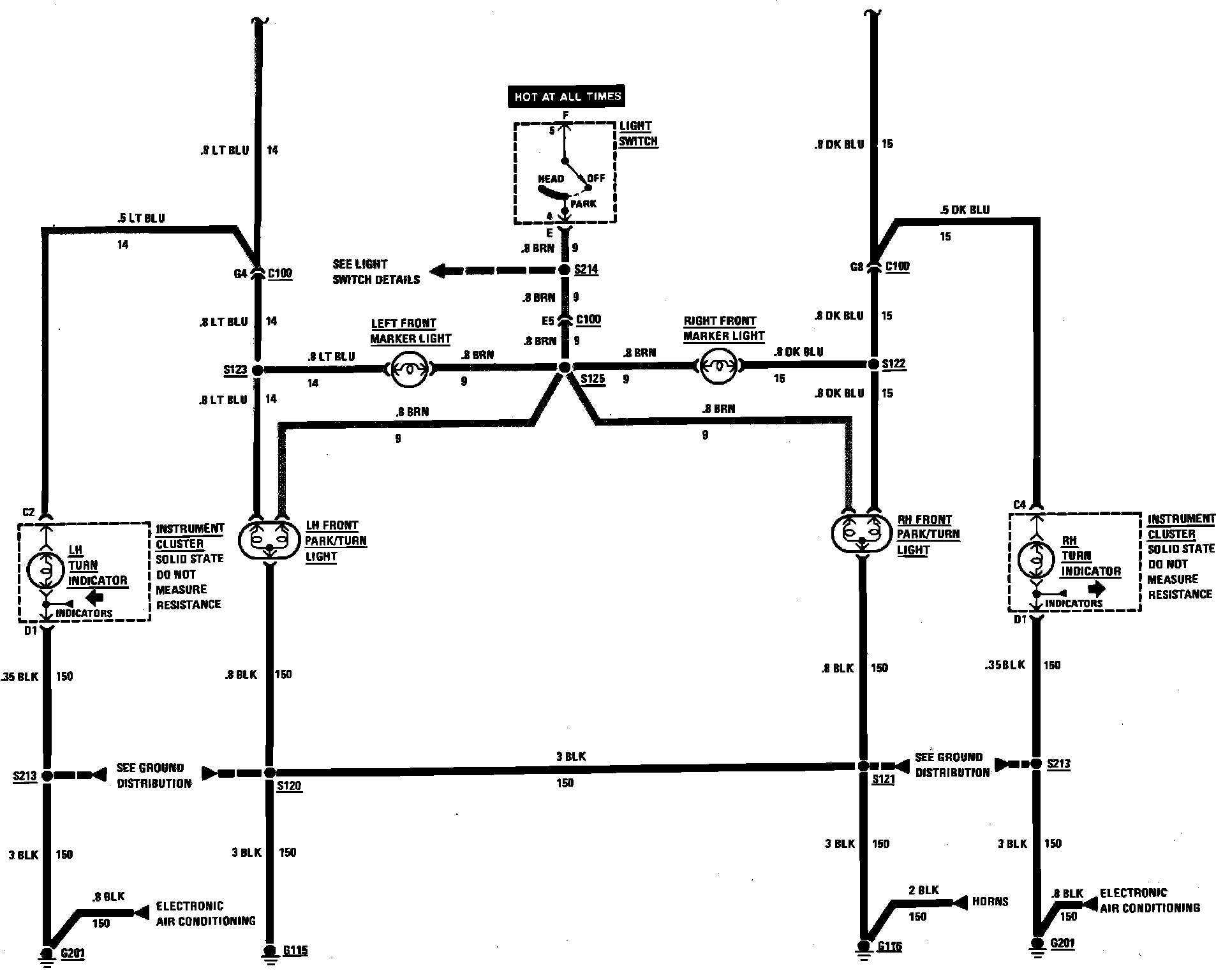

Hazard, Front Marker, Park, Stop & Turn Lamp Wiring Circuit:
