Convertible

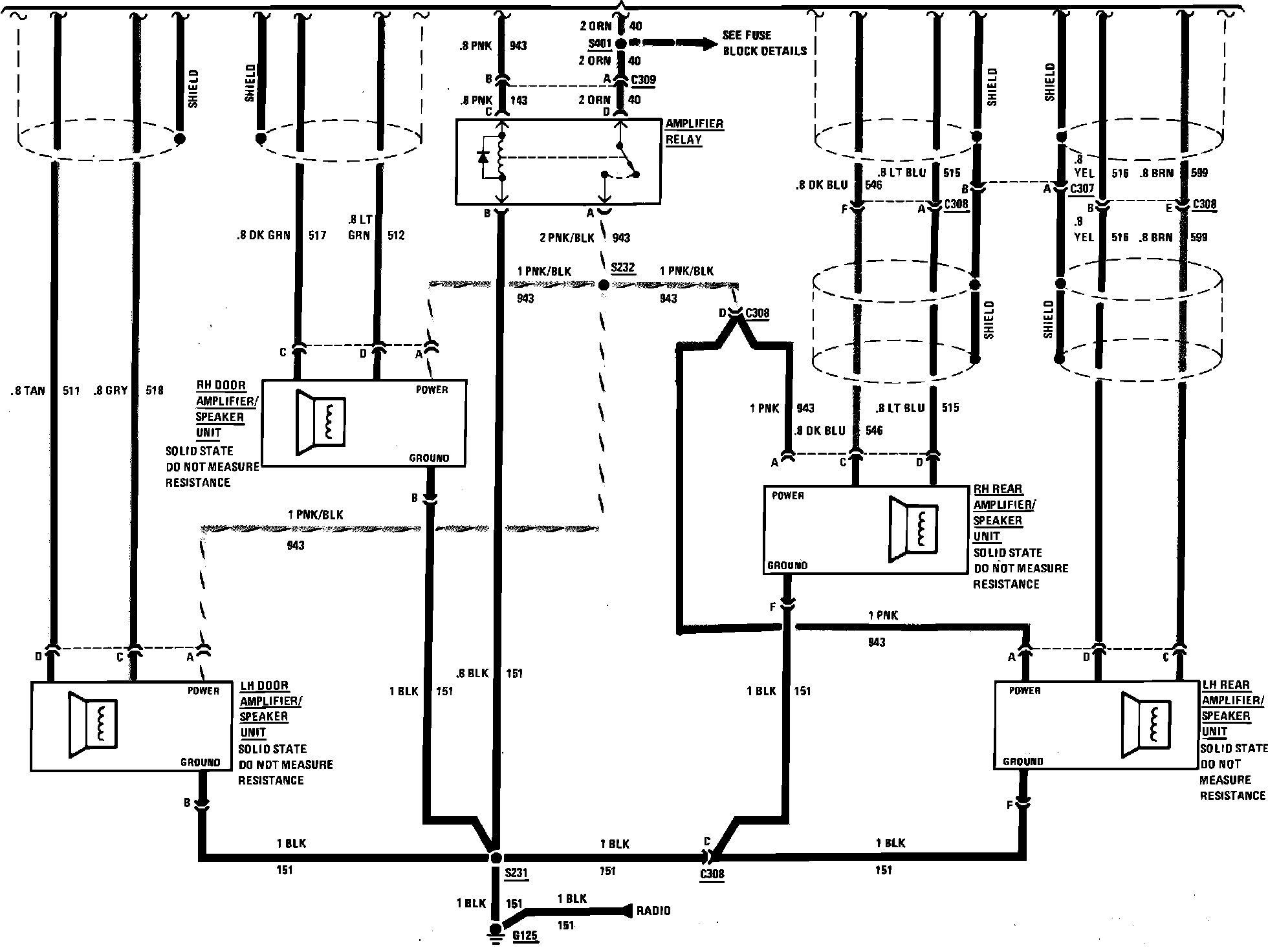

Radio & Speaker Wiring Circuit. W/Delco-Bose System:

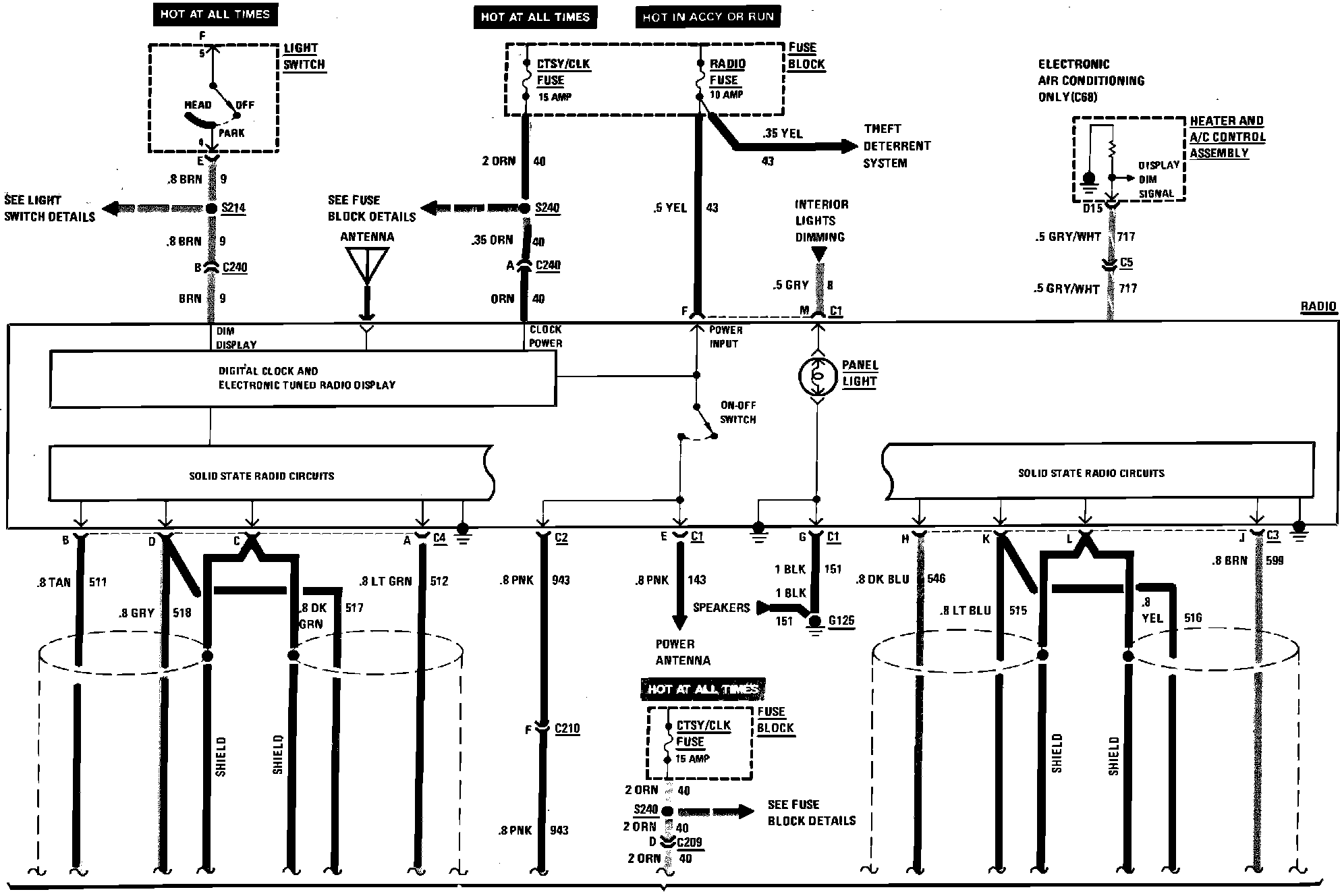

Radio & Speaker Wiring Circuit. W/Delco-Bose System:
