Lumbar Support LH Seat, Part 1 of 2
Lumbar Support LH Seat, Part 1 of 2

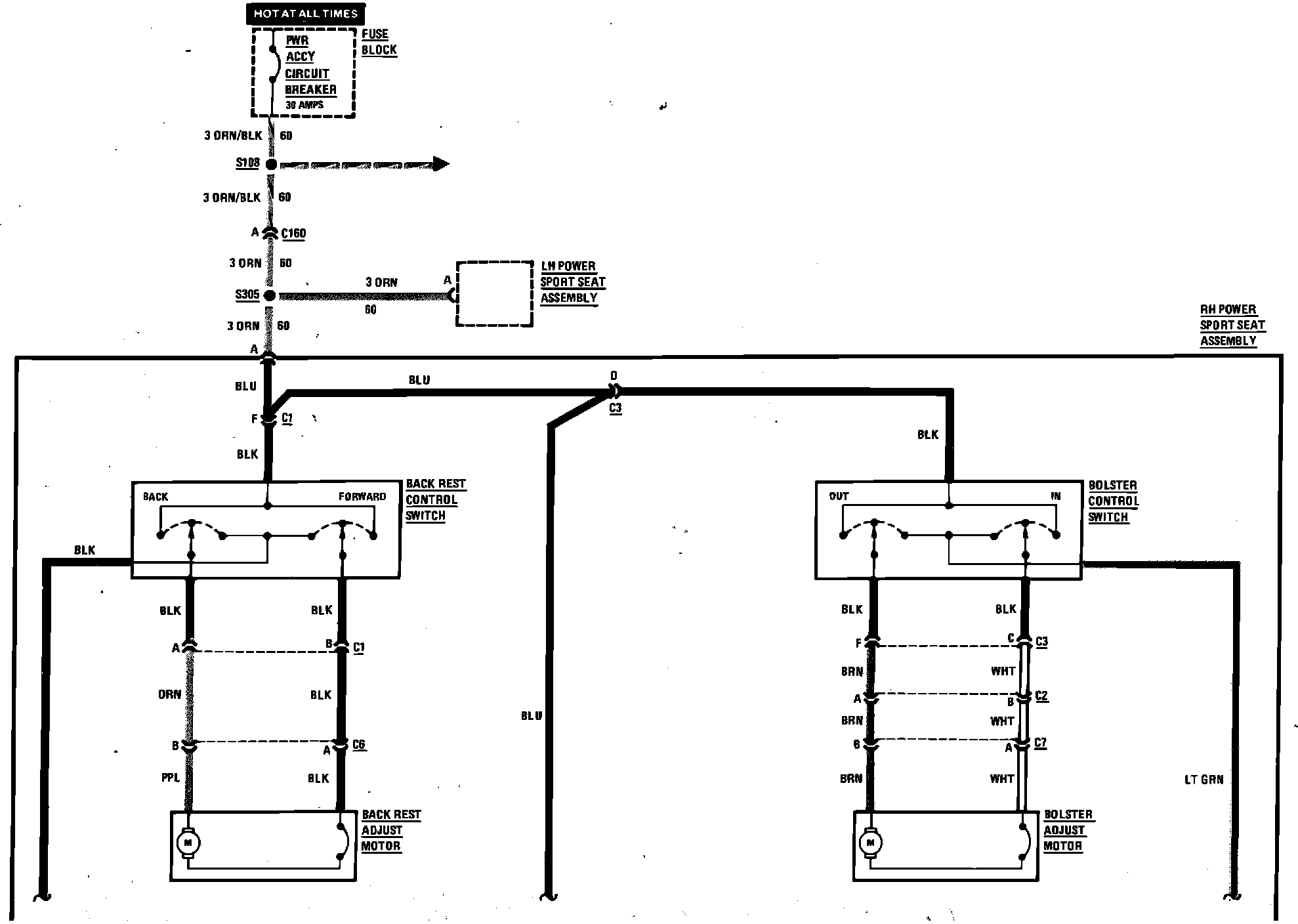

Lumbar Support RH Side Wiring Circuit (Part 1 of 2).:
