A/C Blower & Temperature Control
A/C Blower & Temperature Control

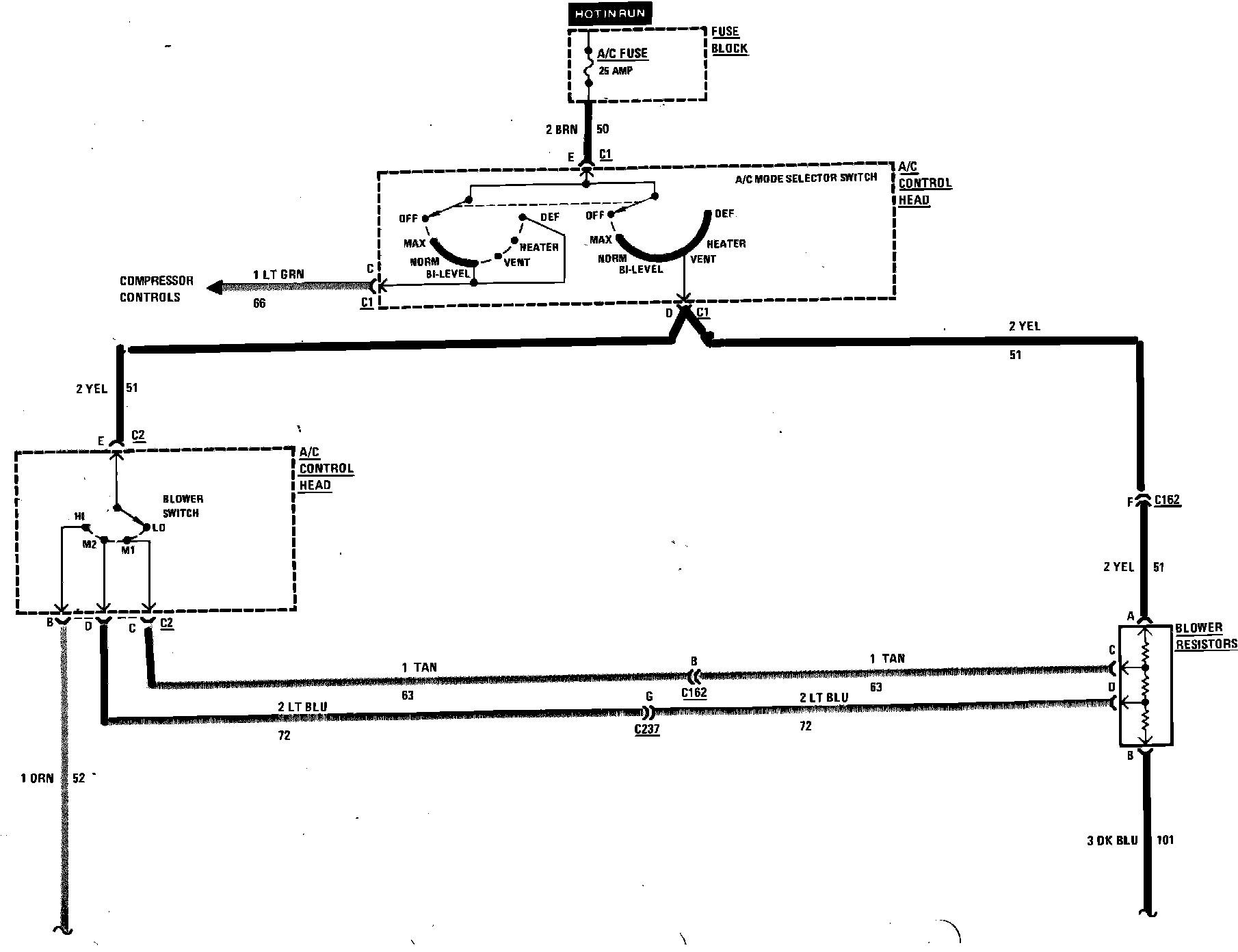

Air Conditioning Blower Control Wiring Circuit (Part 1 of 2). W/Manual A/C:

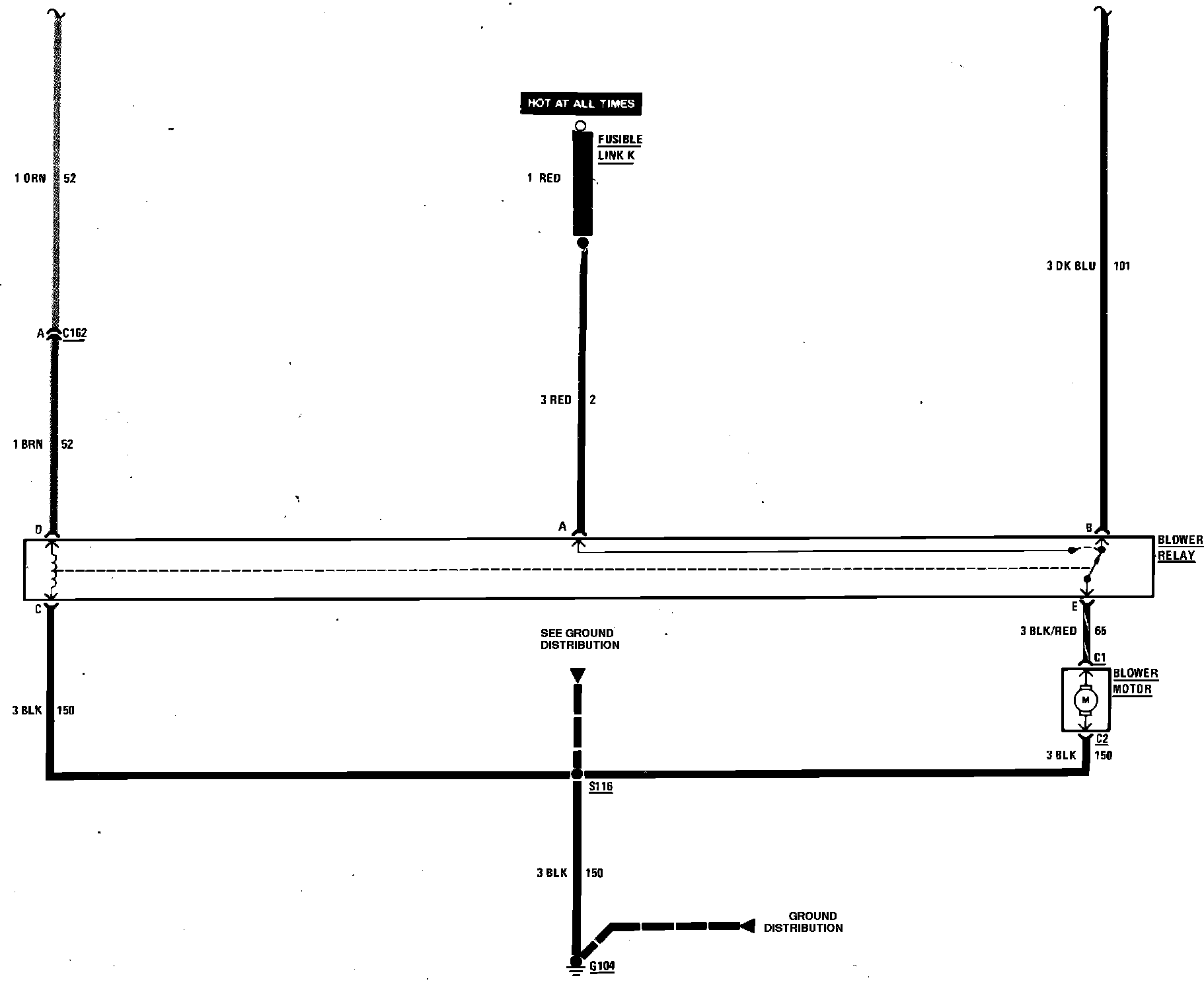

Air Conditioning Blower Control Wiring Circuit (Part 2 of 2). W/Manual A/C:
