Temperature Controls

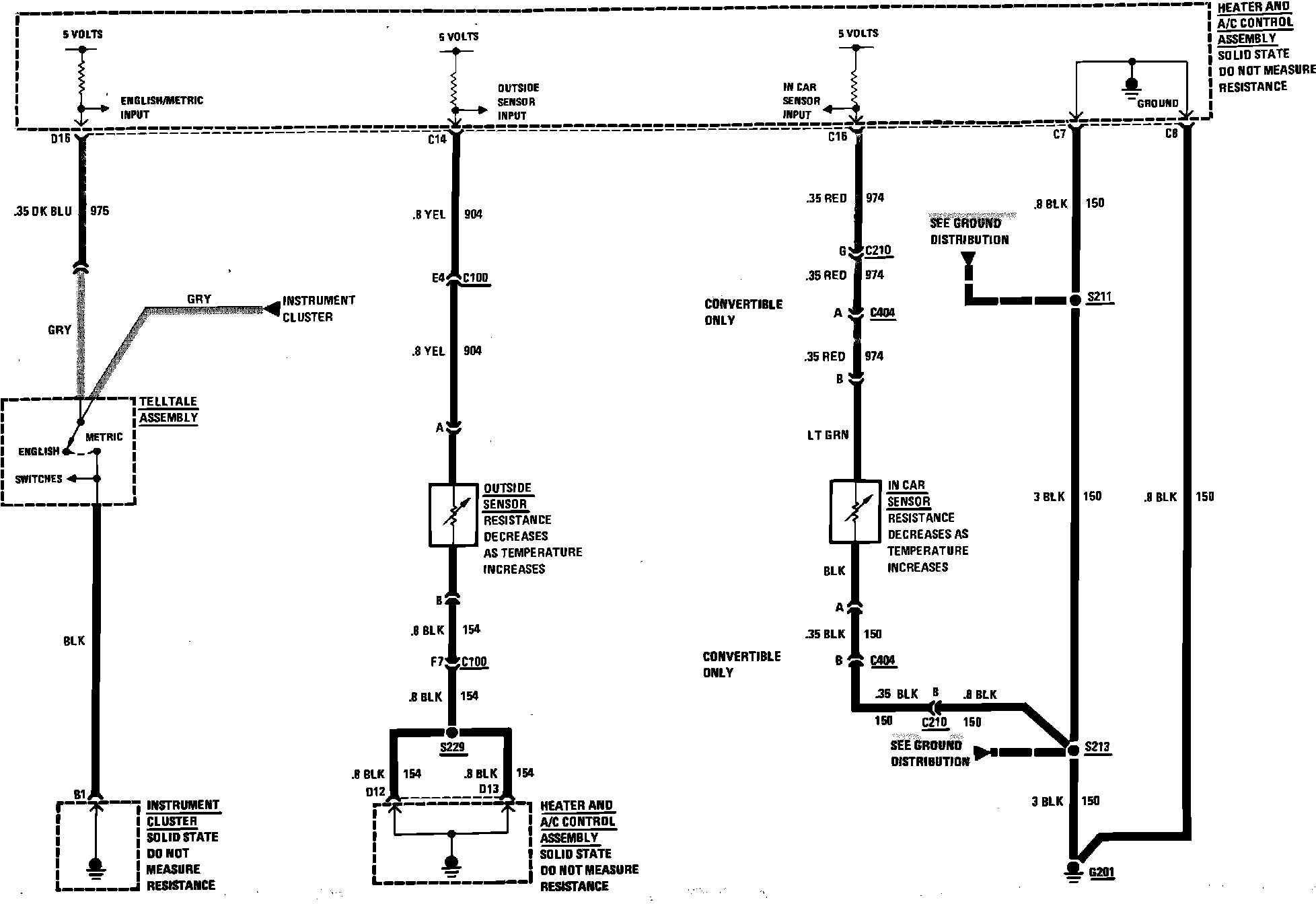

A/C & Heater Temperature Control Wiring Circuit. W/Electronic Control:
A/C & Heater Temperature Control Wiring Circuit. W/Electronic Control:
