Turn Signals

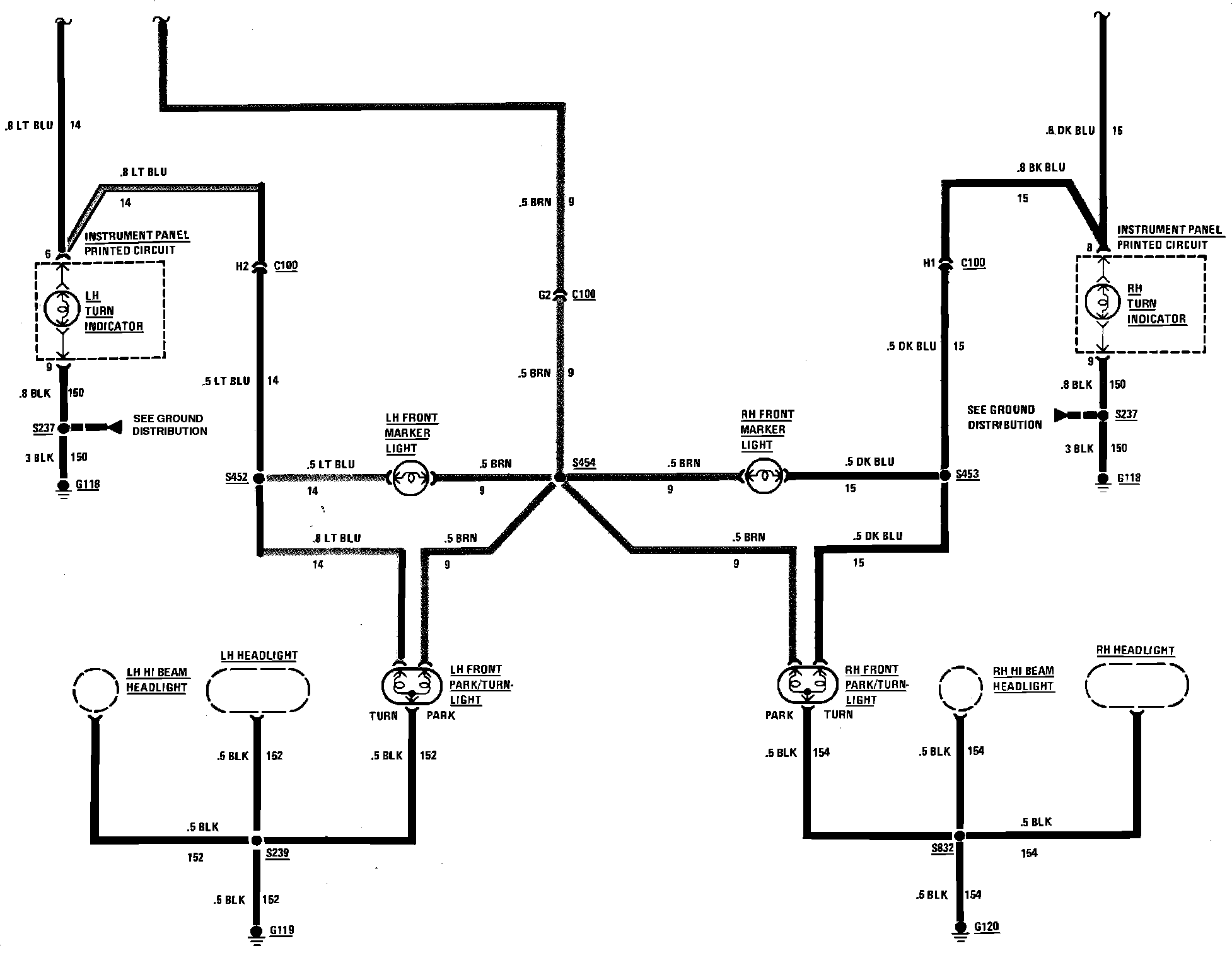

Exterior Lamps Wiring Circuit (Ft Marker, Hazard, Parking, Stop & Turn):



Exterior Lamps Wiring Circuit (Ft Marker, Hazard, Parking, Stop & Turn):
