Vehicle Sensors & Torque Converter Clutch (TCC)

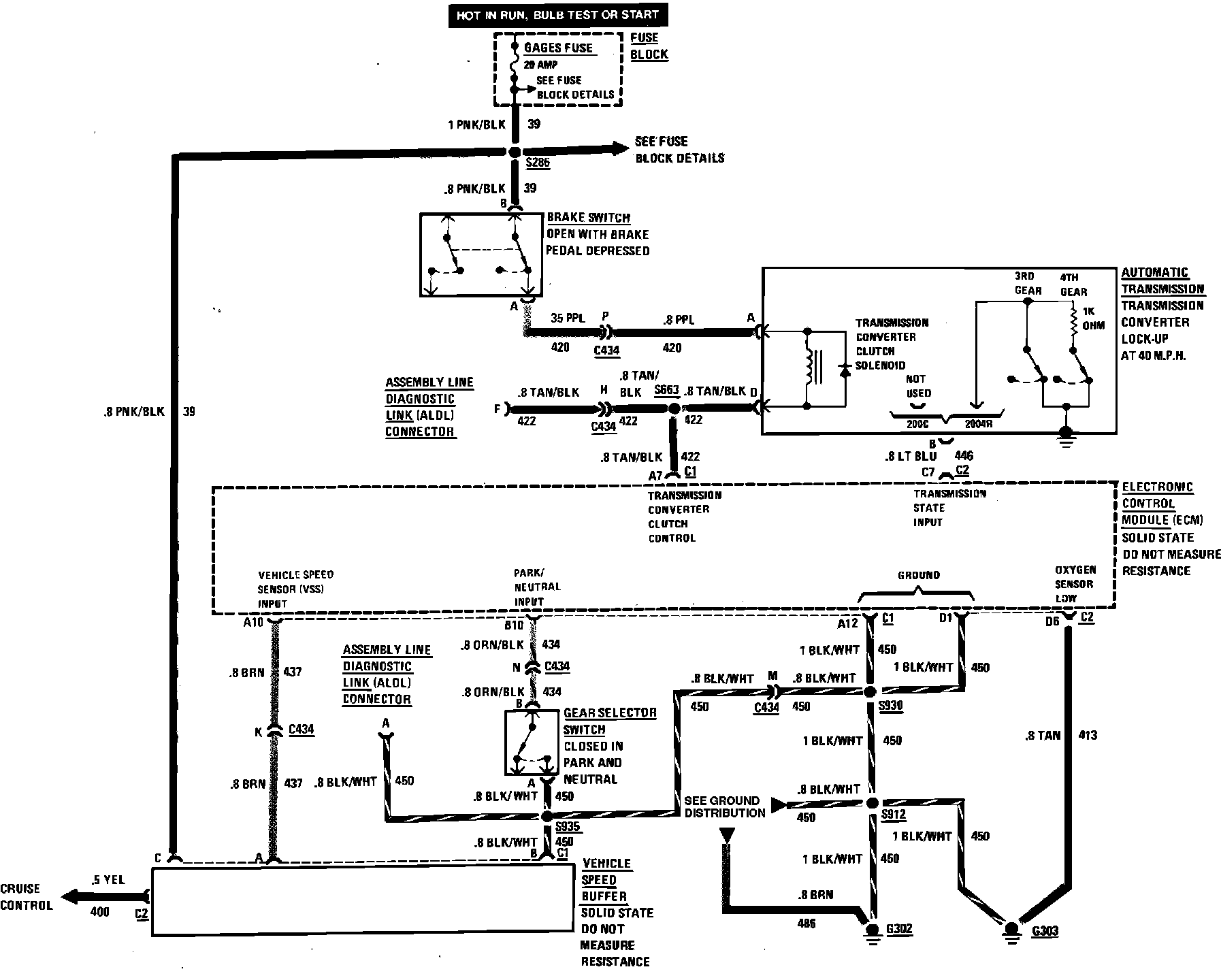

Throttle Body Fuel Injection Wiring Circuit (Vehicle Sensors & Torque Converter Clutch):
