Hatchback

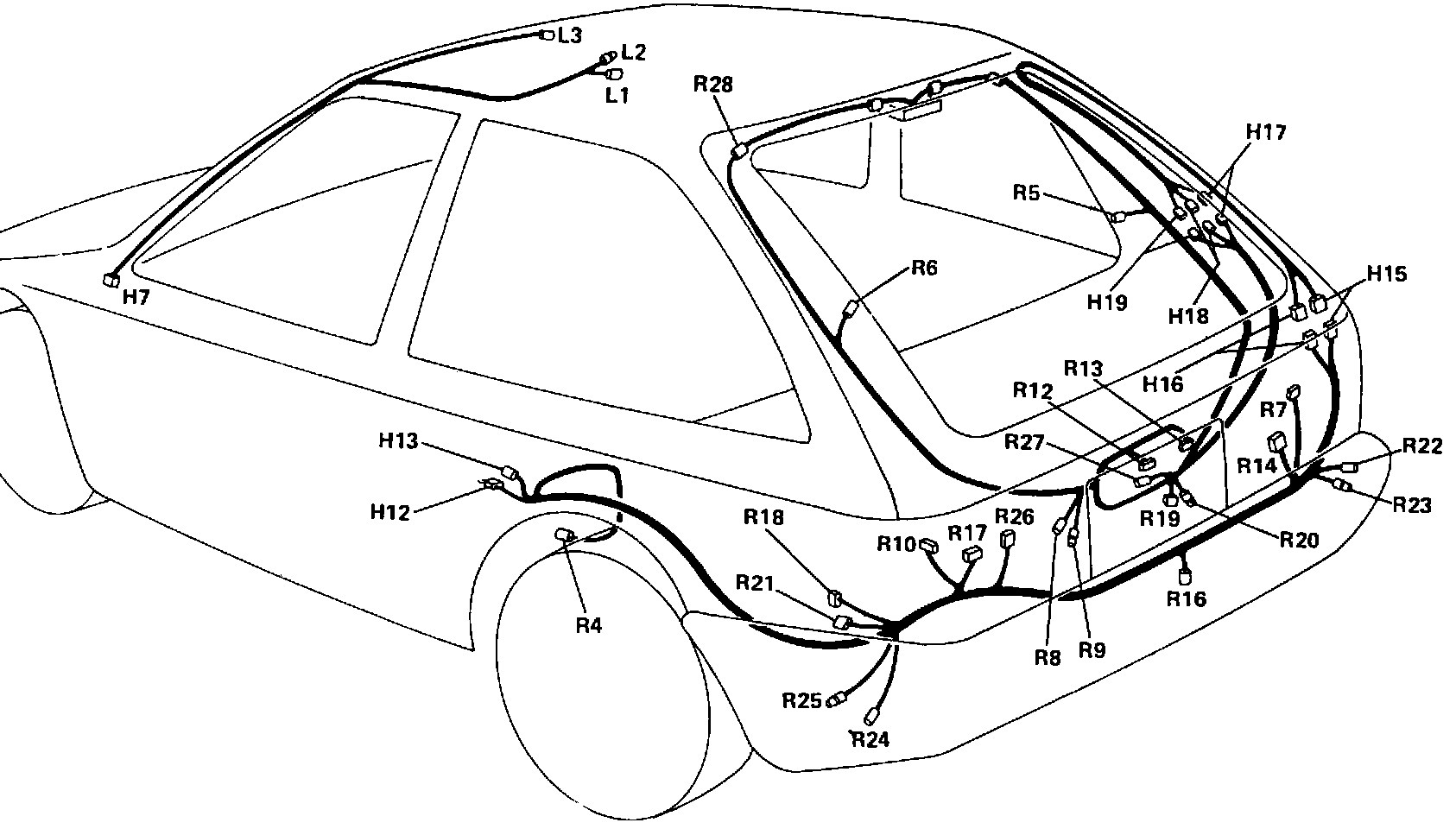

Body Wiring:

CONNECTORS


H7: RH front Fender, near Firewall
H12 & H13: LH side of Luggage Compartment
H15 & H16: RH side of Luggage Compartment
H17 to H19: RH rear Hatch Column

L1 to L3: RH side of Roof

R4: LH side of Luggage Compartment
R5: RH rear Hatch Column
R6: LH rear Hatch Column
R7: RH side of Luggage Compartment
R8 & R9: Rear center of Luggage Compartment
R10: LH side of Luggage Compartment
R12 & R13: Center of Luggage Compartment
R14: RH side of Luggage Compartment
R16: Center of Luggage Compartment
R17 & R18: LH side of Luggage Compartment
R19 & R20: Rear center of Luggage Compartment
R21: LH side of Luggage Compartment
R23: RH side of Luggage Compartment
R24 to R26: LH side of Luggage Compartment
R27: Rear of Luggage Compartment
R28: LH top Hatch Lid
