Home >> Chevrolet >> 1987 >> Spectrum-Import L4-91.5 1509cc 1.5L Turbo VIN 9 FI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams

Electrical Diagrams

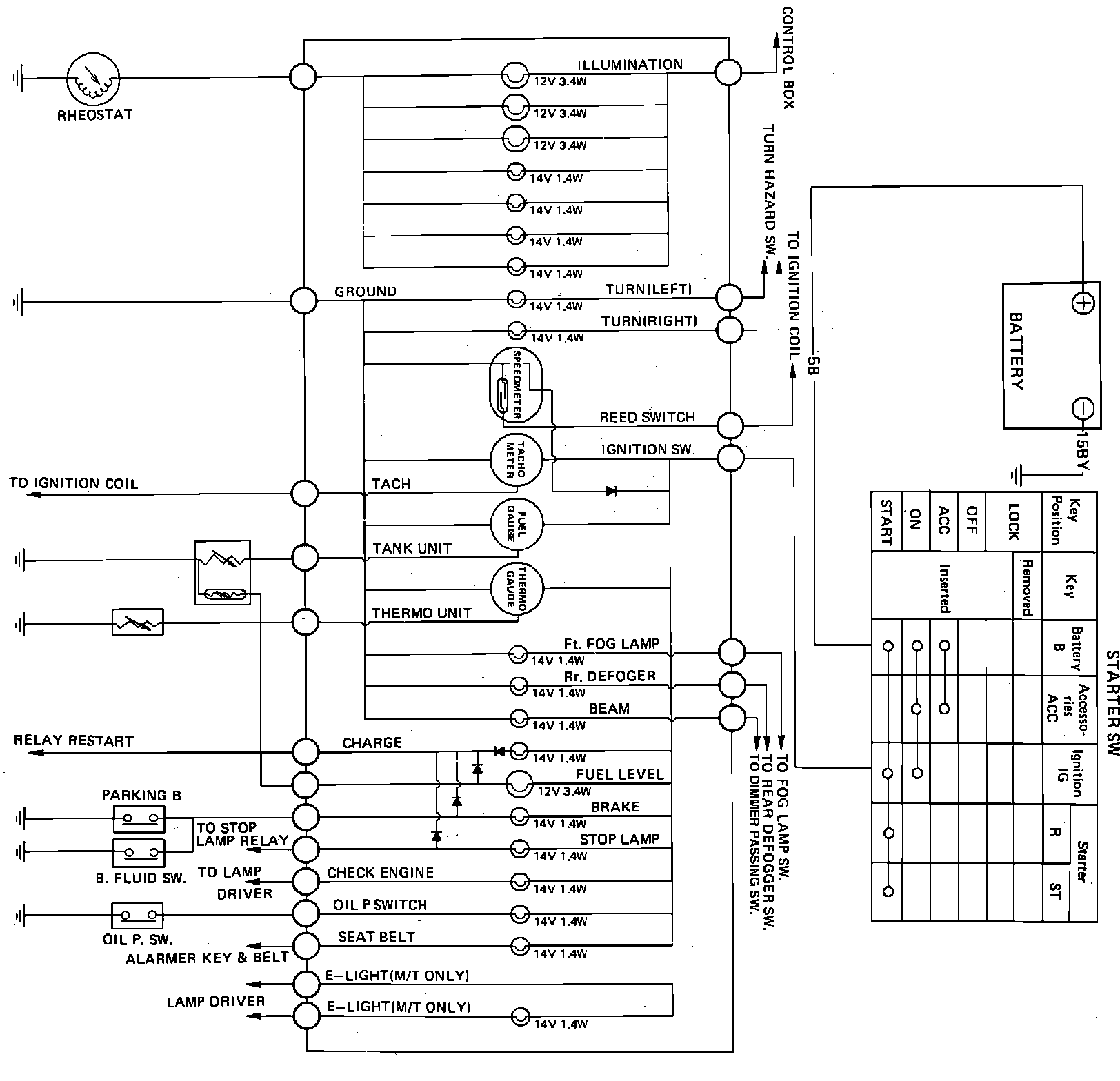

Fig. 021 Illumination Lamp & Meter Wiring Circuit. Non-Turbocharged Models:
