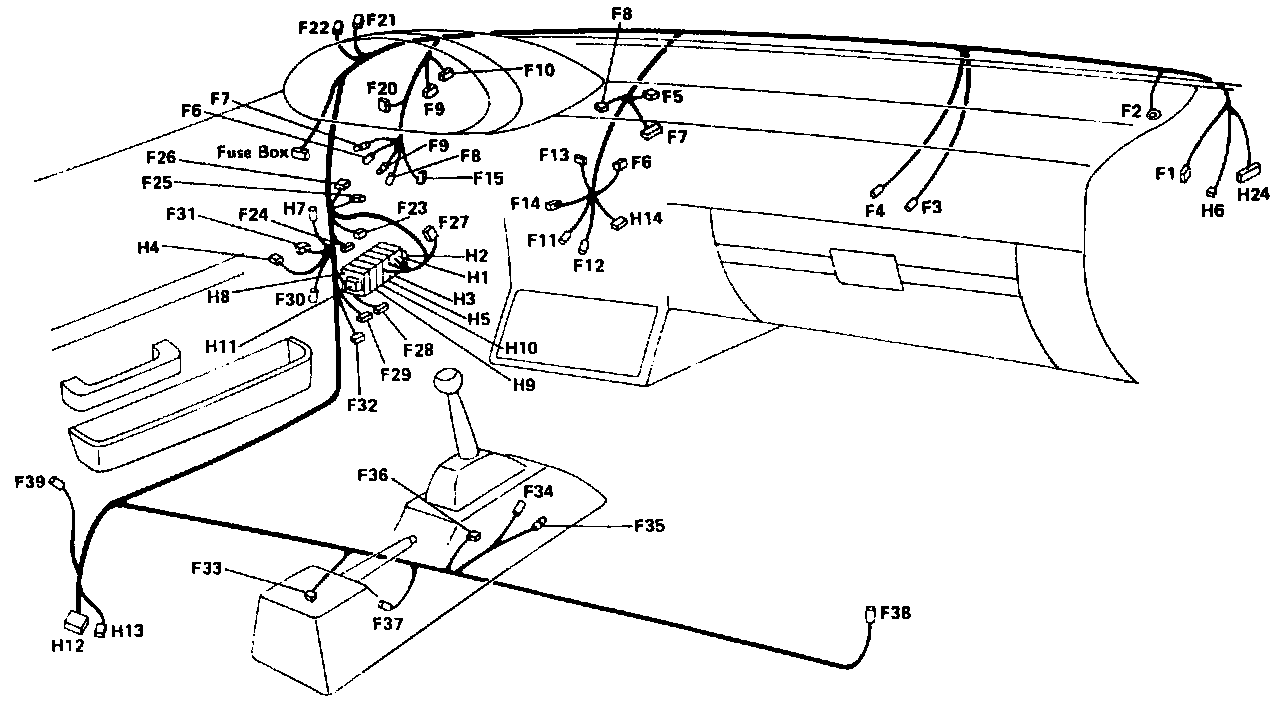

Dash Wiring

I/P Wiring:

CONNECTORS

F1: RH side of I/P
F3 & F4: RH side of I/P
F5 to F8: Center of I/P
F9 & F10: LH side of I/P
F11 to F14: Center of I/P
F15 to F31: LH side of I/P
F33 to F37: Center Console
F38: Under RH Passenger Seat
F39: LH Door

H1 to H5: LH side of I/P
H6: RH side of I/P
H7: LH side of I/P
H8 to H11: LH side of I/P
H14: Center of I/P
H24: RH side of I/P

GROUNDS

F2: RH side of I/P
