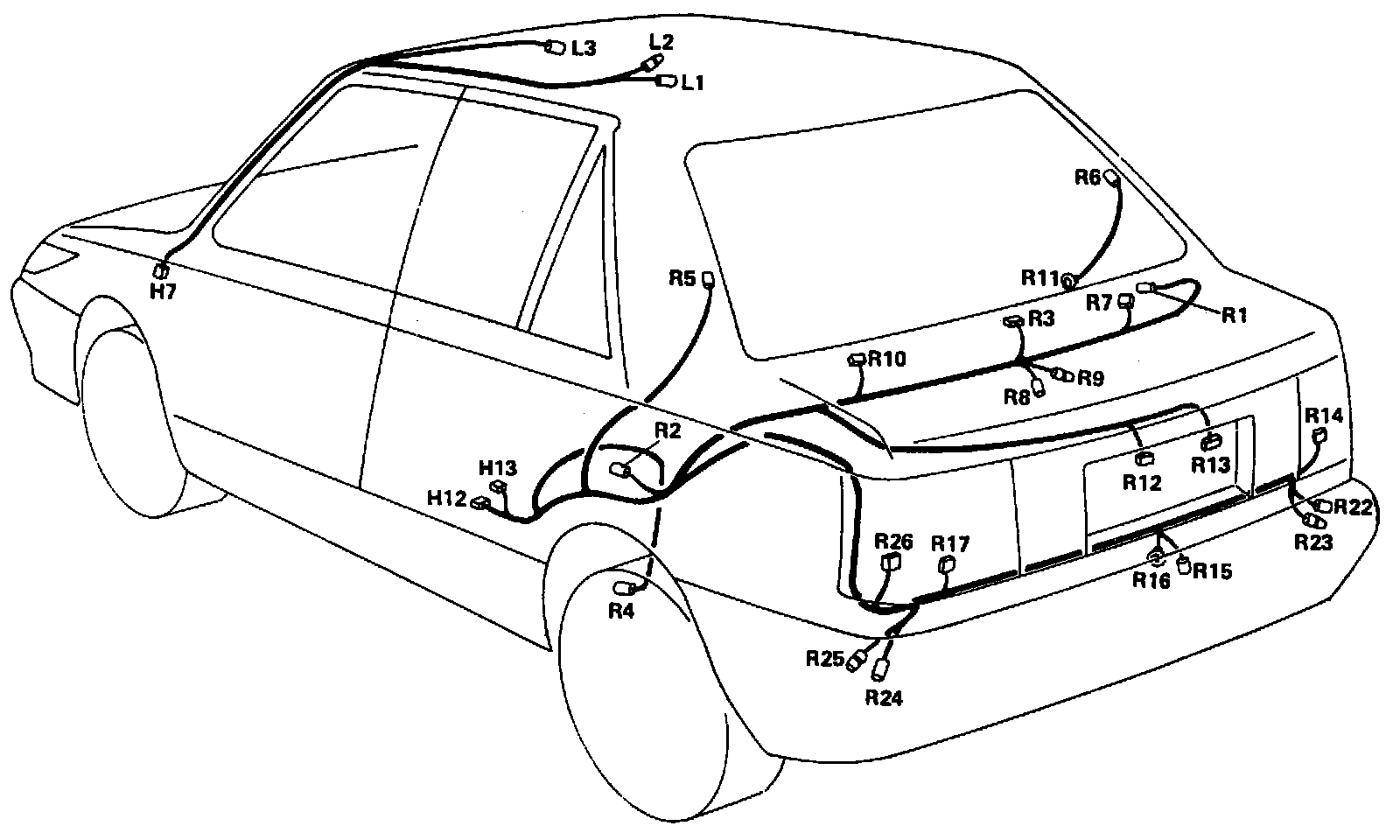

Notchback

Body Wiring:

CONNECTORS

H7: LH front Fender, near Firewall
H12 & H13: LH side of Luggage Compartment

L1 to L3: LH side of Roof

R1: RH side of Luggage Compartment
R2: LH side of Luggage Compartment
R3: Center of Luggage Compartment
R5: LH rear of Roof Column
R6: RH rear of Roof Column
R9: Center of Luggage Compartment
R10: LH side of Luggage Compartment
R12 & R13: Center of Luggage Compartment
R14: RH side of Luggage Compartment
R15 & R16: Center of Luggage Compartment
R17: LH side of Luggage Compartment
R22 & R23: RH side of Luggage Compartment
R24 to R26: LH side of Luggage Compartment

GROUNDS

R11: Rear Center of Luggage Compartment
