Home >> Chevrolet >> 1987 >> Spectrum-Import L4-91.5 1509cc 1.5L VIN 7 2-bbl >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications

Engine: Specifications

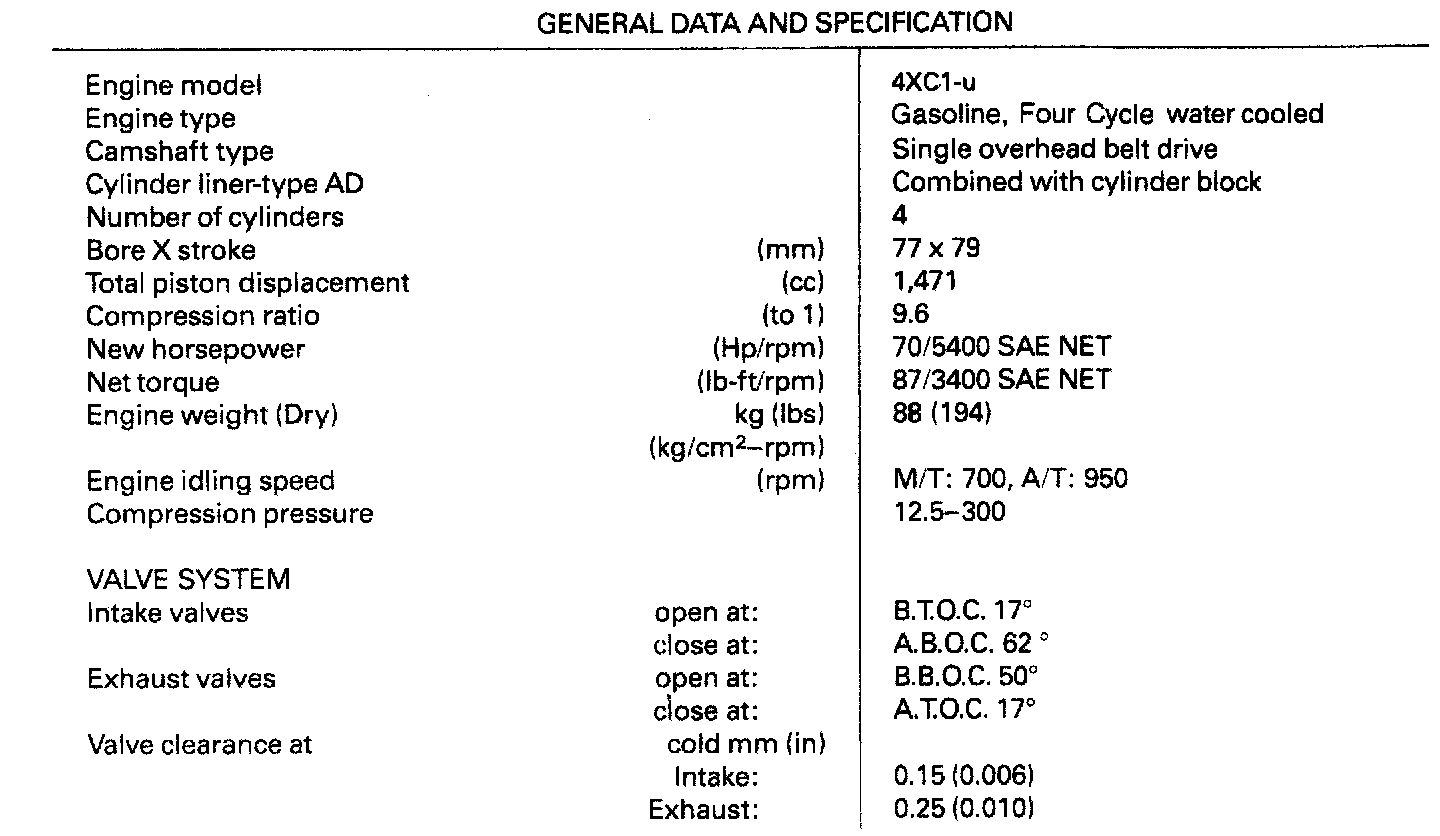

Engine Specifications:






Cylinder Head Sequence:
