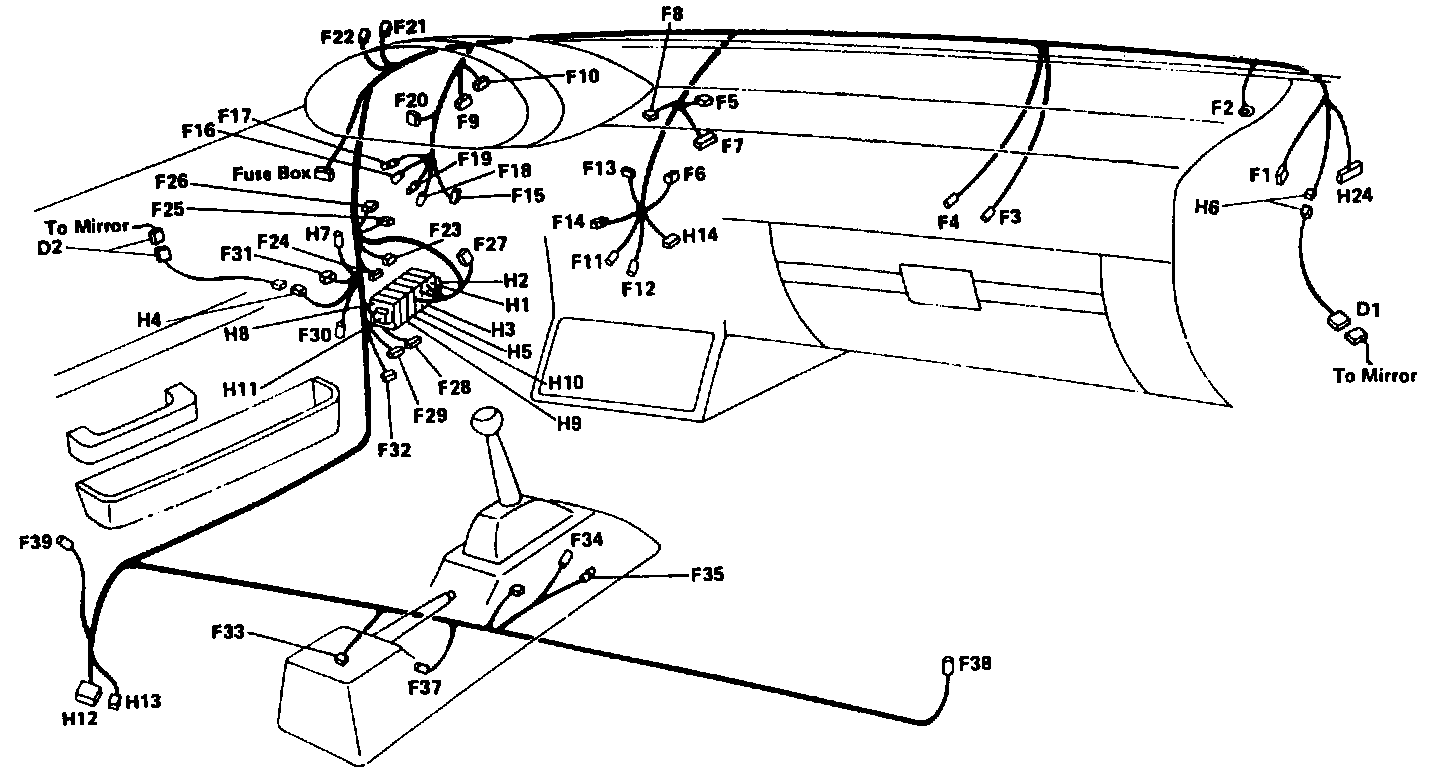

Dash Wiring

Dash Wiring:

CONNECTORS

D1: RH side of I/P
D2: LH side of I/P

F1 to F4: RH side of I/P
F5 to f8: Center of I/P
F9 & F10: LH side of I/P
F11 to F14: Center of I/P
F15 to F31: LH side of I/P
F33 to F37: Center Console
F38: Under RH Passenger Seat
F39: LH Door

H1 to H5: LH side of I/P
H6: RH side of I/P
H7 to H11: LH side of I/P
H12 & H13: LH side of Luggage Compartment
H14: LH side of I/P
H24: RH side of I/P
