Brake Lamp
Brake Lamp

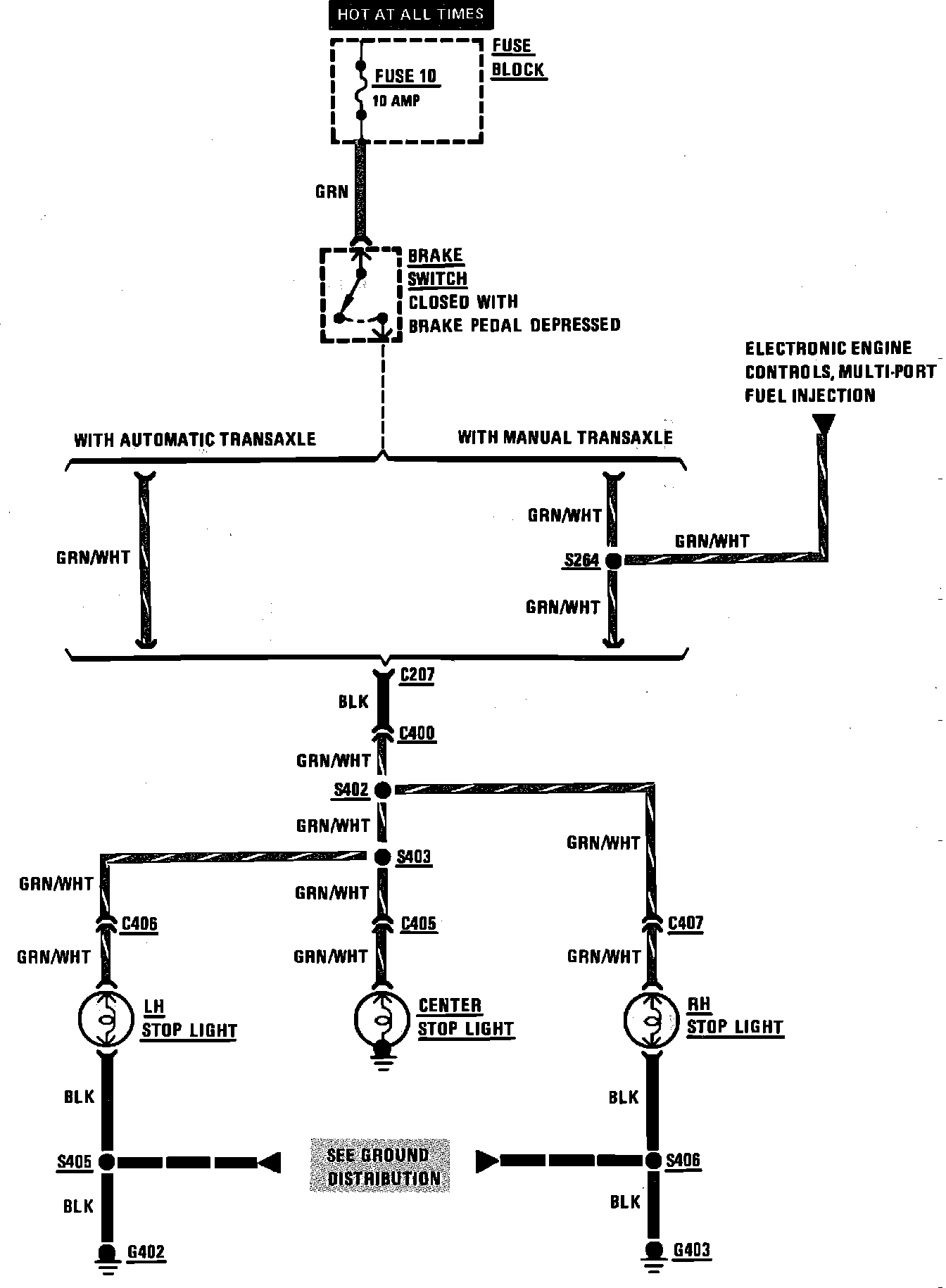

Fig. 43a Stop Lamps Wiring Circuit (W/Cruise):
Fig. 43b Stop Lamps Wiring Circuit (W/O Cruise):
