Cruise Control - Revised Wiring Schematic

88chevy27

Number: 88-332-9B

Section: 9B

Date: AUGUST, 1988
Subject: SERVICE MANUAL SUPPLEMENT: CRUISE CONTROL CIRCUIT WIRING SCHEMATIC


Model and Year: 1987-88 TURBO SPRINT



TO: ALL CHEVROLET DEALERS

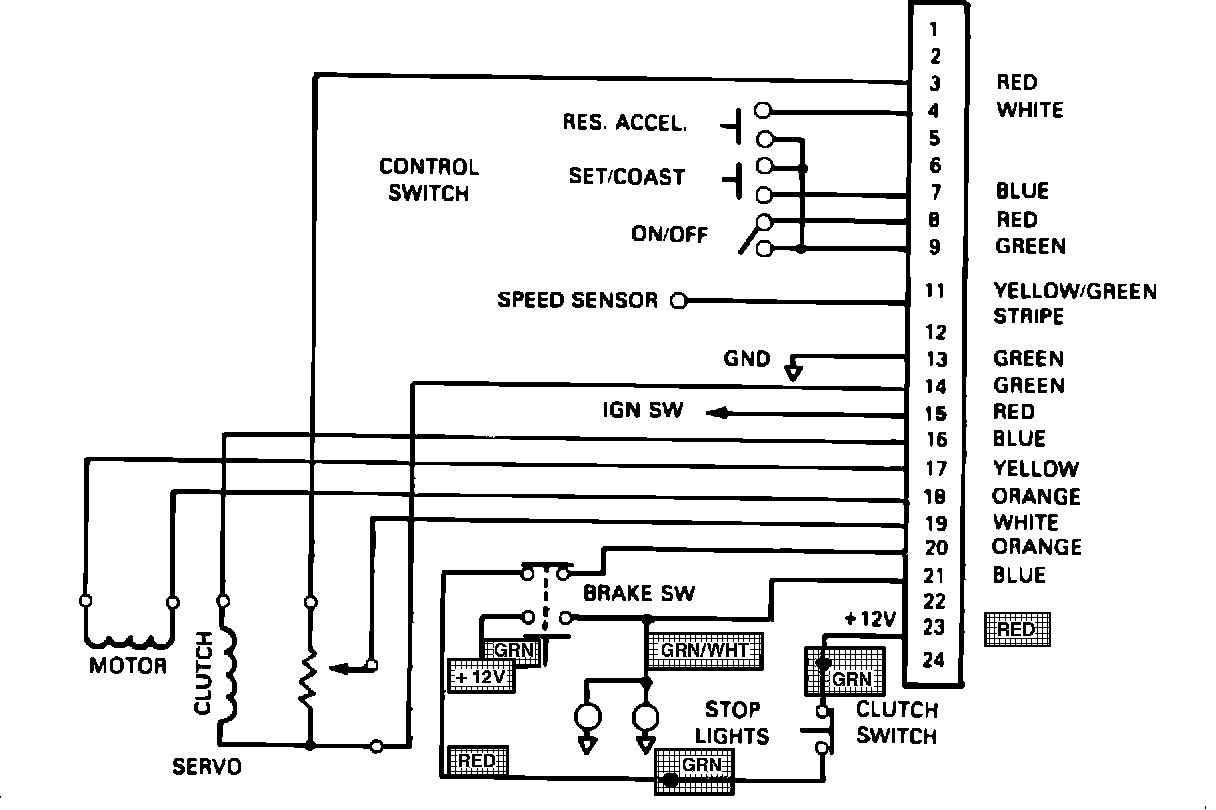

This bulletin is being written to revise the wiring schematic for the 1987-88 Turbo Sprint with manual transaxle. The wiring schematic shown below revises the schematic shown on page 9B-1 of the 1987 Sprint Service Manual Supplement covering Turbo Engines (ST370-87T).

The wiring color changes are screened for your reference.
