Oxygen Sensor
Oxygen Sensor

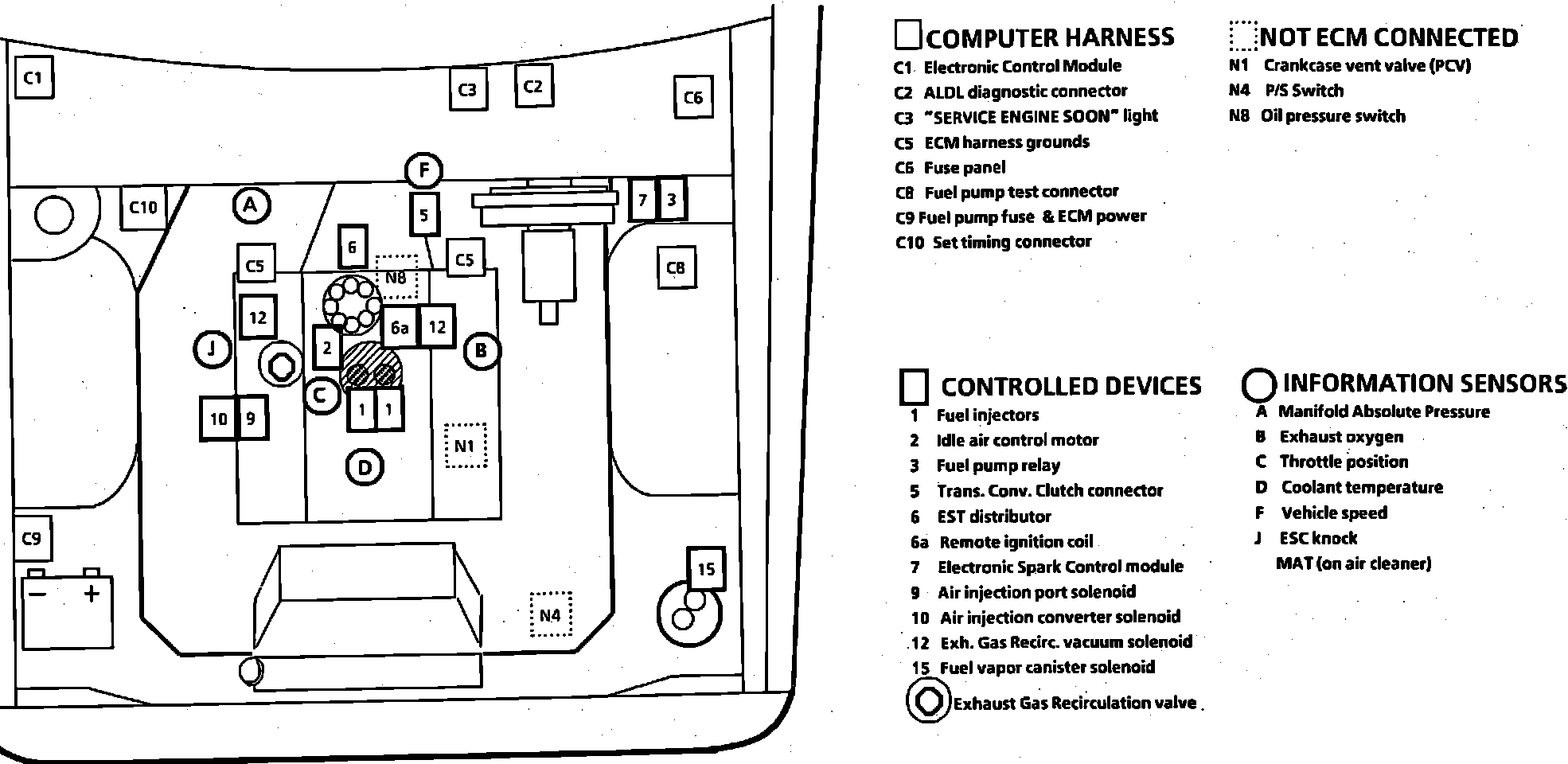

Underhood Components.:
Lower LH Side Of Engine, On Exhaust Manifold
Applicable to: V8-305/5.0L (VIN E) Engine
