Delco-Bose W/Amplified Speaker System
Delco-Bose W/Amplified Speaker System

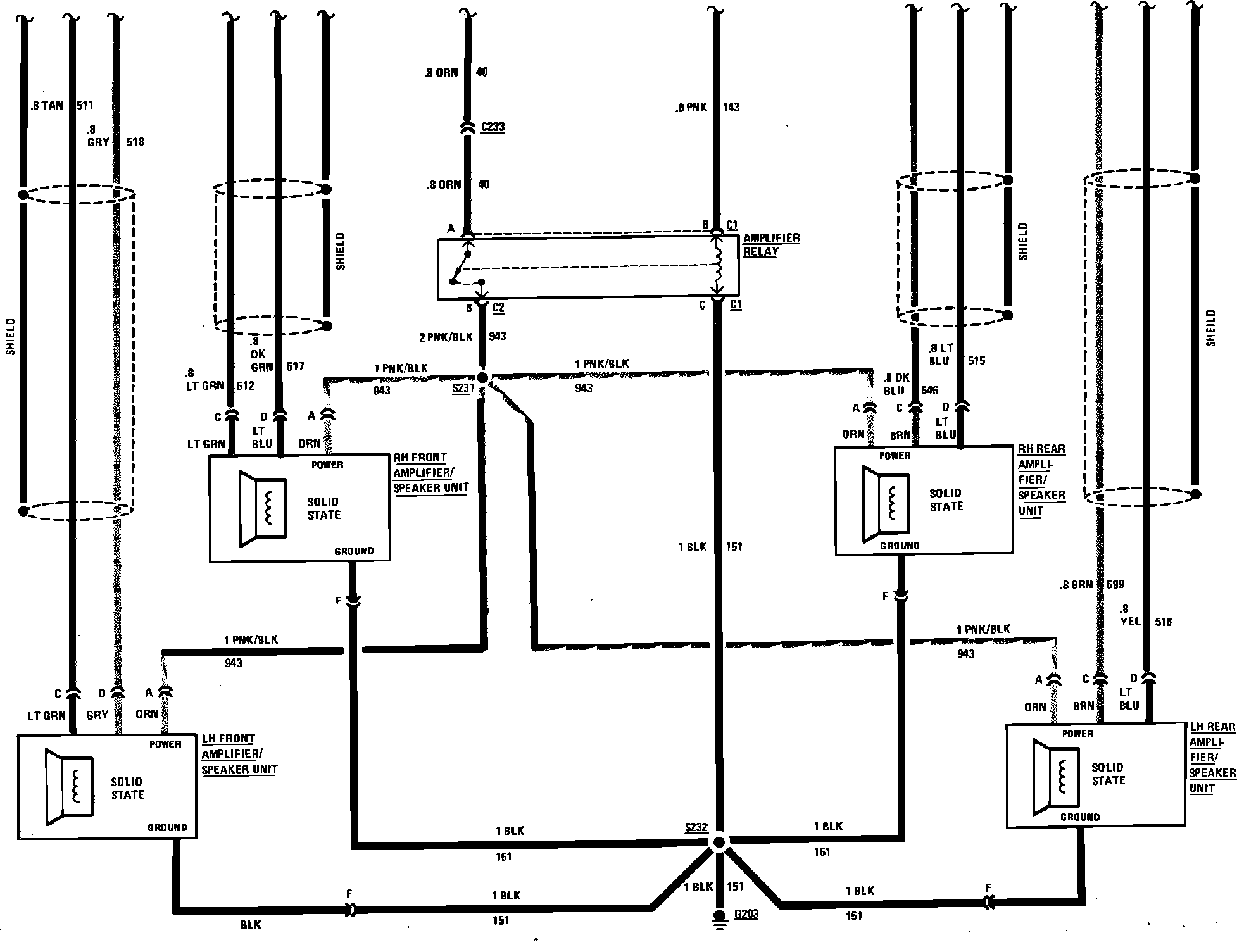

Delco-Bose W/Amplified Speaker System:

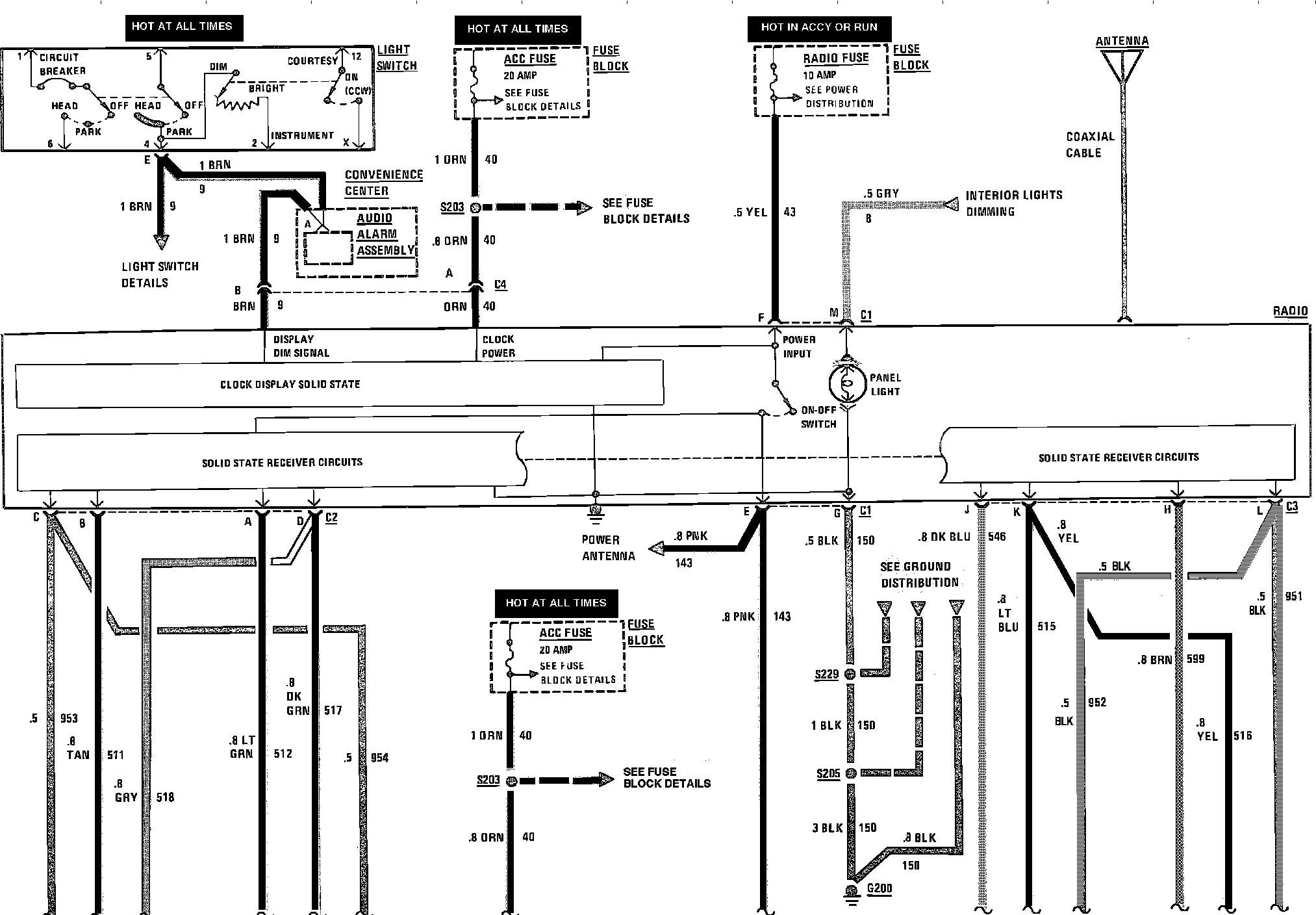

Radio Wiring Circuit (Delco-Bose W/Amplified Speaker System):
