Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Calif (VIN E)
Calif (VIN E)

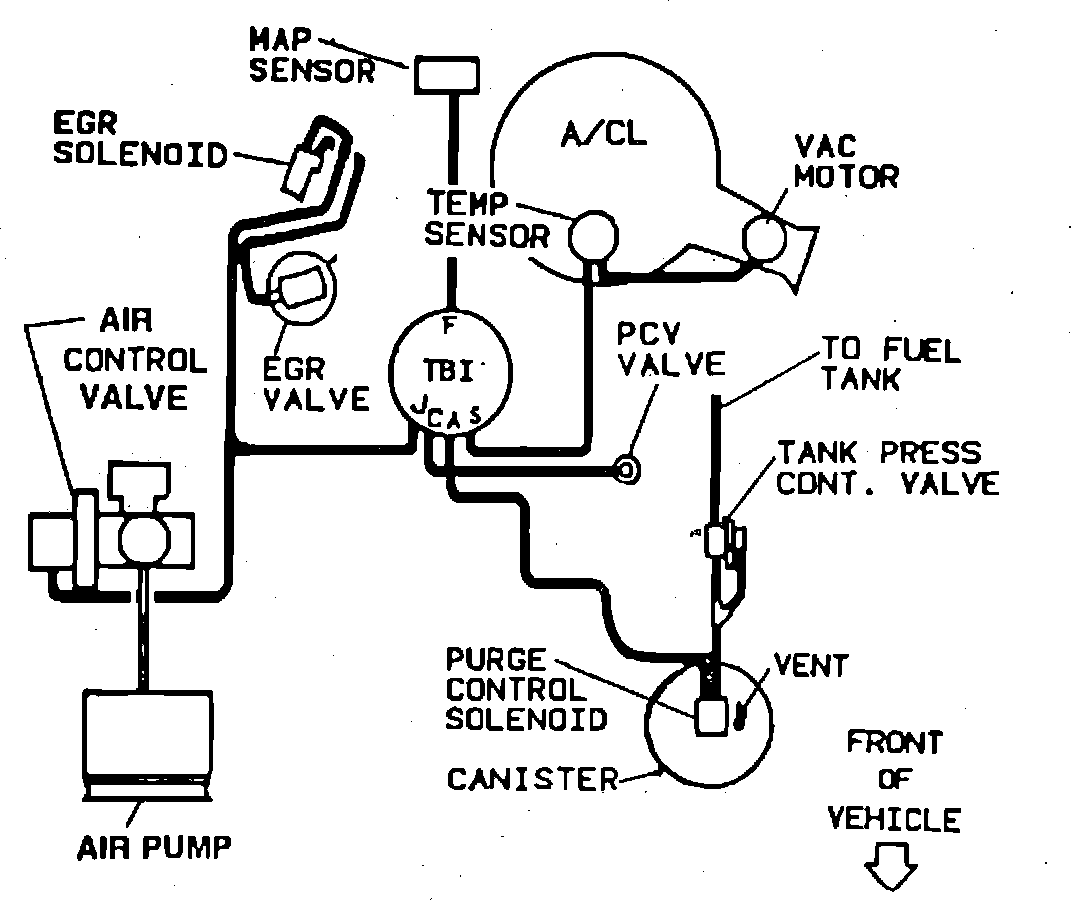

Vacuum Hose Diagram:
