Instrument Panel, Gauges and Warning Indicators: Service and Repair

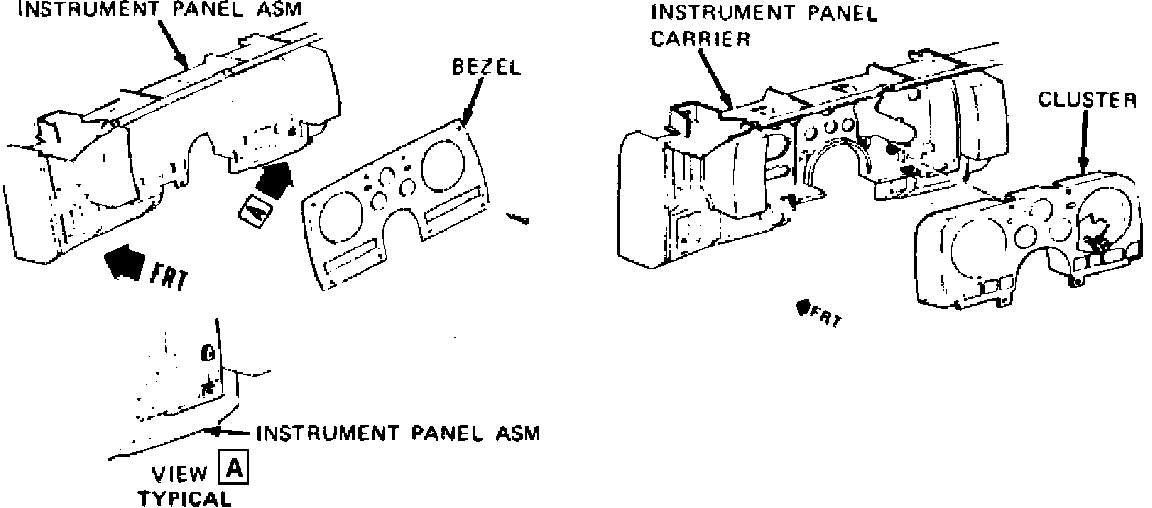

Fig. 14 Instrument cluster, exploded view. 1982---88 Camaro exc. 1984---86 Berlinetta:

CAMARO
1982---88 Exc. 1984---86 Berlinetta

1. Disconnect battery ground cable.
2. Remove instrument cluster bezel, Fig. 14.
3. Remove 6 cluster retaining screws, then pull cluster back and disconnect speedometer cable and electrical connectors.
4. Reverse procedure to install.
