Cold Start Injector
Cold Start Injector

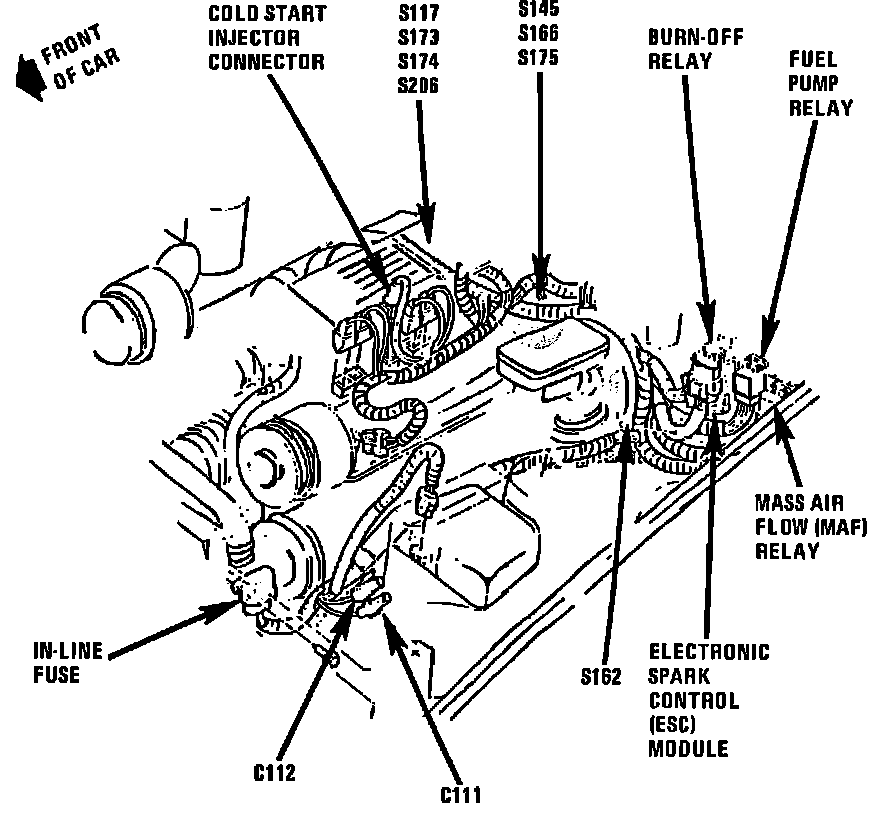

LH Side Of Engine Compartment.:
Top LH Side Of Engine
Applicable to: V8-305/5.0L (VIN F) & V8-350/5.7L Engines
