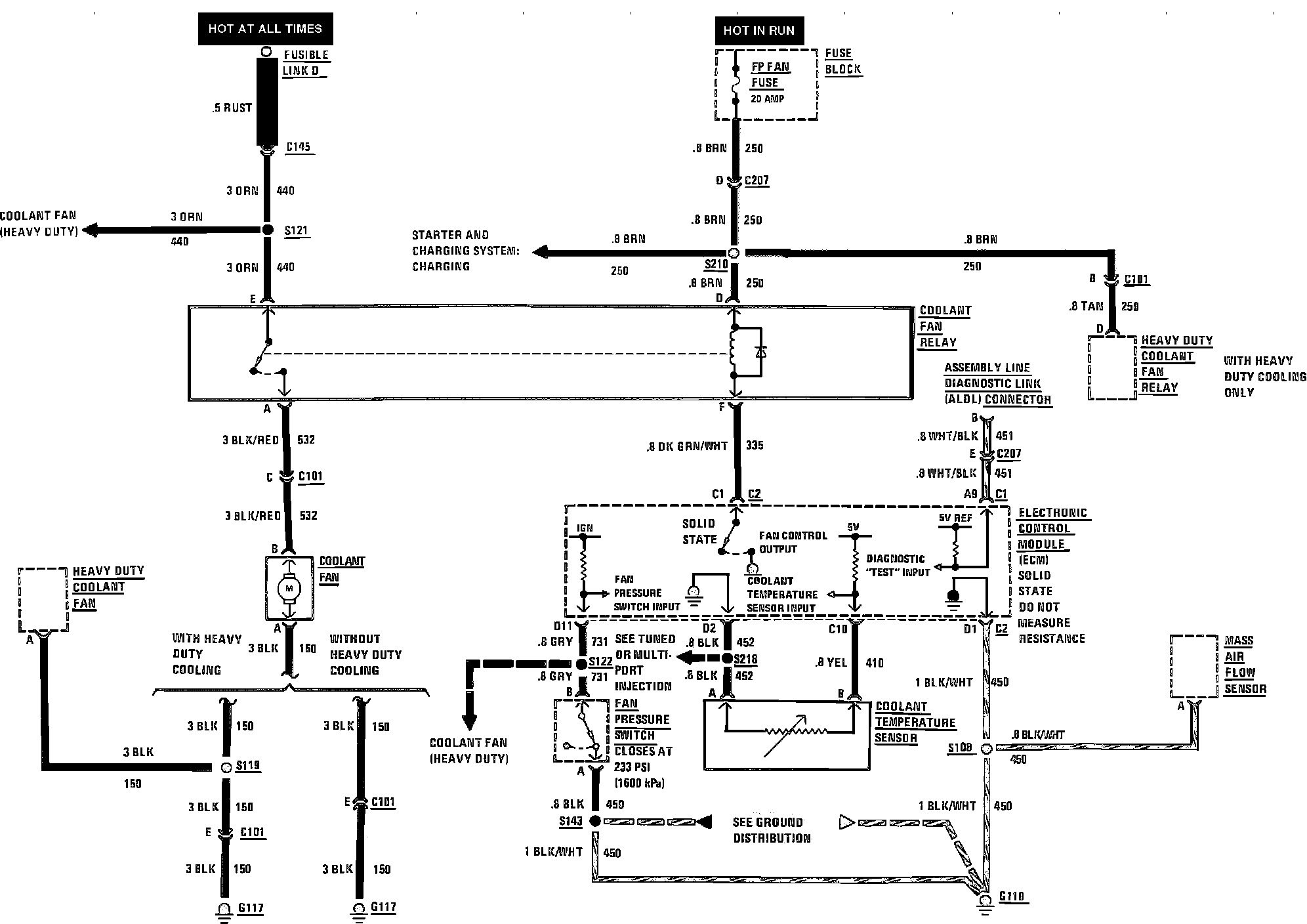

Radiator Cooling Fan Motor
>>
Less Heavy Duty Cooling Fan
Less Heavy Duty Cooling Fan
Less Heavy Duty Cooling Fan:
