G112

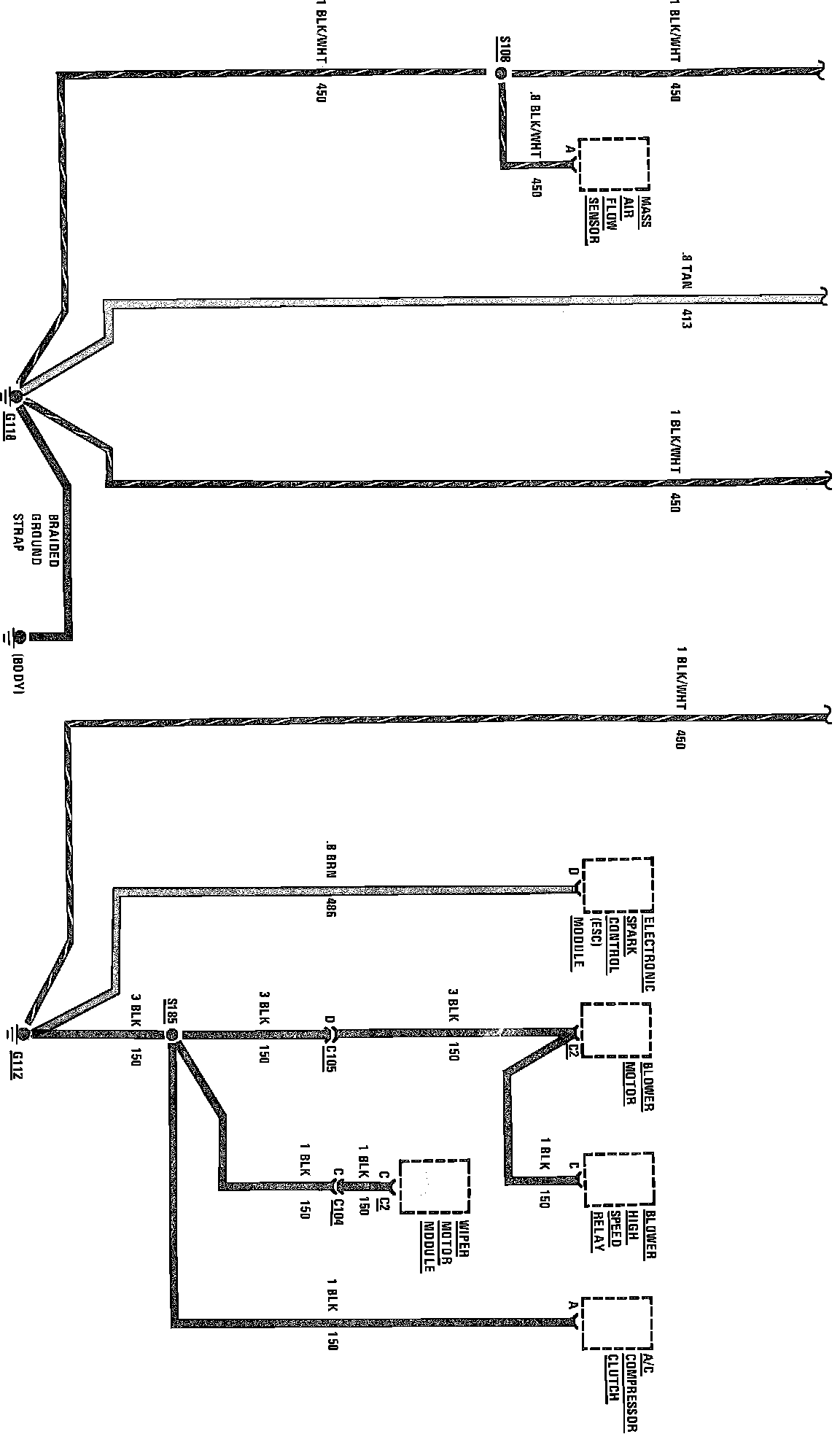

Ground Distribution (G112 & G118). W/V8-305/5.0L (VIN F & V8-350/4.7L (VIN 8):



Ground Distribution Wiring Circuit (G112 & G118, VIN F):
