Compressor HVAC

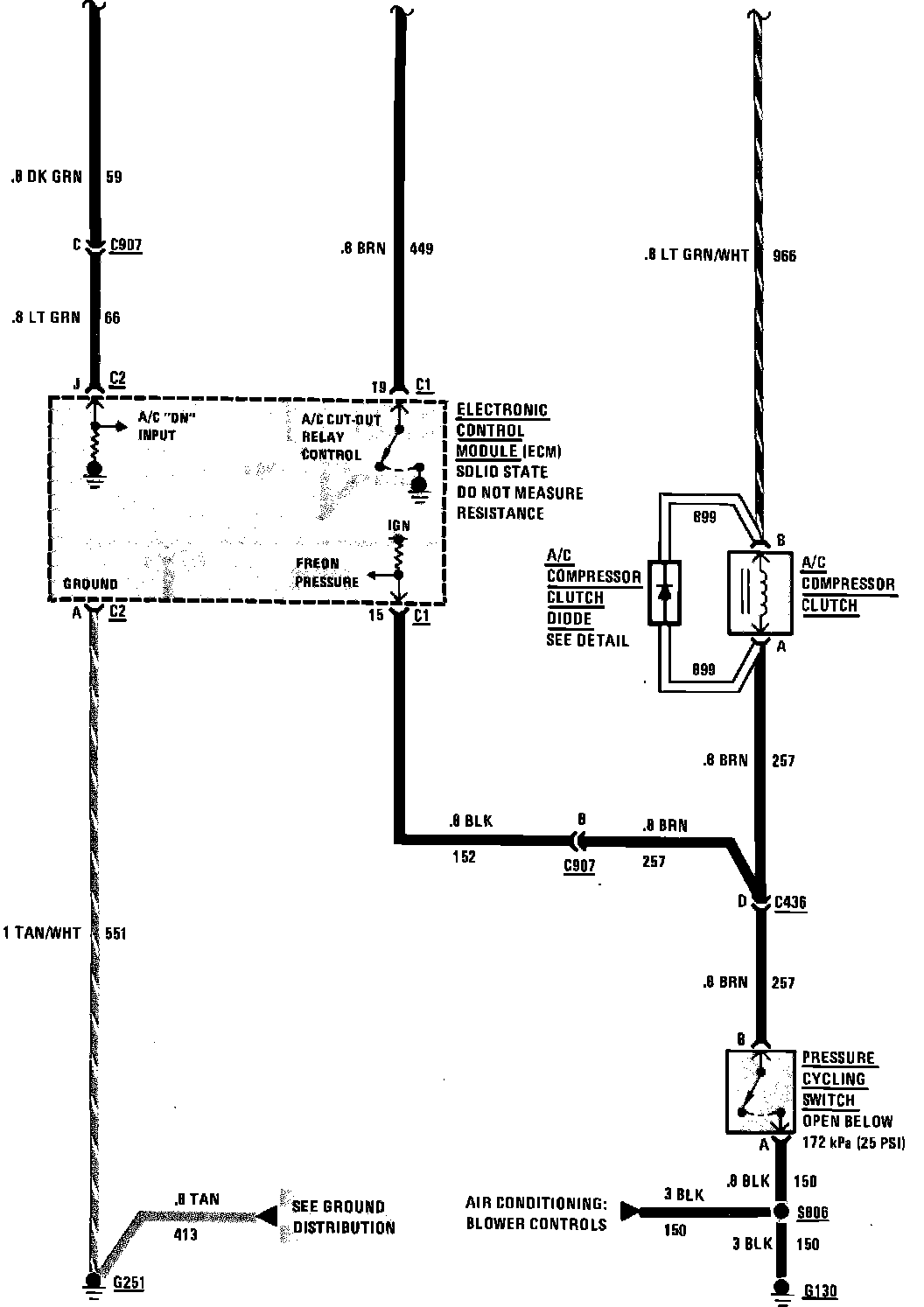

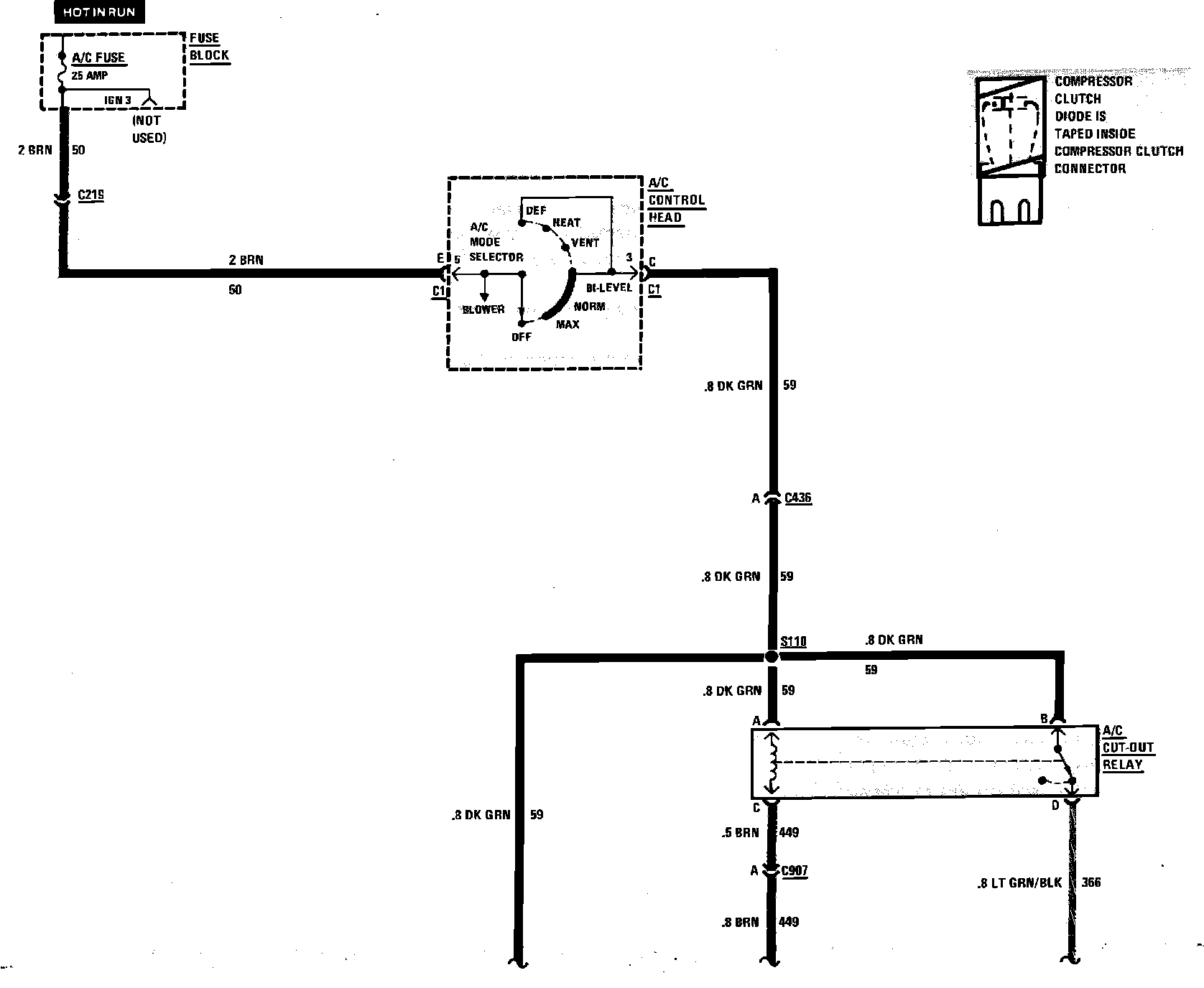

A/C Compressor Controls Wiring Circuit (V8-307/5.0L VIN Y Engine) W/Manual A/C:
A/C Compressor Controls Wiring Circuit (V8-307/5.0L VIN Y Engine) W/Manual A/C:
