Wiper and Washer Systems
>>
Fuse Block Details
Fuse Block Details

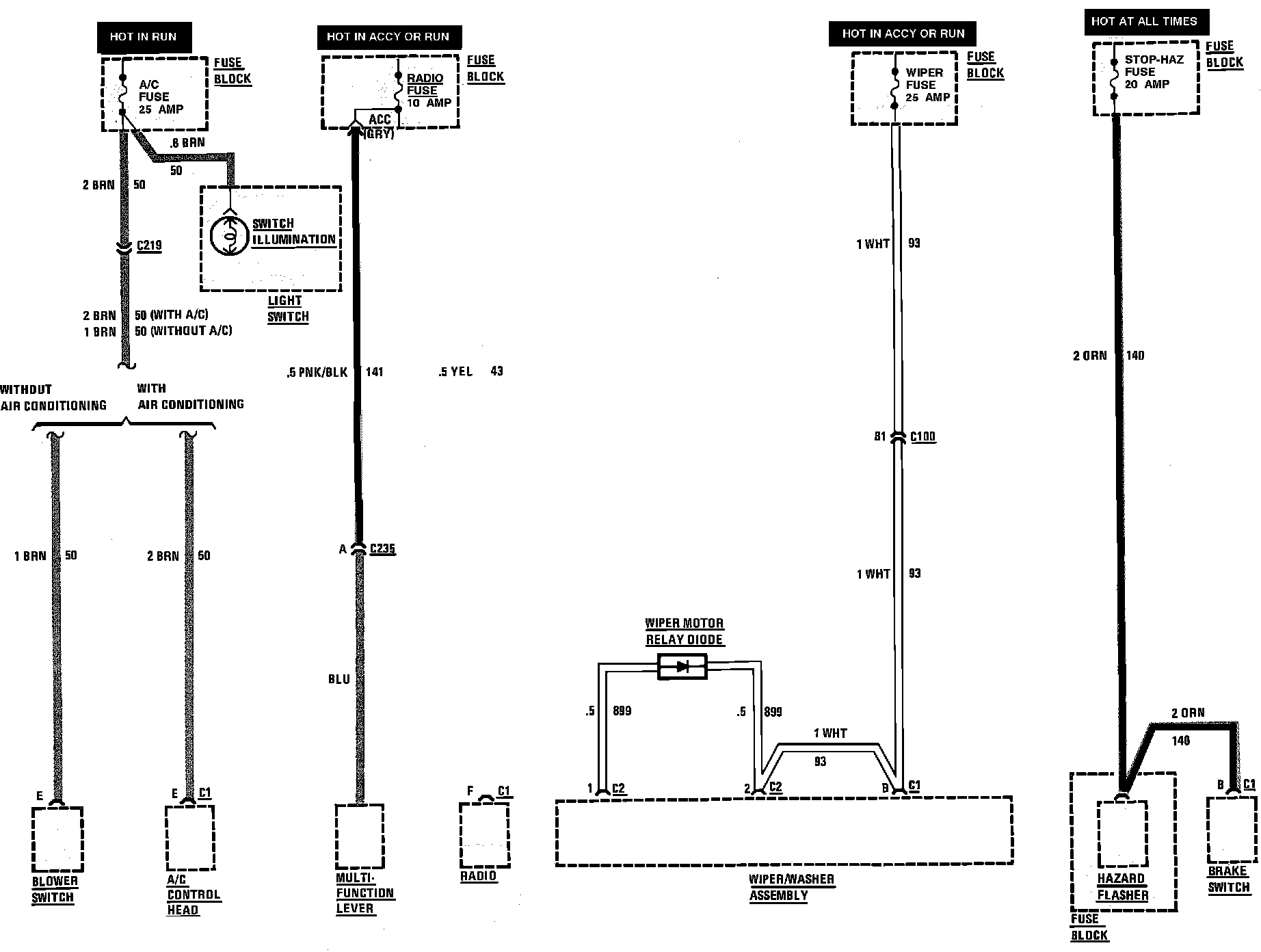

A/C Fuse, Radio Fuse, Stop/Haz Fuse & Wiper Fuse:
