Fuse Gauge, Choke Heater & Indicators
Fuse Gauge, Choke Heater & Indicators

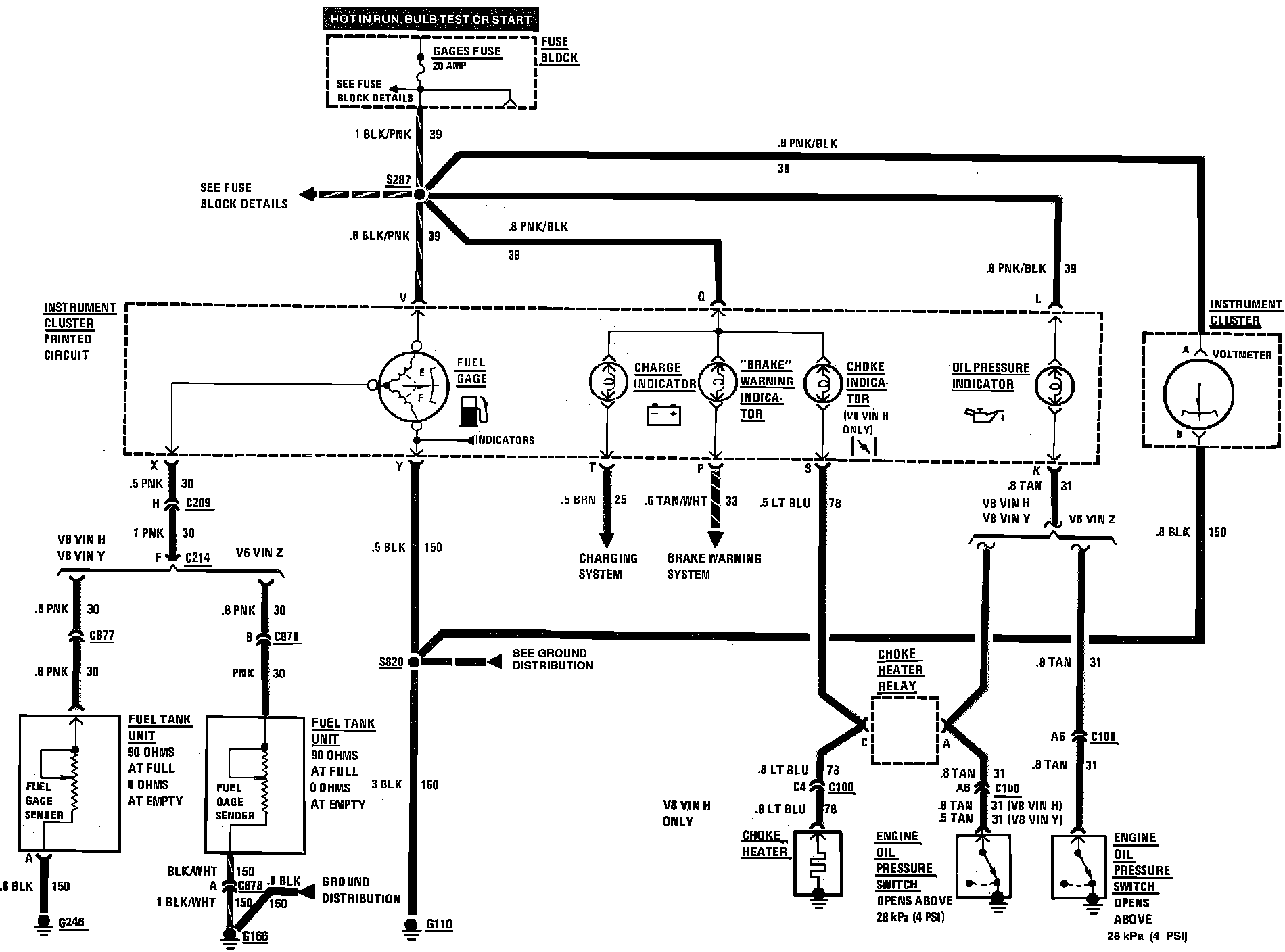

Fuel Gauge, Choke Heater & Indicators Wiring Circuit:
