Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster
>>
With Digital Cluster
With Digital Cluster

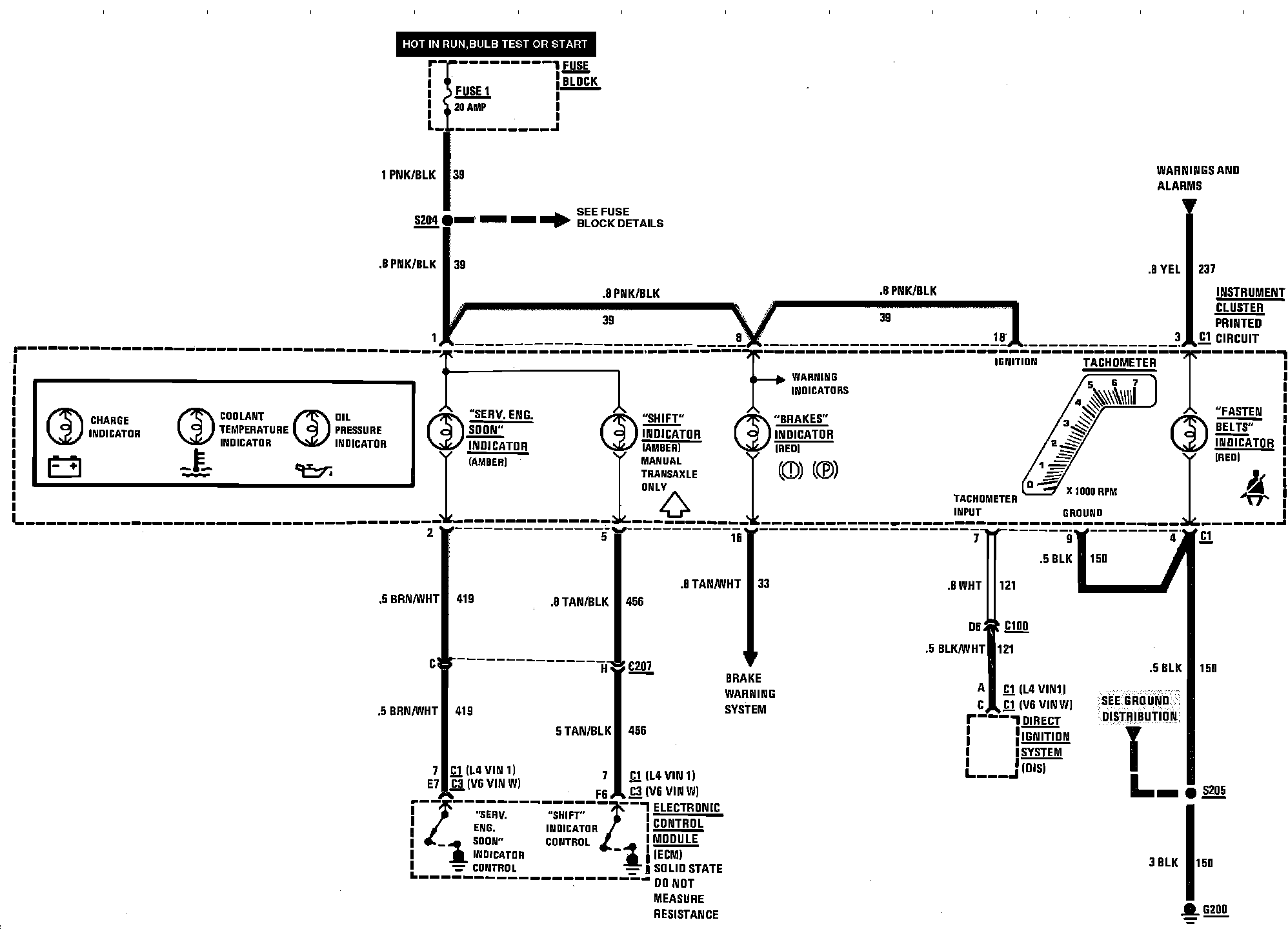

W/Digital Cluster (Part 1 Of 4):

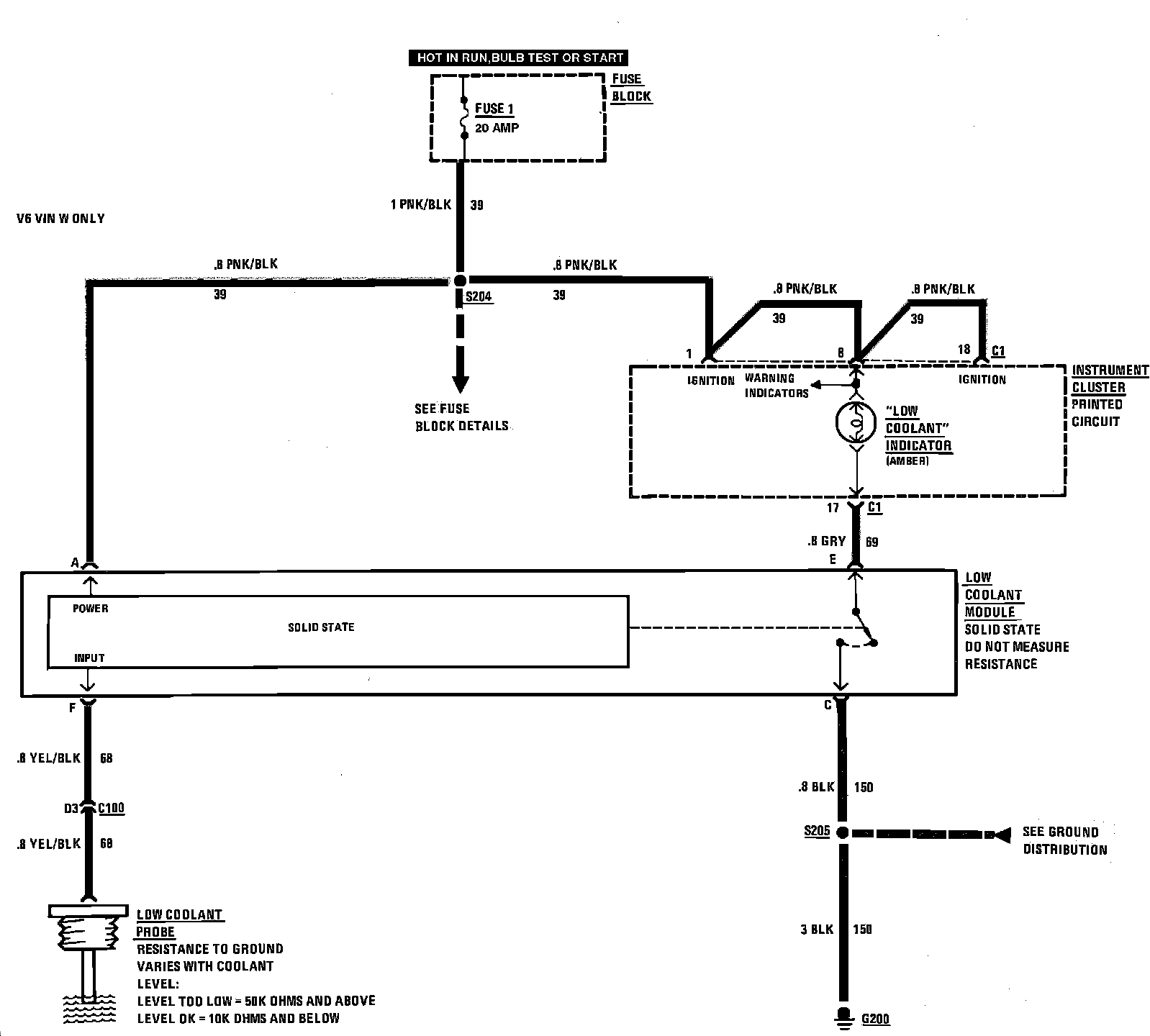

W/Digital Cluster (Part 2 Of 4):
W/Digital Cluster (Part 3 Of 4):
W/Digital Cluster (Part 4 Of 4):
