Home >> Chevrolet >> 1988 >> Cavalier/Z24 V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Trunk Lamp

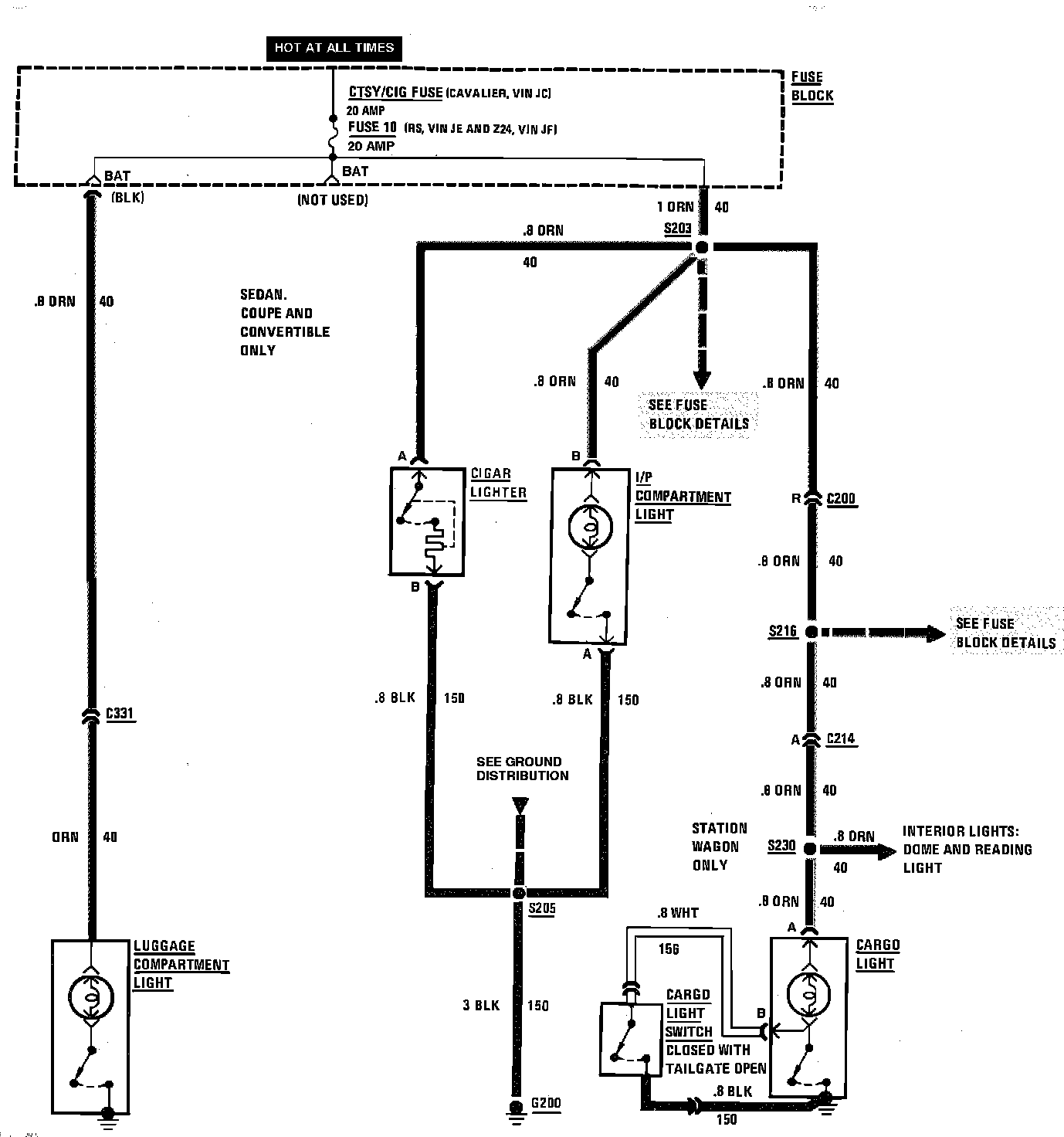

Trunk Lamp

Cigarette Lighter, I/P, Luggage & Cargo Compartment:
