Compressor Controls

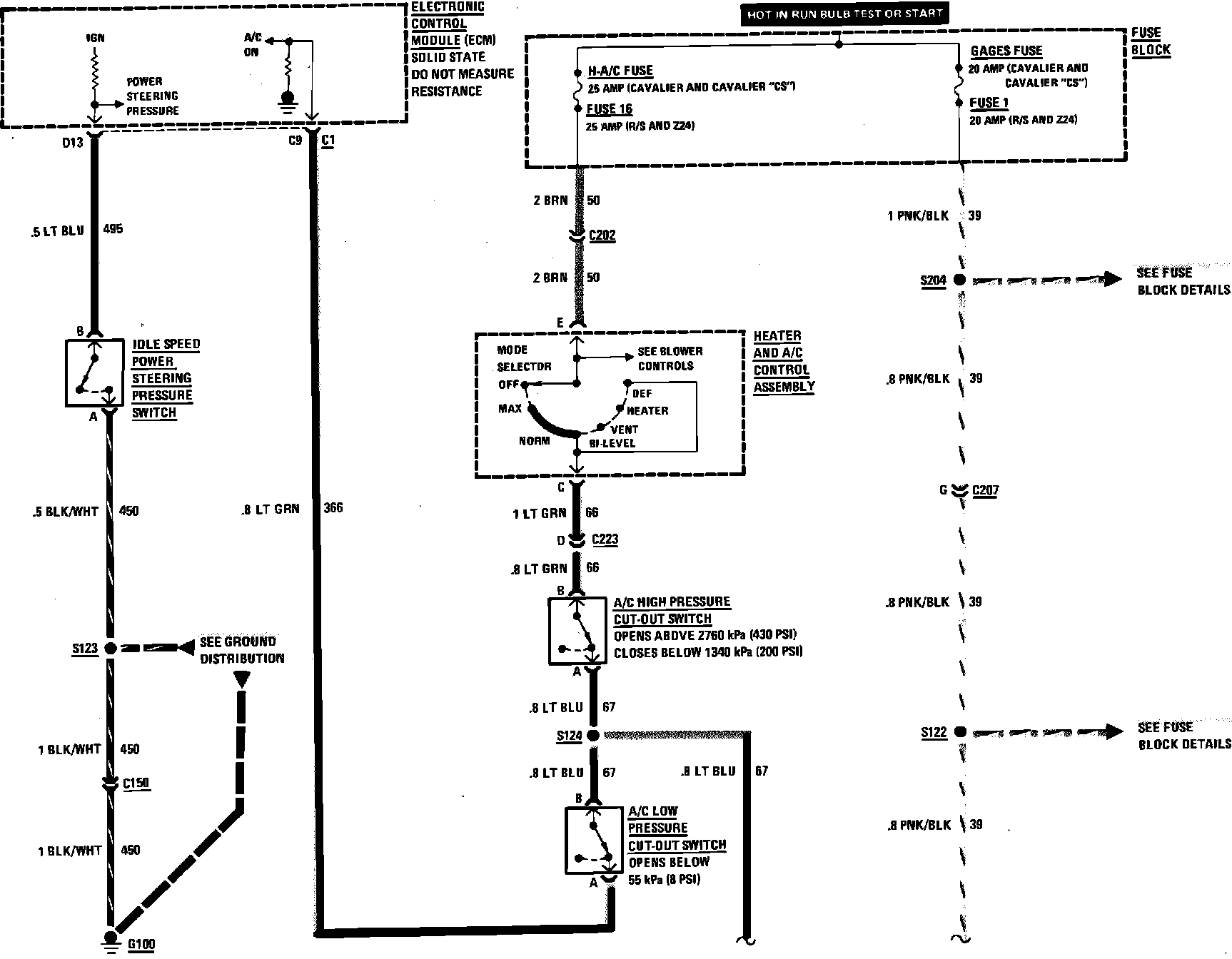

Fig. 14 Air Conditioning Wiring Circuit Compressor Control (Part 1 Of 2) W/V6-173/2.8L Engine:

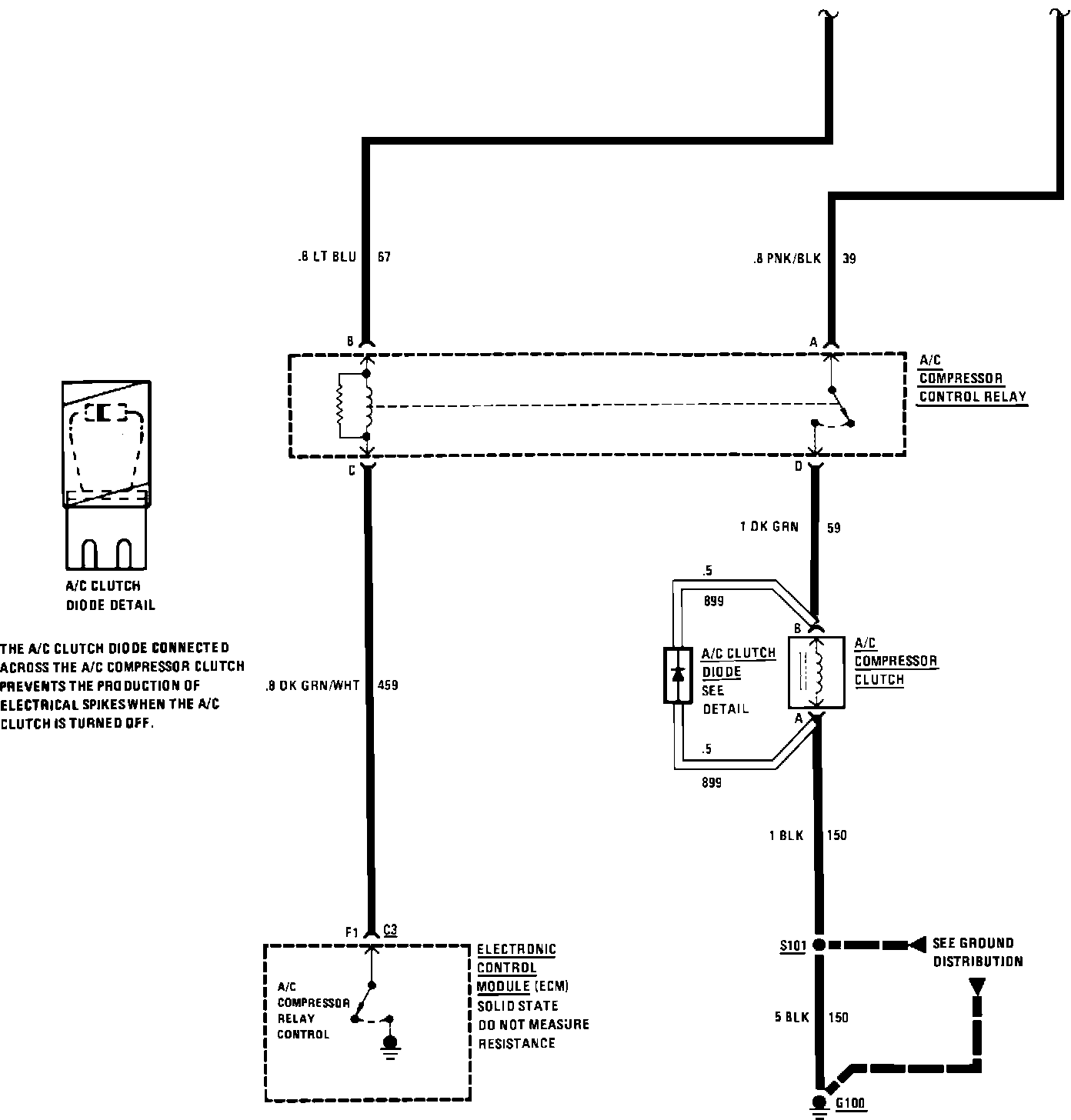

Compressor Wiring Circuit:
