Turn Signals

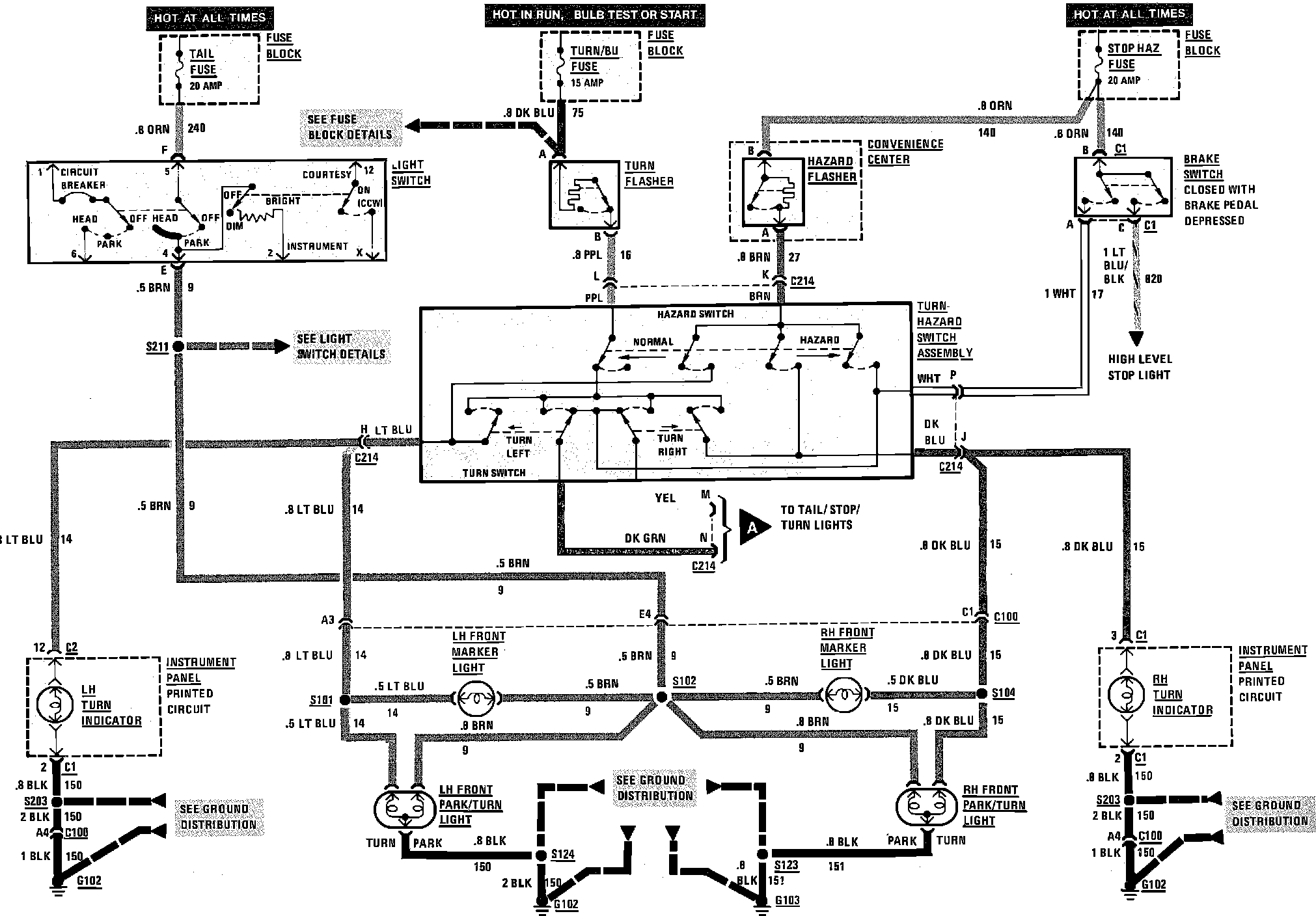

Exterior Lamps Wiring Circuit (Front Marker, Hazard, Park, Stop & Turn. (Part 1 of 2).:

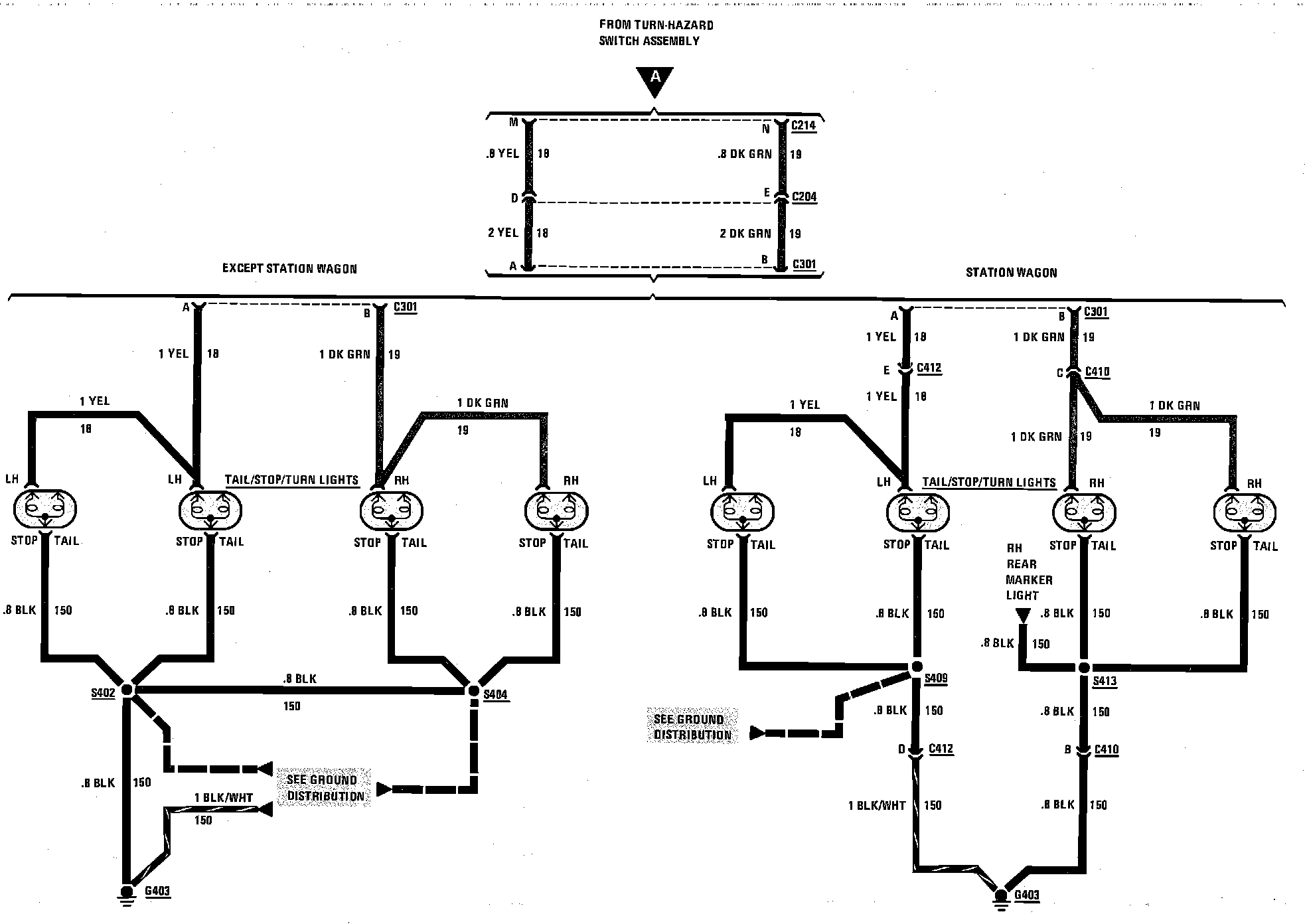

Exterior Lamps Wiring Circuit (Front Marker, Hazard, Park, Stop & Turn. (Part 2 of 2).:
