A/C Wiring Diagram

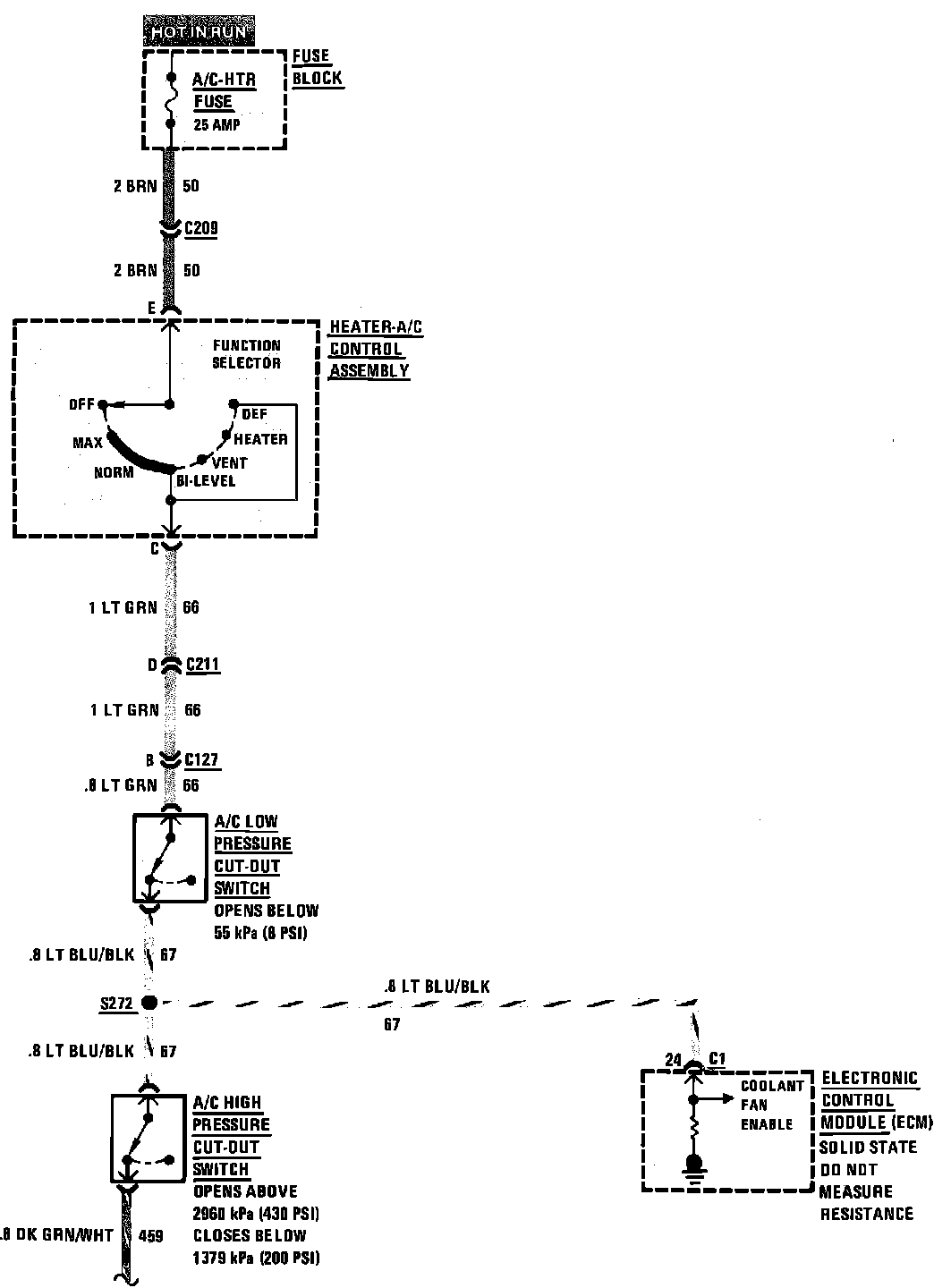

Air Conditioning System Wiring Circuit Part 1 of 2:

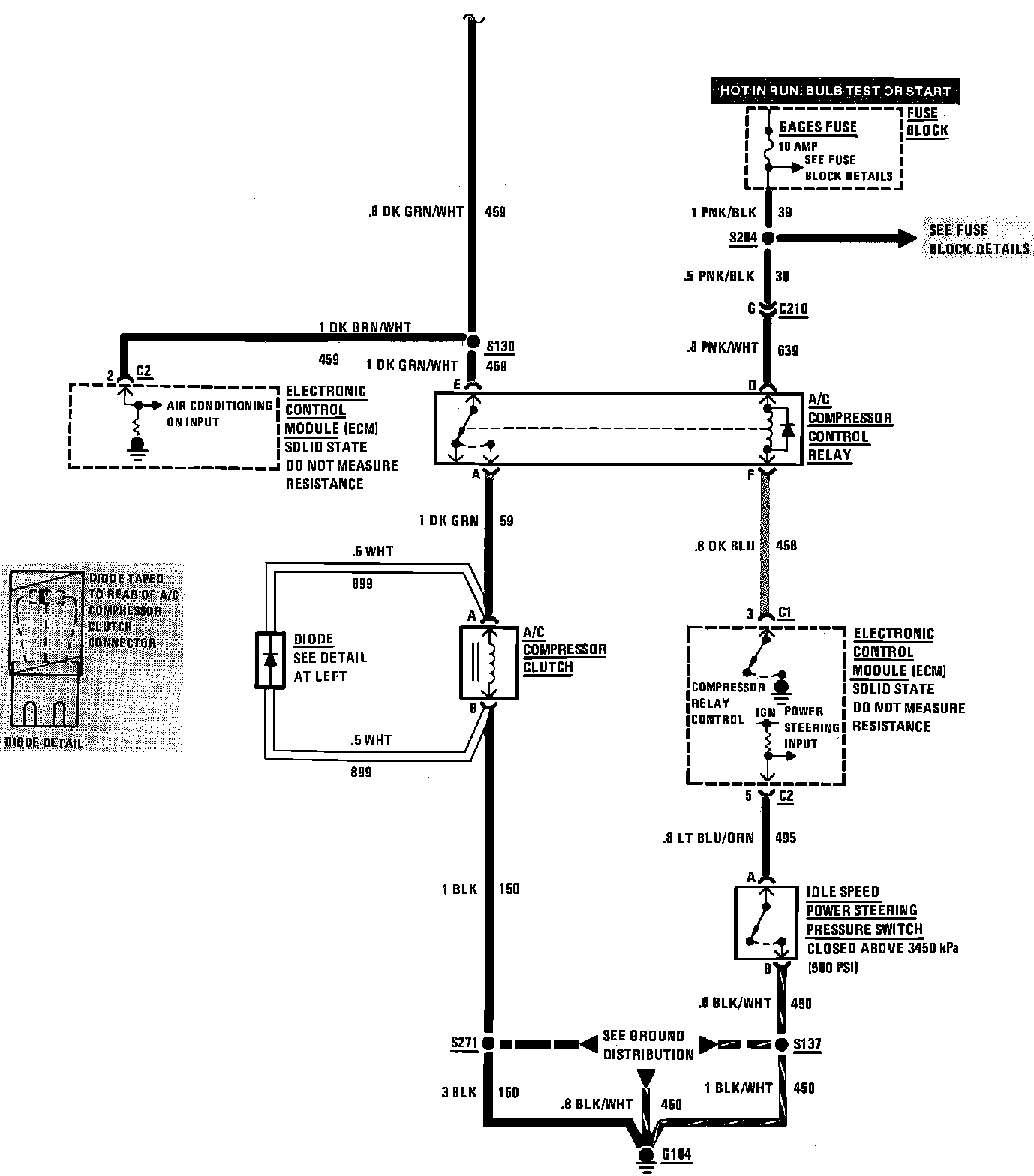

Air Conditioning System Wiring Circuit Part 2 of 2:
