Heated Glass Element
>>
Indicators Cluster
Indicators Cluster

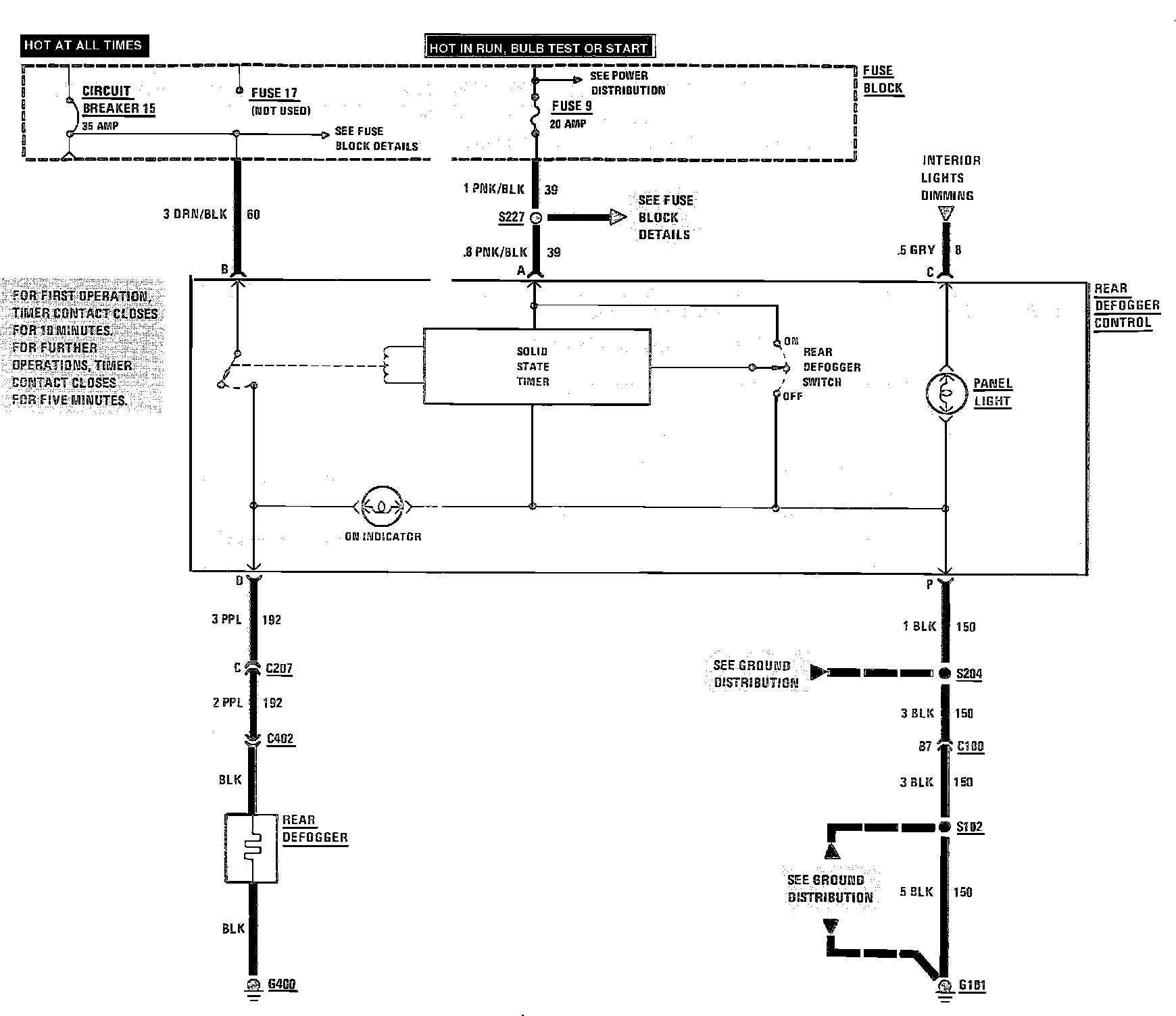

Rear Window Defogger Wiring Circuit (Indicators Cluster):
