Antitheft and Alarm Systems
Antitheft and Alarm Systems

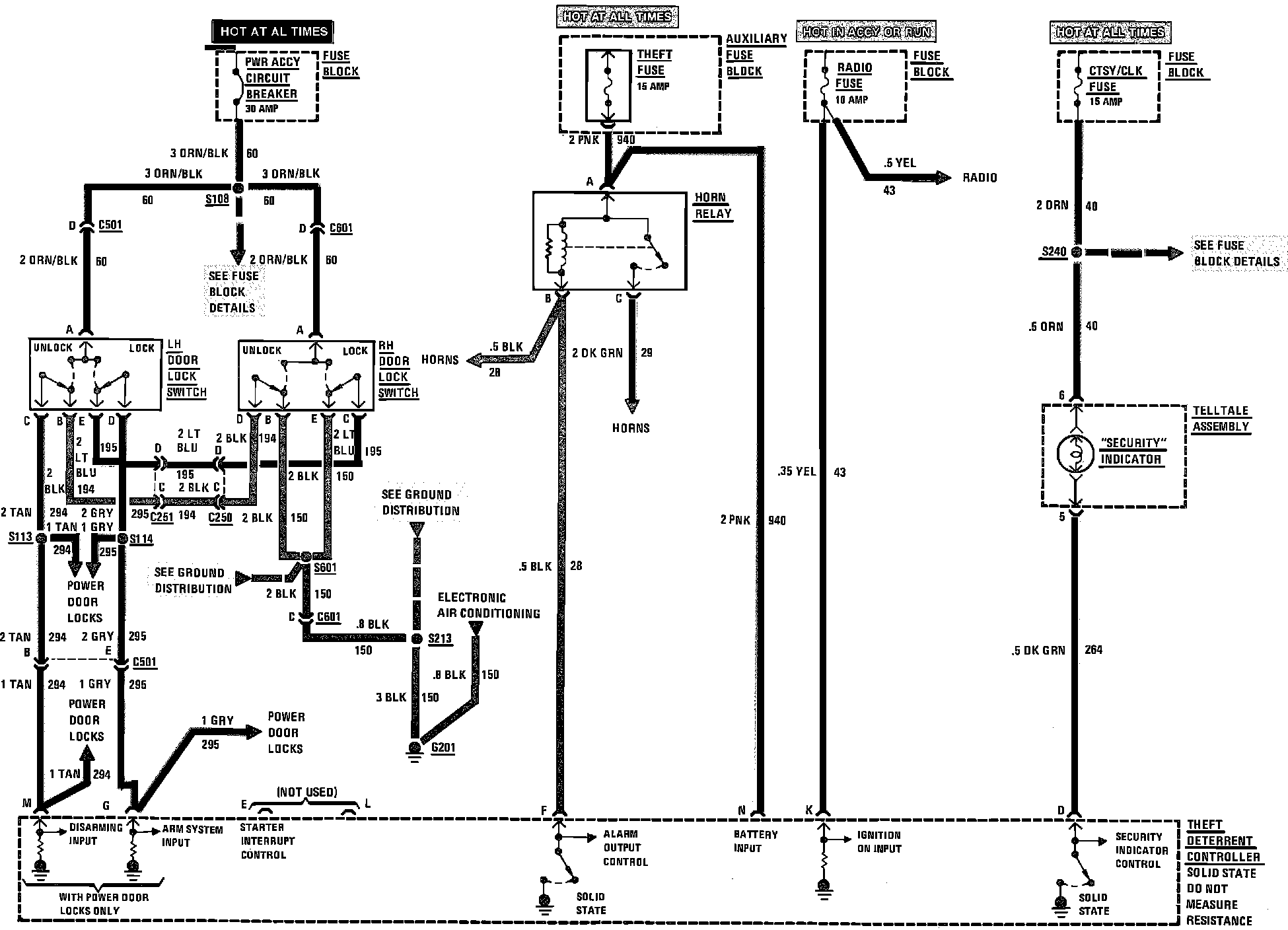

Theft Deterrent System Wiraing Circuit (Forced Entry Alarm System):
Theft Deterrent System Wiraing Circuit (Part 2 of 2, Forced Entry Alarm System):

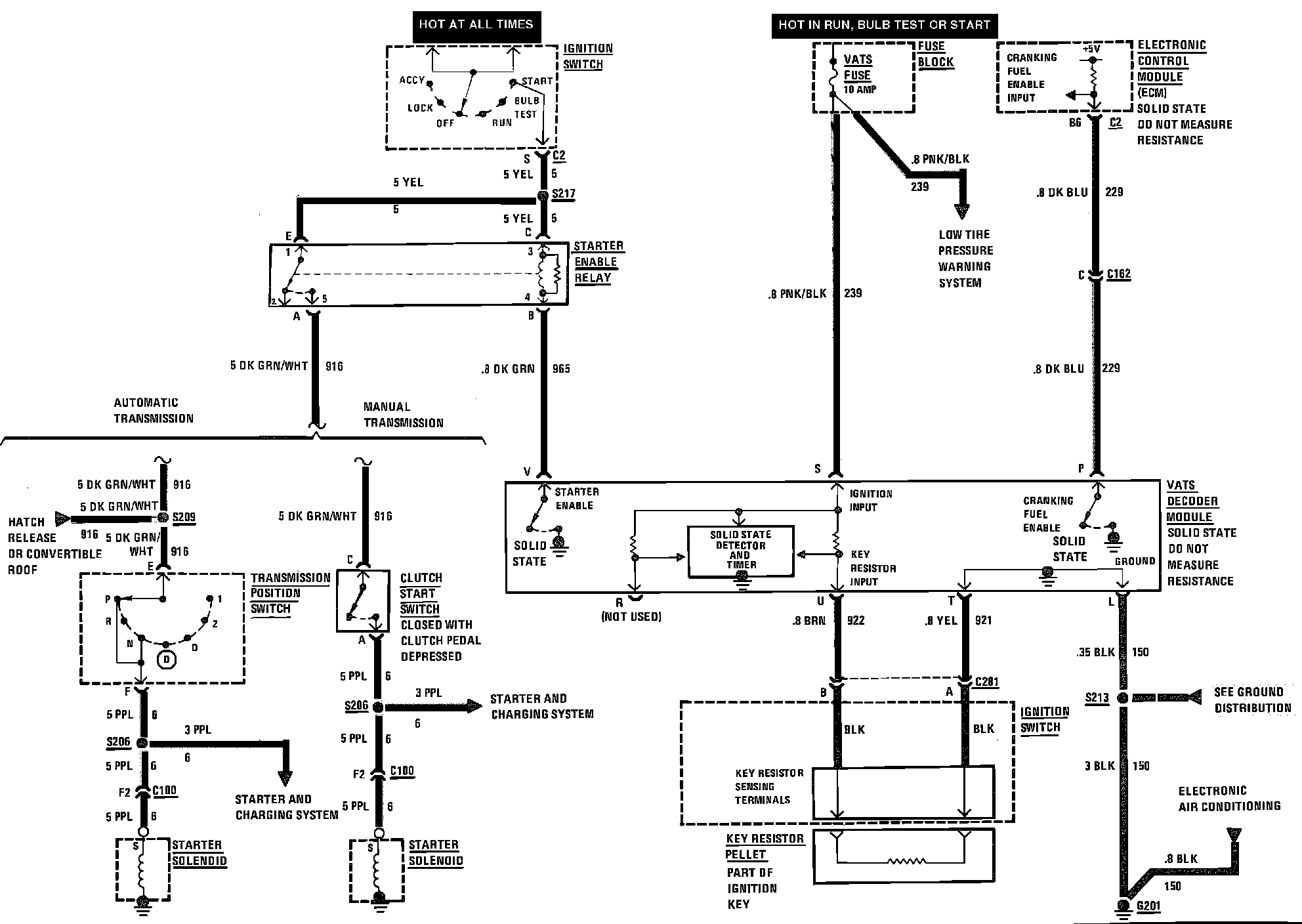

Theft Deterrent System Wiring Circuit (Vehicle Anti-Theft System:
