Heated Mirrors & Rear Defogger Wiring Circuit (Manual A/C)

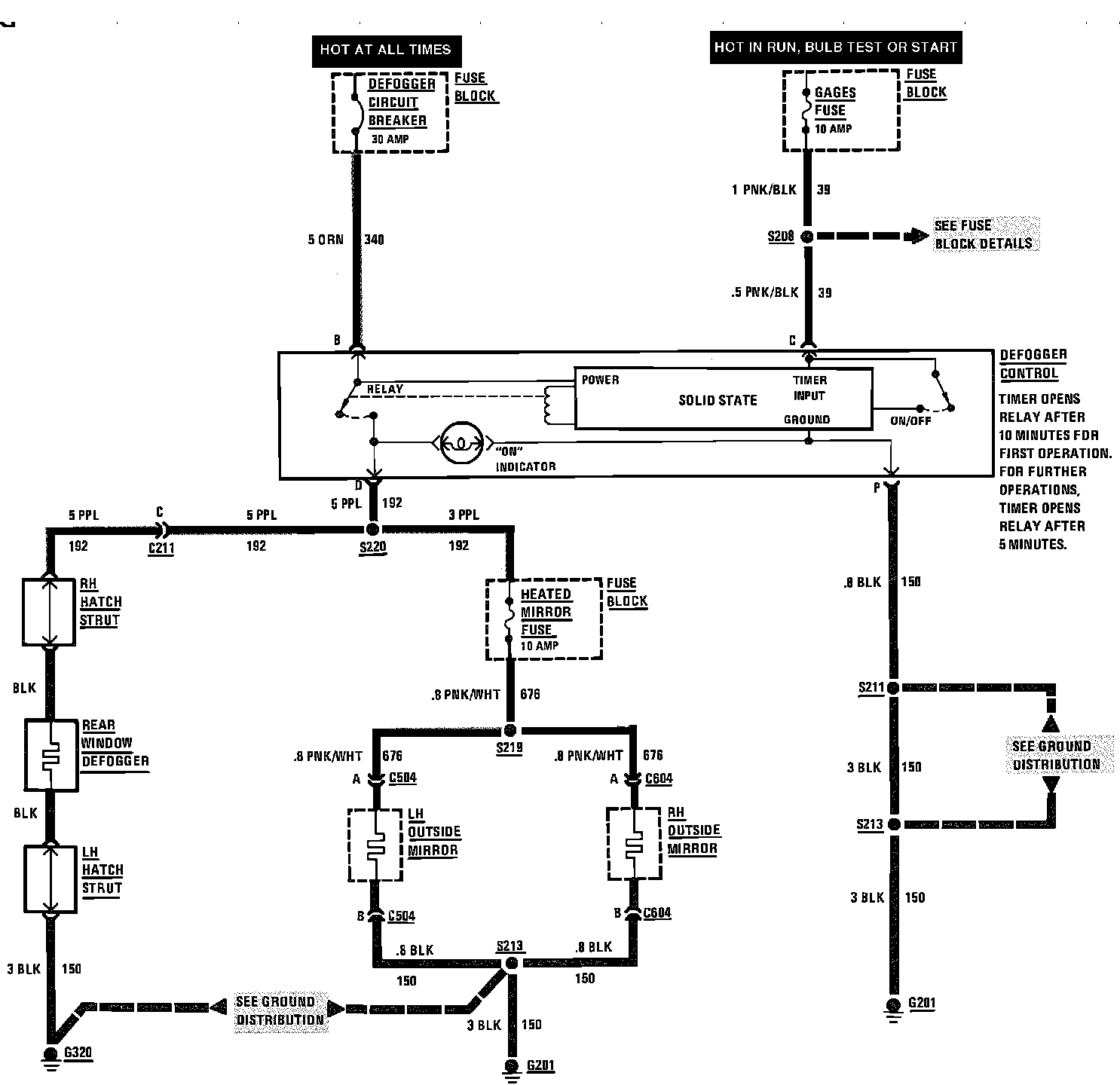

Heated Mirrors & Rear Defogger Wiring Circuit (Manual Air Conditioning):
