System Diagram
System Diagram

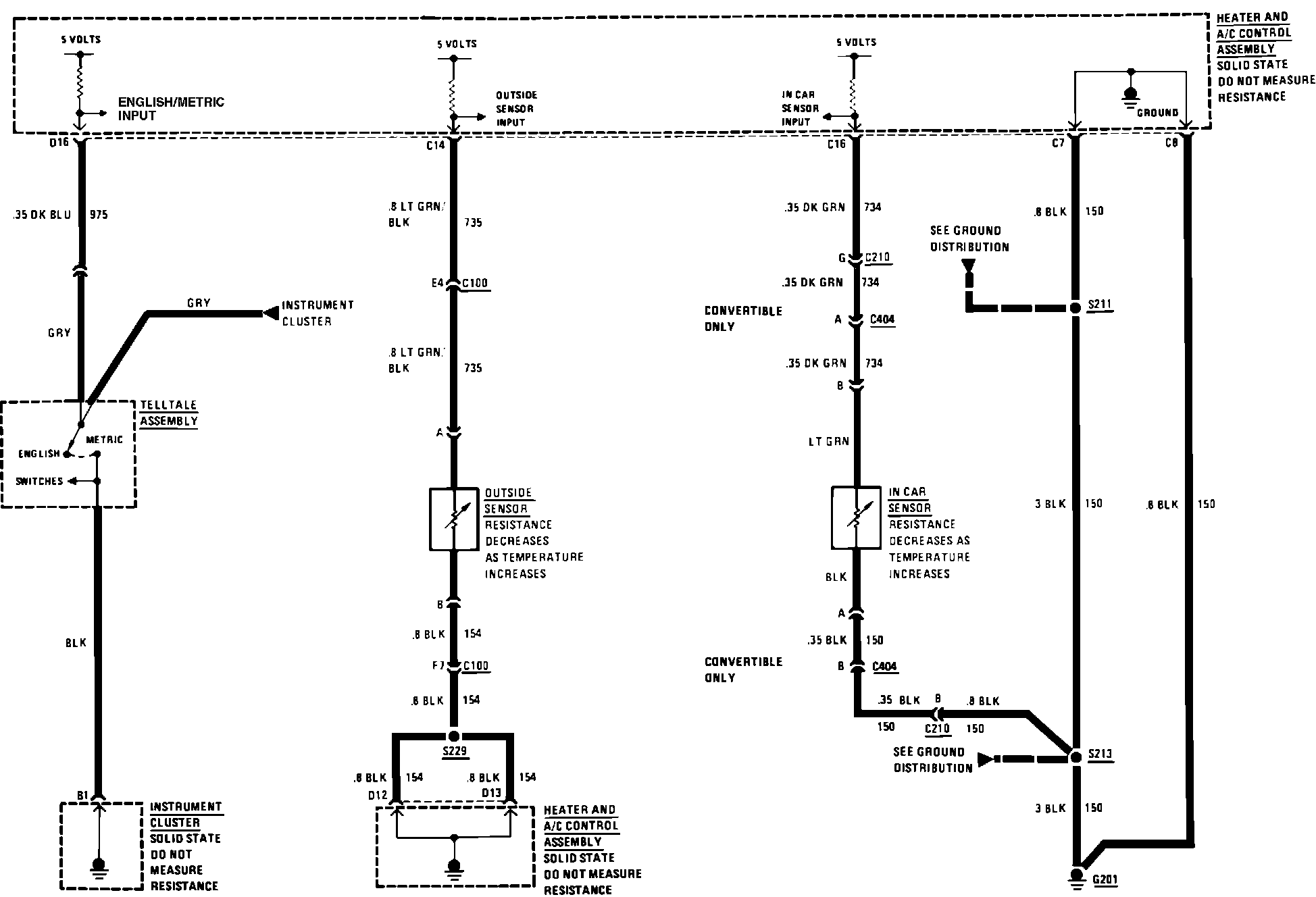

A/C Temperature Controls Wiring Circuit (W/Electronic Control):
A/C Temperature Controls Wiring Circuit (W/Electronic Control):
