Cargo Lamp

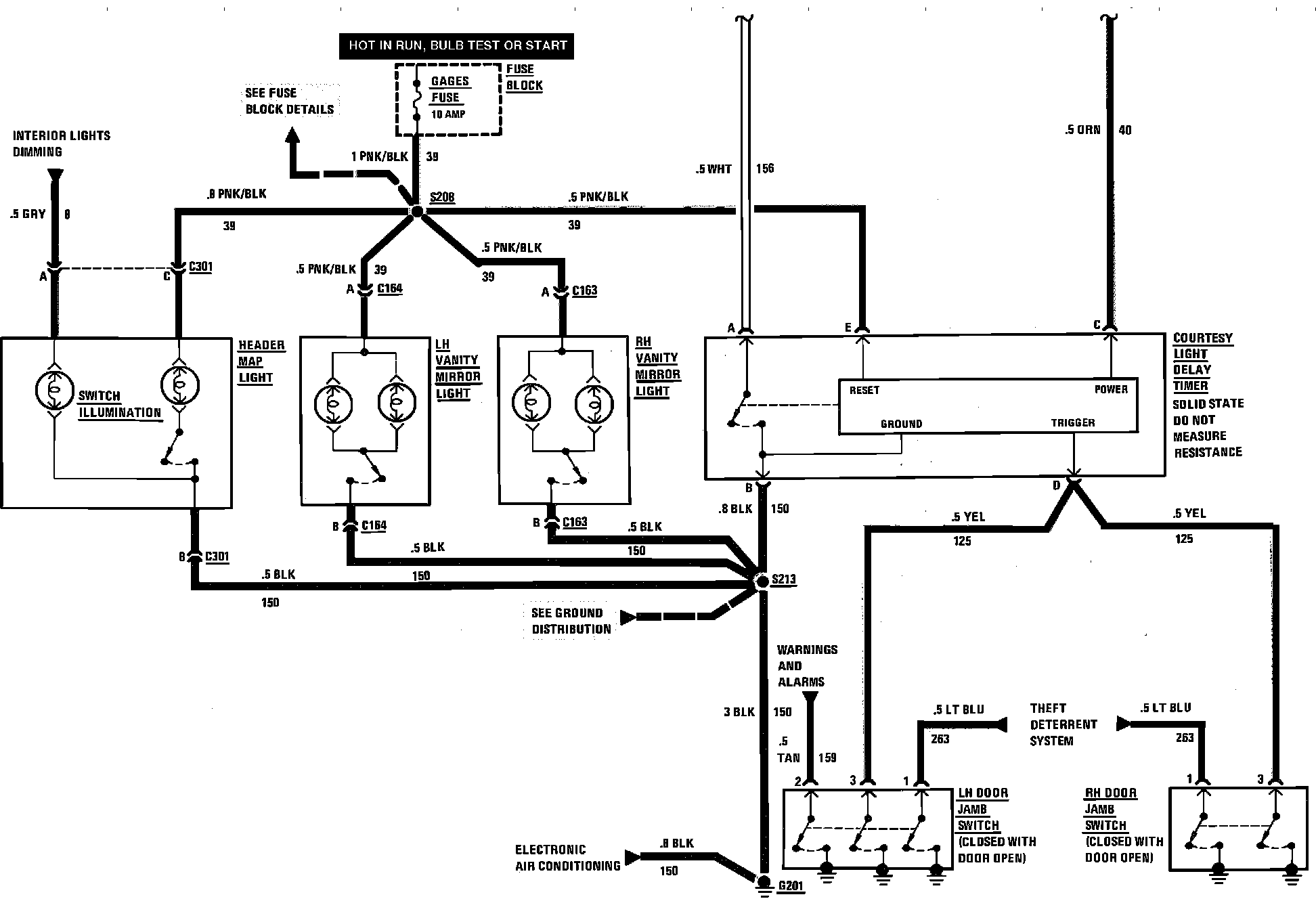

Cargo, Courtesy, Header Map, Map Spare Tire, And Vanity Mirror Wiring Circuit (Convertible):

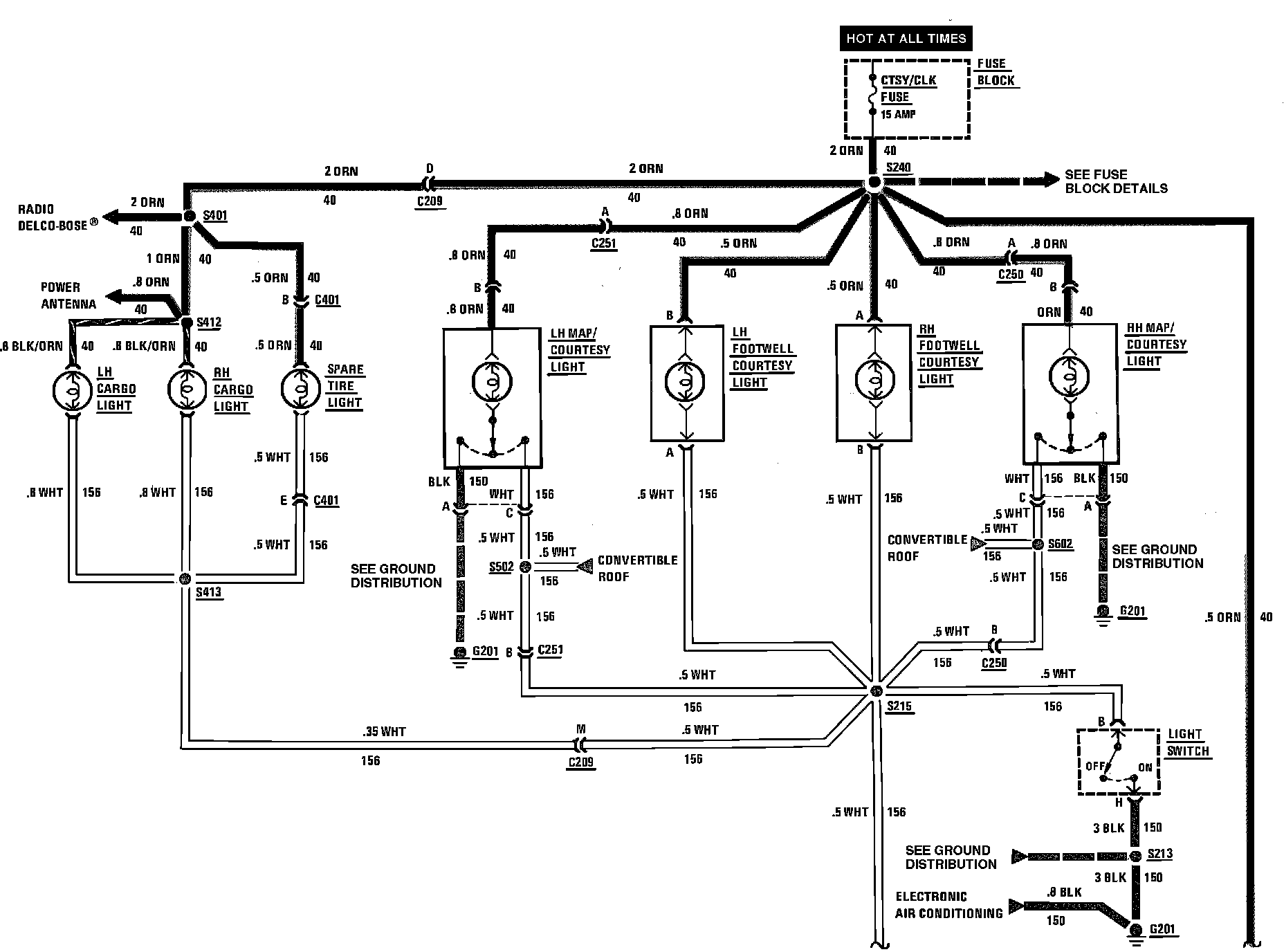

Cargo, Courtesy, Header Map, Map Spare Tire, And Vanity Mirror Wiring Circuit (Convertible):
