Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1988
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Without Delco-Bose System
Without Delco-Bose System

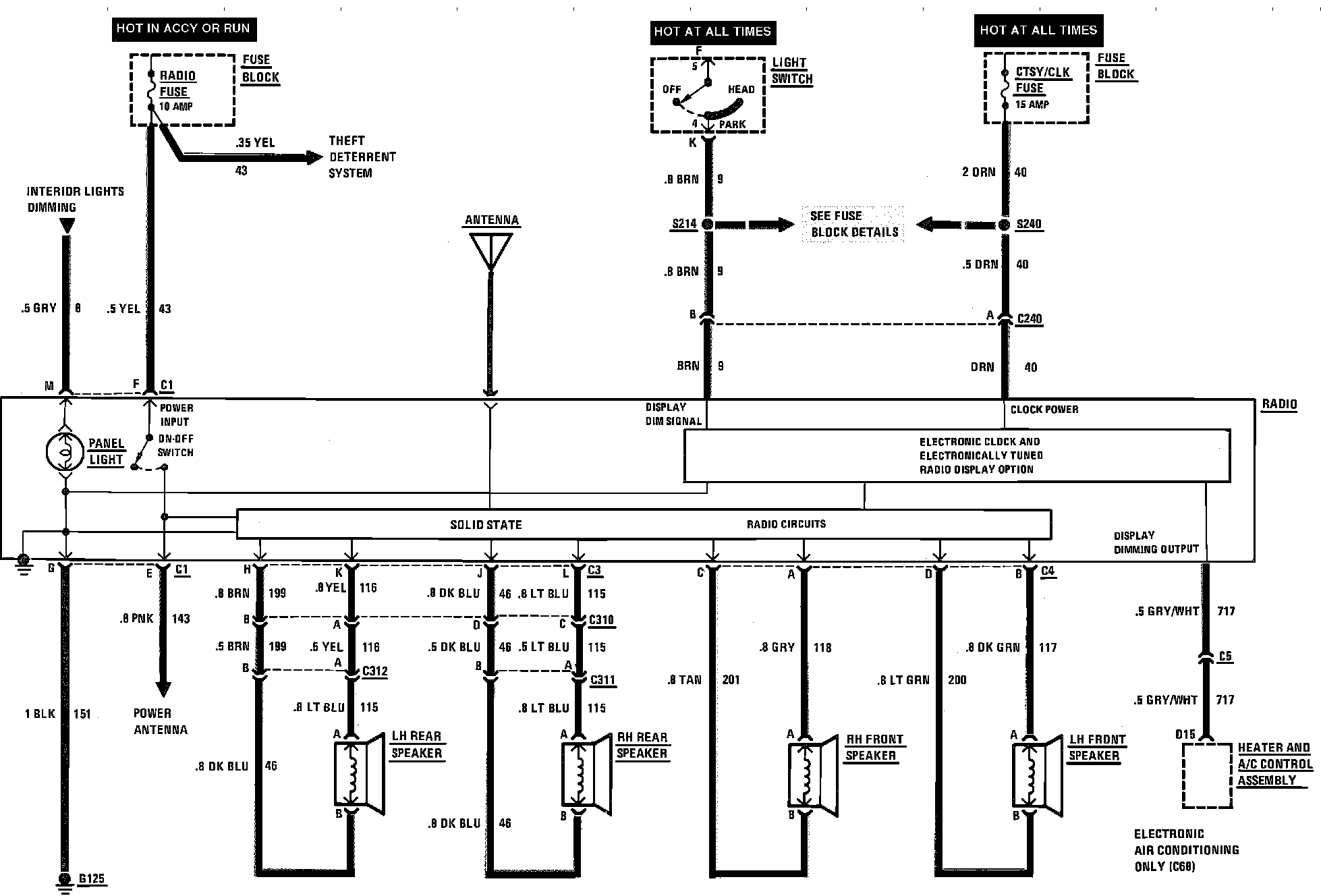

Radio & Speaker Wiring Circuit:
