Instrument Panel Digital Cluster
Instrument Panel Digital Cluster

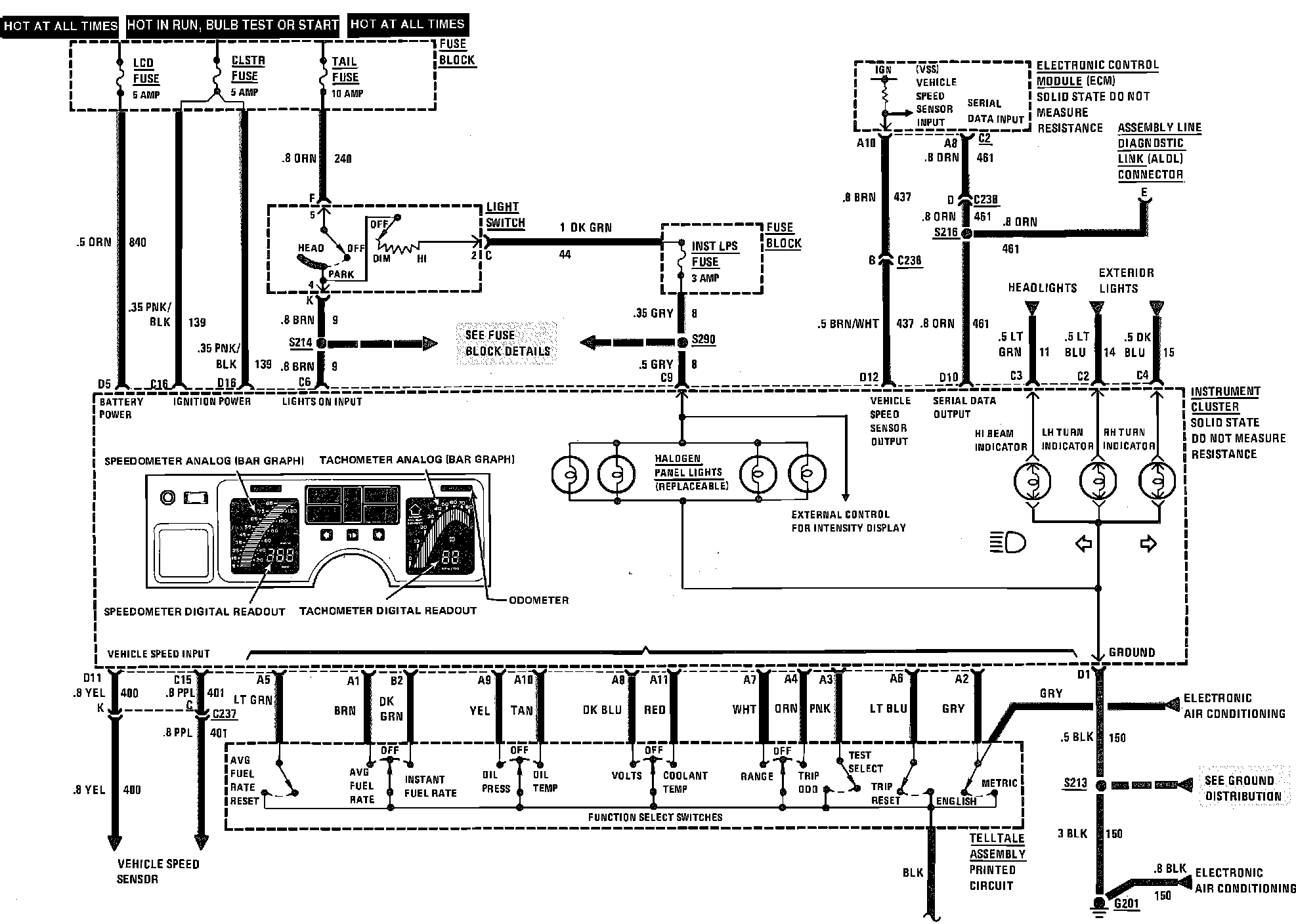

Instrument Panel Digital Cluster Wiring Circuit:

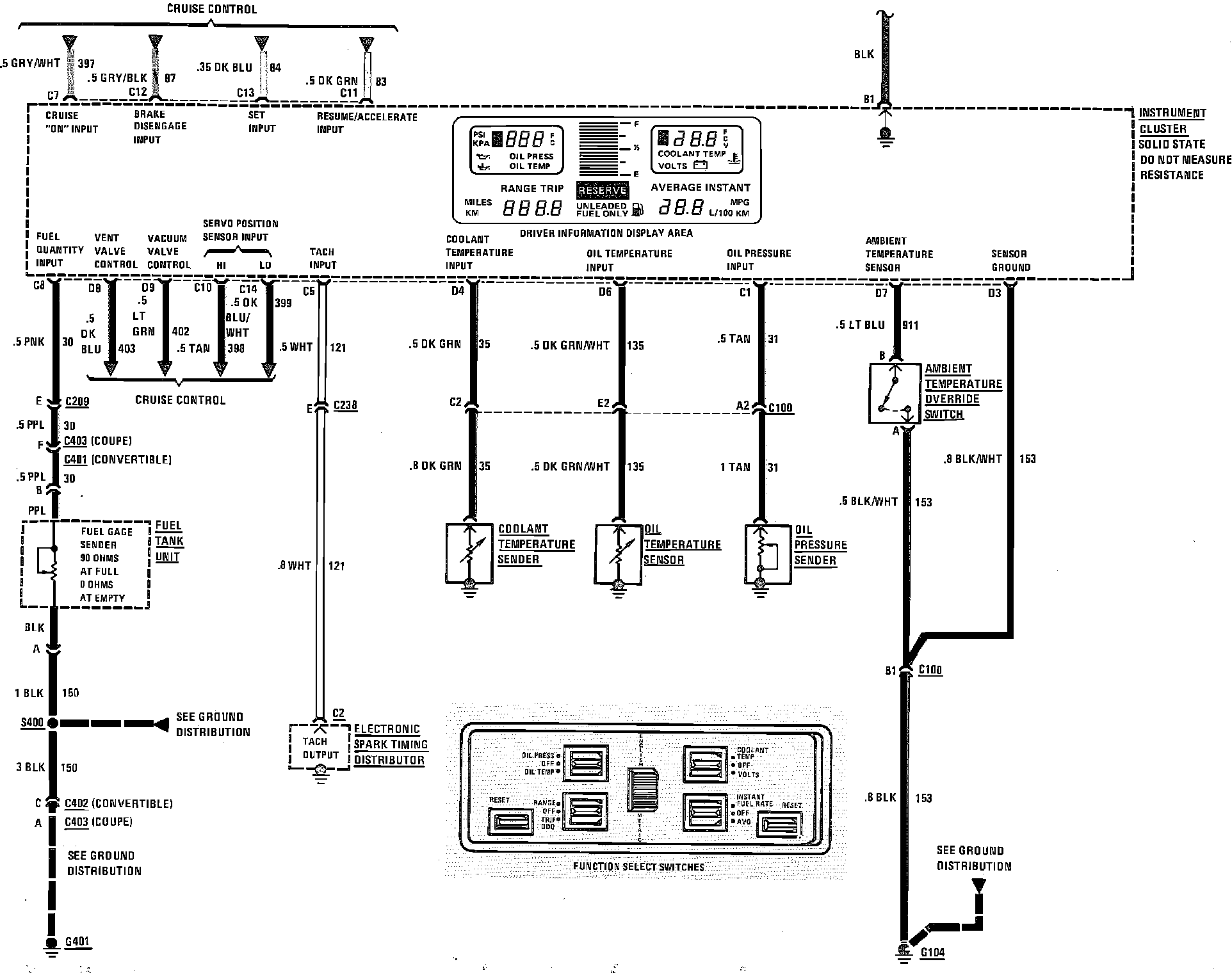

Instrument Panel Digital Cluster Wiring Circuit:
