Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

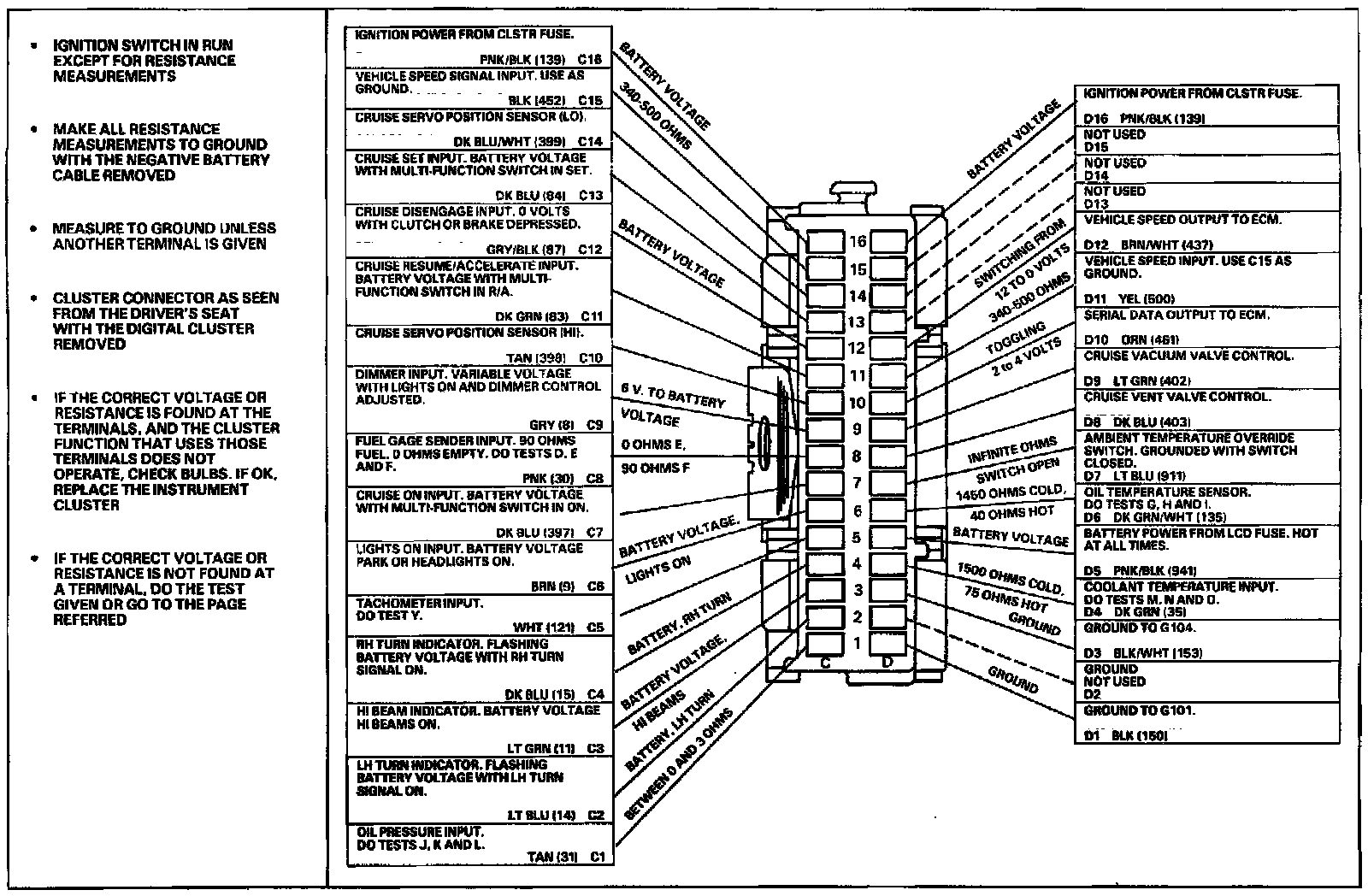

A: Cluster Connector Pinout Test
A: Cluster Connector Pinout Test
A: Cluster Connector Pinout Test
