Spare Tire & Vanity Mirror (Coupe)

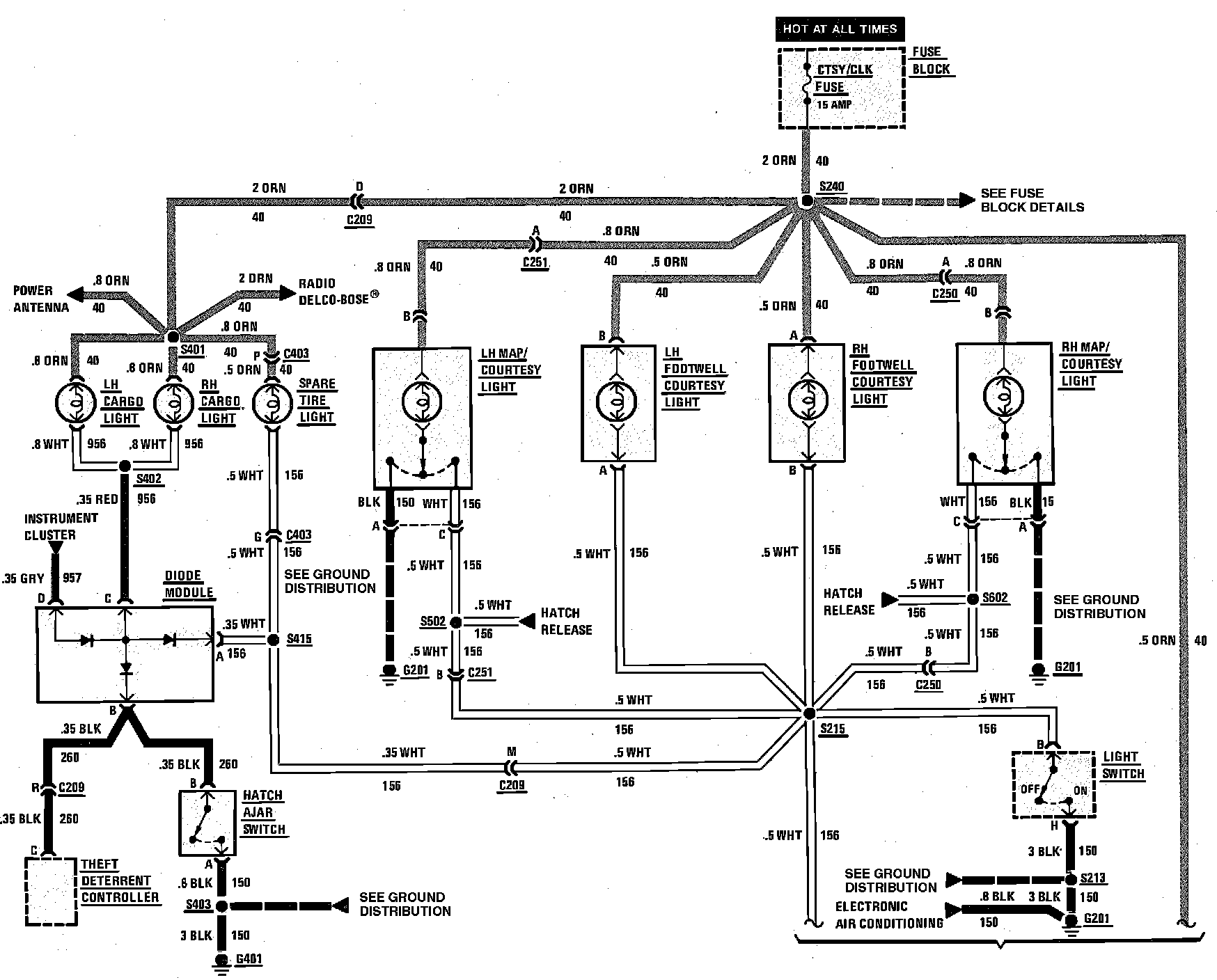

Cargo, Courtesy, Header Map, Map, Spart Tire & Vanity Mirror Wiring Circuit (Coupe):

Cargo, Courtesy, Header Map, Map Spare Tire, And Vanity Mirror Wiring Circuit (Convertible):
