System Specifications

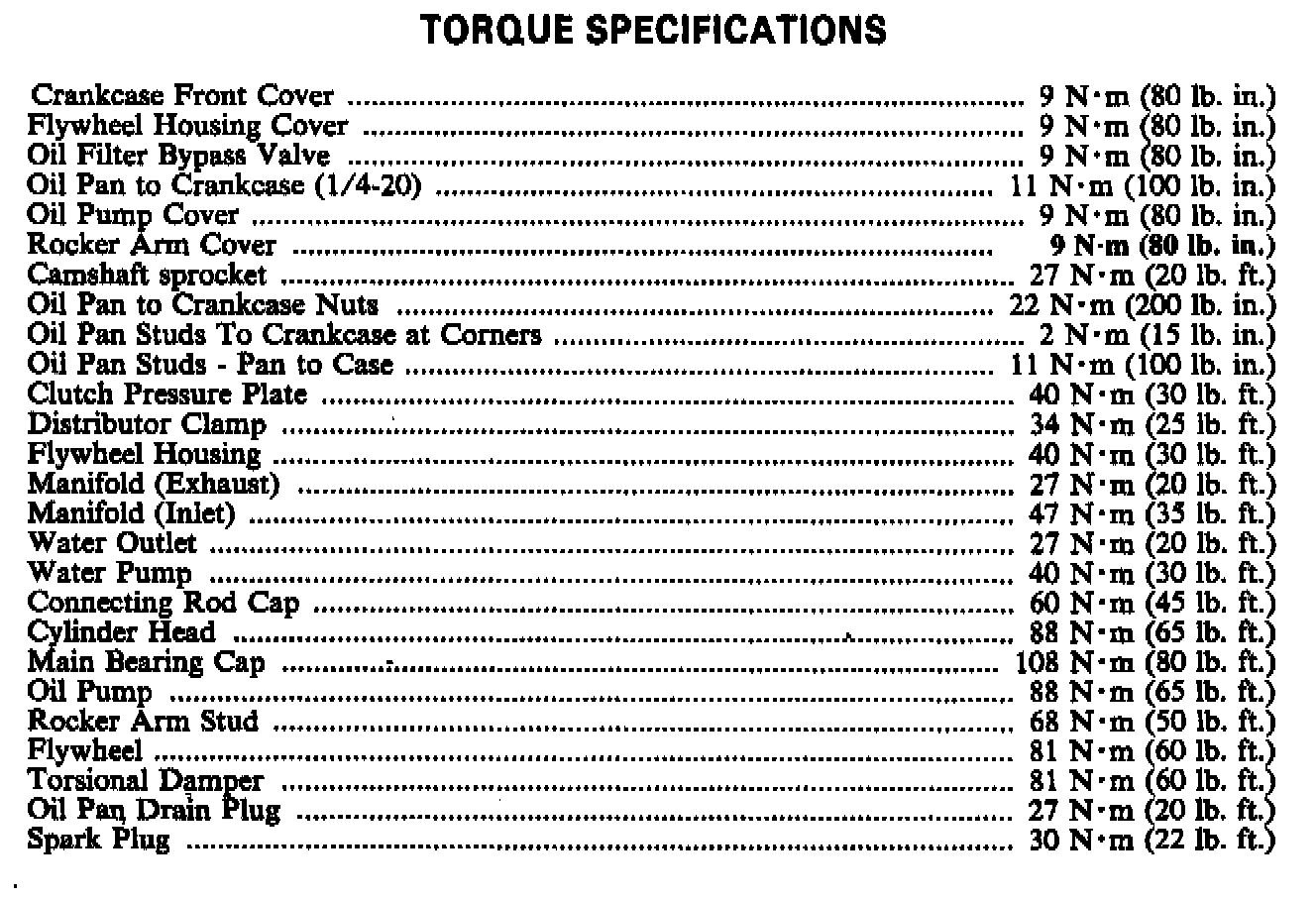

Torque Specifications:

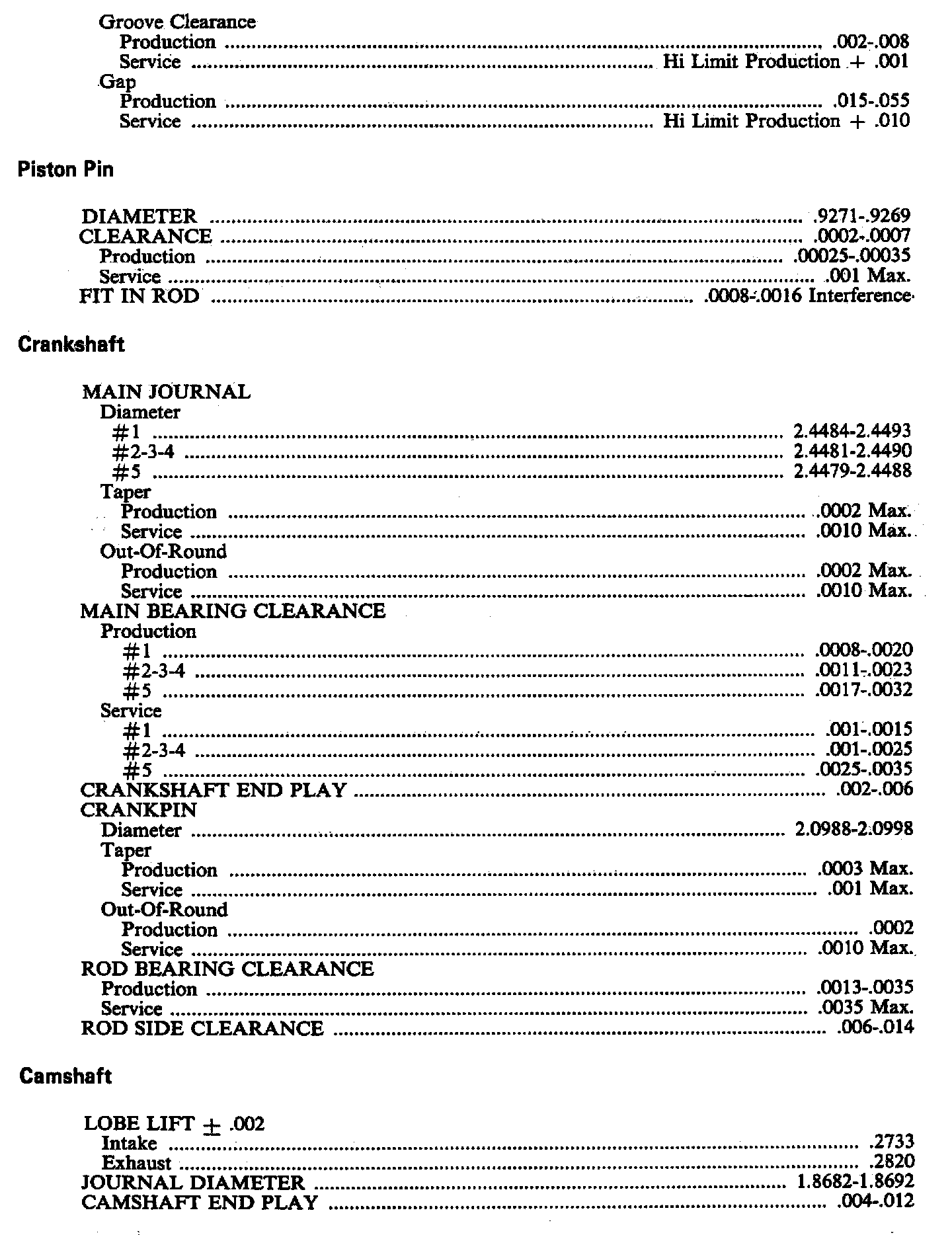

Engine Specifications:




Engine Specifictions:




Engine Specifications:









Cylinder Head Torque Sequence:
