Fuse Block Details
Fuse Block Details

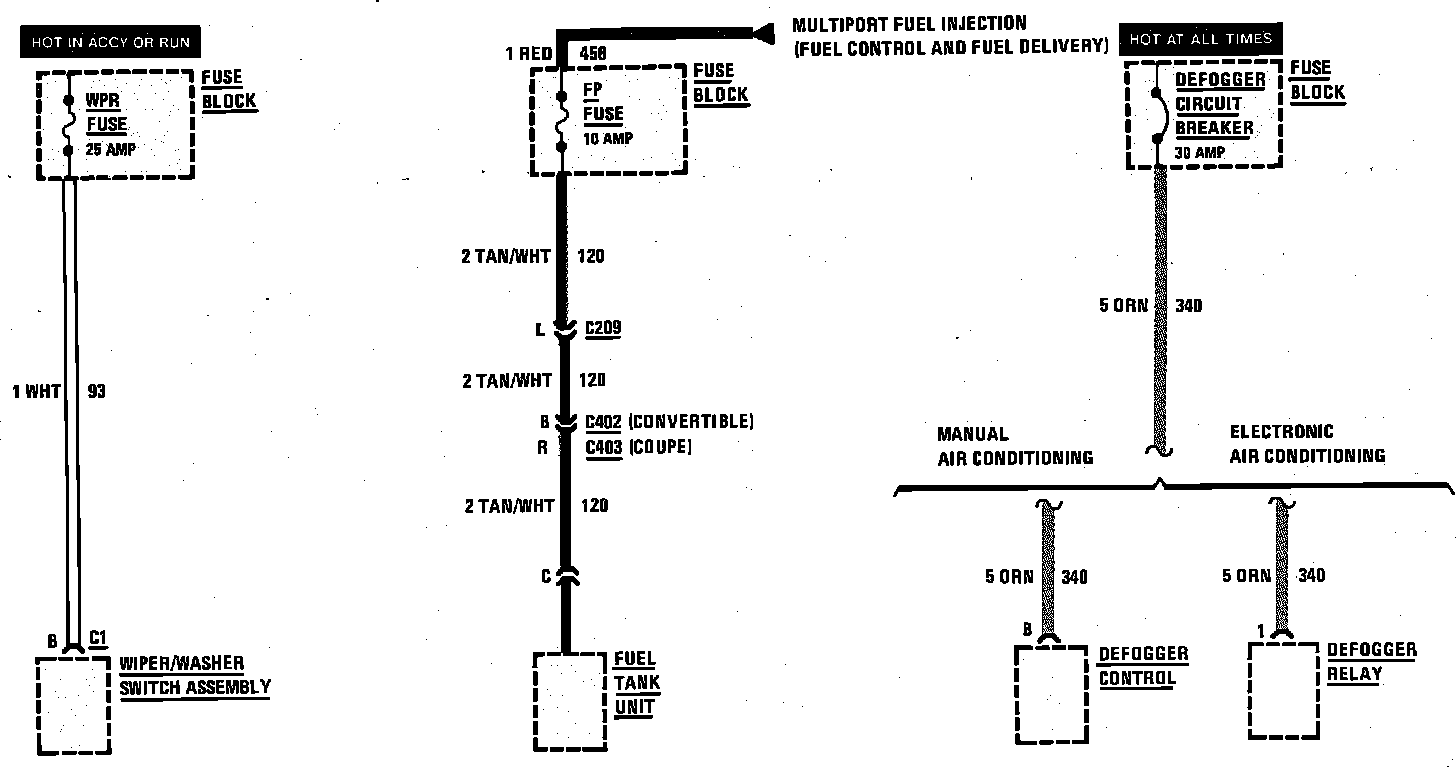

Fuse Block Details (Defogger Circuti Breaker, Fuel Pump Fuse & Wiper Fuse:
