Compressor HVAC

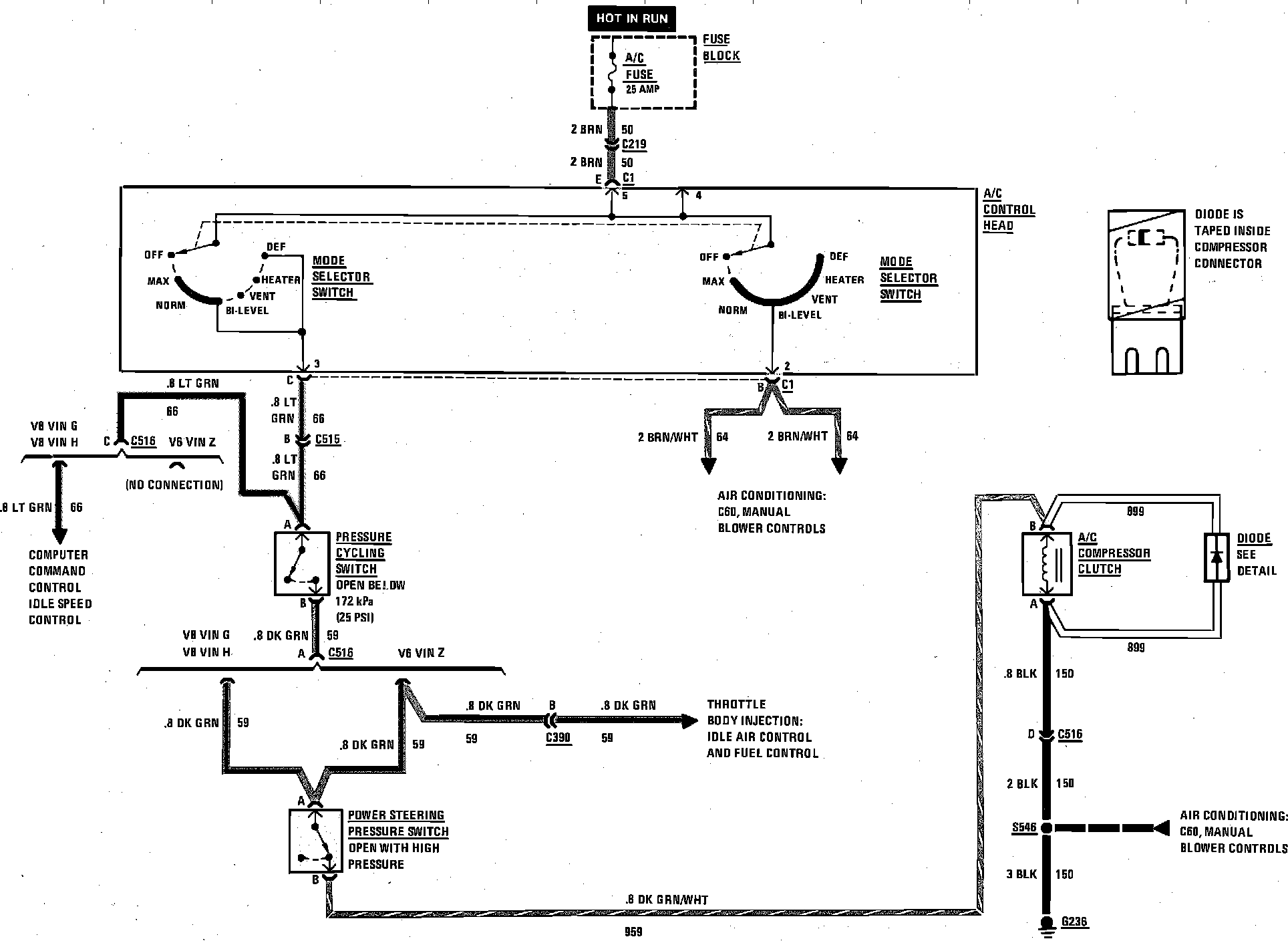

A/C Conditioning System Wiring Circuit (Compressor Circuits):

Air Conditioning Wiring Circuit (Compressor Control):
