Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1988
>>
Monte Carlo V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Blower Controls
Blower Controls

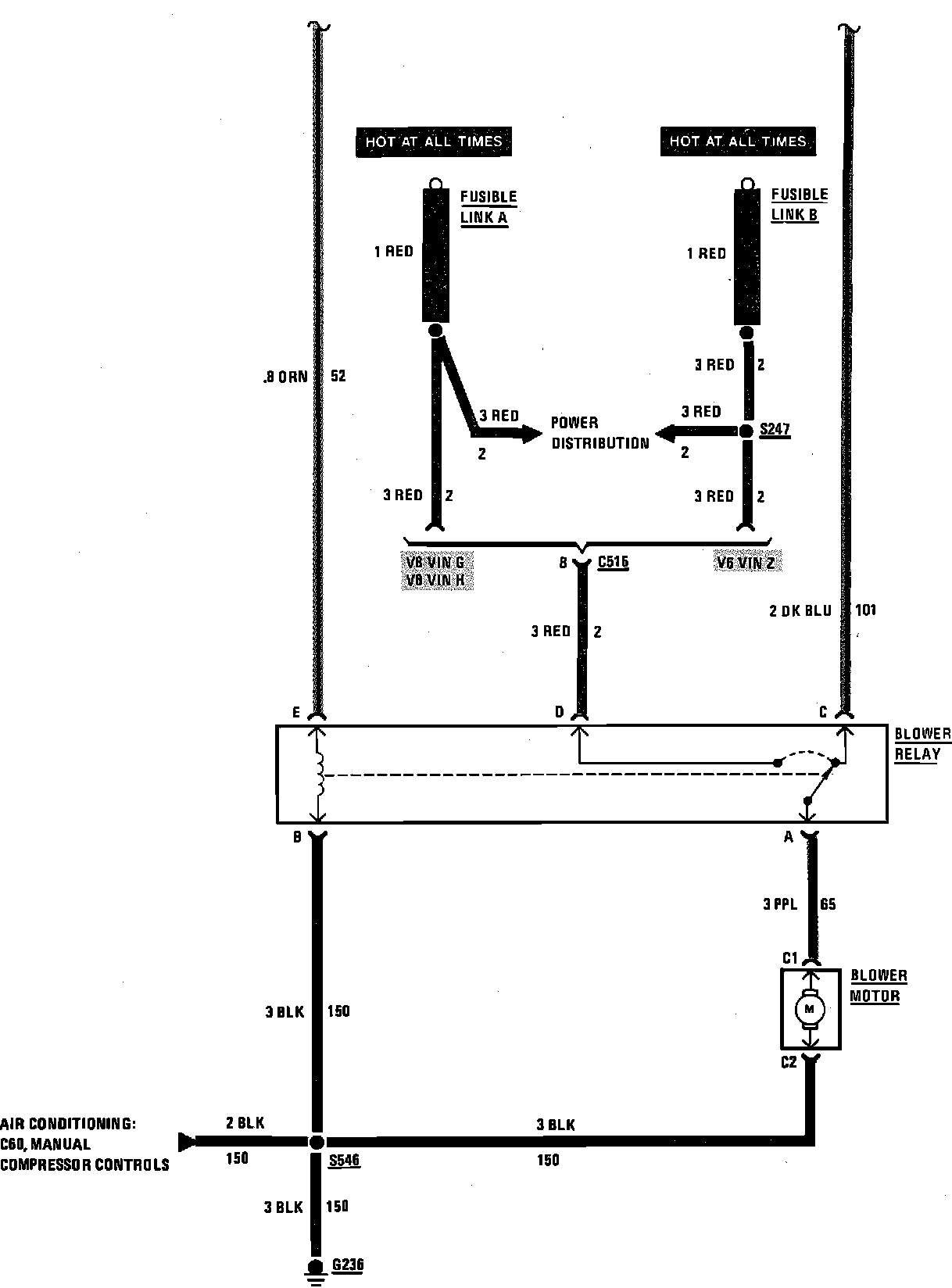

A/C Conditioning System Wiring Circuit (Blower Circuits) Part 1 of 2:
A/C Conditioning System Wiring Circuit (Blower Circuits) Part 2 of 2:
